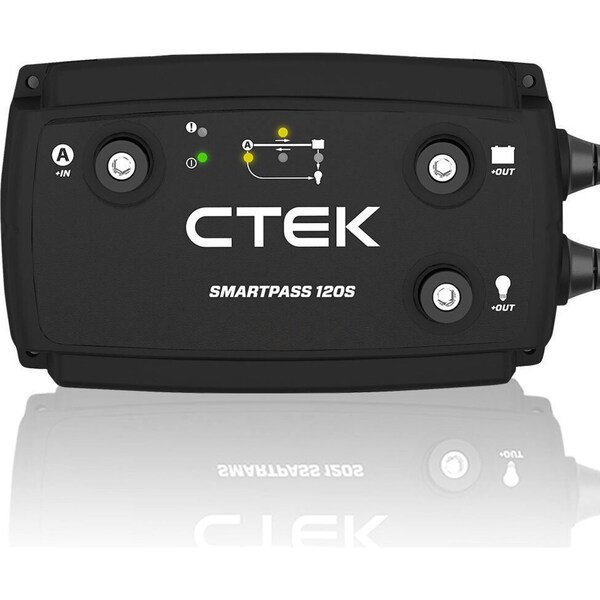

CTEK SMARTPASS 120S Power Management System 120A with Battery Starter Function, for Starter and Service Batteries, Smart Alternator Compatible

Smartpass 120S charges and supplies the service battery and equipment with 120A, separates critical equipment from non-critical equipment ensuring that radio, emergency lights and navigation systems always have power.

Smartpass 120S is a 120A Power Management Solution which distributes, controls and maximises the available energy from your alternator to power service batteries and consumers. SMARTPASS 120S handles all 12V batteries between 28-800Ah.

The Smartpass 120S’s Battery Guard function ensures that critical equipment such as radio, emergency lights and navigation systems always have power and take priority when the voltage on the service battery is low disconnecting non-critical consumers. The unit’s Battery Guard will protect your service battery from total discharge and built in over temperature protection reduces charge current before the battery temperature gets too high. Smartpass 120S is compatible with the D250SA and D250SE 20A on board chargers.

• Smart alternator compatible
• Delivers 120A for quick recharge of batteries 28-500Ah
• Compatible with D250SA and D250SE for the ultimate 140A power management solution
• Prioritizing critical consumers and supplies consumers directly from the alternator
• Start assistance function
• Battery separation eliminates diodes and VSR relays
• Fully automatic
• Maximizes battery life
• Battery Guard to protect your secondary battery from total discharge
• Dynamic over current protection to handle temporary inputs and outputs of up to 350A for fast charging
• Battery temperature protection for added safety
• Splash and dust proof (IP65)
• 2-year warranty

We may not be able to deliver to a very few remote areas. See restricted post codes list.

0800 - 0999, 2898 - 2899, 4875, 6161, 6798 - 6799, 7151 - 7154

• Brand: CTEK
• Model: Smartpass 120S
• Input: 11.5–23V, 120A max (350A temporarily for 10 seconds)
• Output: Max. 14.4V, 120A (350A temporarily for 10 seconds)
• Back Current Drain: Corresponding to less than 7Ah/month
• Ambient Temperature: -20˚C to +50˚C (- 4°F to +122°F)
• Battery Types: All types of lead-acid batteries, 12V, WET, MF, Ca/Ca, AGM, EFB, GEL, LiFePO₄
• Battery Capacity: 28-800Ah
• Warranty: 2 years
• Insulation Class: IP65

IN THE BOX

• 1 x CTEK Smartpass 120S

SIZE & WEIGHT

• Carton Weight: 0.9kg
• Product Dimensions (W x L x H): 11 x 19 x 6.5cm
• Product Weight: 0.7kg
