SKU: M7SRVDOM-RVSMA4PIN-CBLTRA
7" TFT LCD Monitor
- 800x480 Digital Screen, Crystal Clear Image
- 16:9/4:3 switch freely
- Resolution: 480TV lines
- The image supports to be rotated up and down, left and right
- Can connect to DVD / MP4 / Camera, etc.
Two Video Inputs, Reversing First
- Two video inputs, reversing first connect two cameras to the monitor. You can view one camera while driving and the 2nd camera will turn on automatically when reversing.
Compatible to 12V/24V
- This monitor can be used with Trucks / Caravans / Cars
Now Comes with 600TVL Camera
CCD Eyeball Reversing Camera
- With CCD image sensor made by sharp company
- 12 individual infrared (IR) LED to show clear images in low light especially at night circumstances.
- Heavy Duty CCD camera with hard metal cased, waterproof and mudproof.
CMOS Reversing Camera
- 150° wide angle, Sharp lens
- Waterproof & protection against dust
New Upgraded Model
The Image can be Rotated Up, Down, Left and Right
Trailer Cable Suzy Coil
- 5 PIN AP-TP20 metal connector with male and female connector
- 4 PIN metal connector for CCD Camera
Waterproof Function
- With elasticity length from 2 meters to 4 meters
Wiring Diagram
Installation Diagram
- Connect and disconnect the cable between your trailer/caravan easily.
- Easy to install. You can D.I.Y. as long as you can locate your vehicle's 12V/24V power source.
Camera Dimensions
CMOS Camera Dimensions
Product Dimensions and Labels
- * No Batteries included
MORE INFORMATION

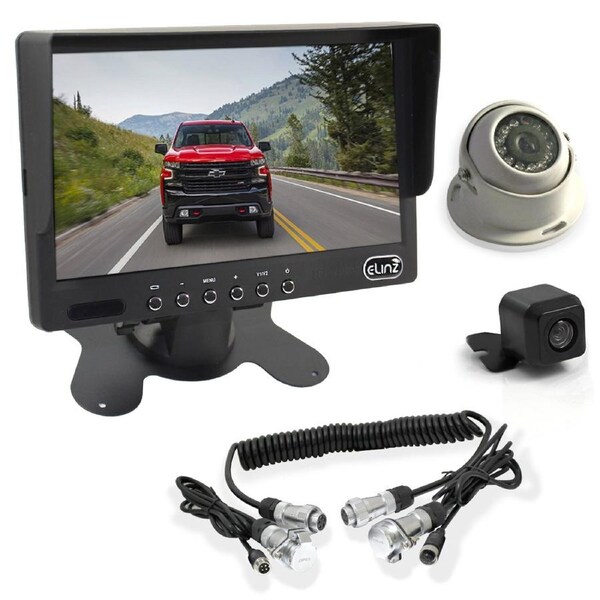

Elinz Caravan Two Camera 4PIN System Trailer cable 7" Monitor HD 12V/24V Reversing CCD Camera Kit
7" TFT LCD HD monitor that can be connected up 2 cameras. The image can be rotated up and down, left and right. This monitor can be used with Trucks / Caravans / Cars. Two video inputs, reversing first connect two cameras to the monitor. You can view one camera while driving and the 2nd camera will turn on automatically when reversing.
PRODUCT HIGHLIGHTS
- 7" TFT LCD Monitor
- 800x480 Digital Screen, Crystal Clear Image
- 16:9/4:3 switch freely
- The image supports to be rotated up and down, left and right
- Can connect to DVD / MP4 / Camera, etc.
- Two Video Inputs, Reversing First
- The image can be rotated up and down, left and right
- Two video inputs, reversing first connect two cameras to the monitor. You can view one camera while driving and the 2nd camera will turn on automatically when reversing.
- Compatible to 12V/24V
- This monitor can be used with Trucks / Caravans / Cars
ITEM DESCRIPTION
- 800*480 Digital Screen, Crystal Clear Image
- Sunshade design
- Two way video input
- Suitable for 12V/24V vehicle
- The image can be rotated up and down, left and right
- Can connect to DVD/MP4/Camera etc
- Camera sensor: Sharp 1/4" CCD image sensor
- Resolution: 480TV lines
- Waterproof rating:IP67- IP68
- TV System : PAL/NSTC
WHAT'S INCLUDED
1. 1x 7" TFT LCD Monitor
2. 1x Dome Reversing Camera
3. 1x CMOS Reversing Camera
4. Trailer Cable Suzy Coil
5. Power Cords
6. 1x 5M Cable
7. 2x 10M Cable
8. User Manual
9. 1x Remote ( * No Batteries included )
