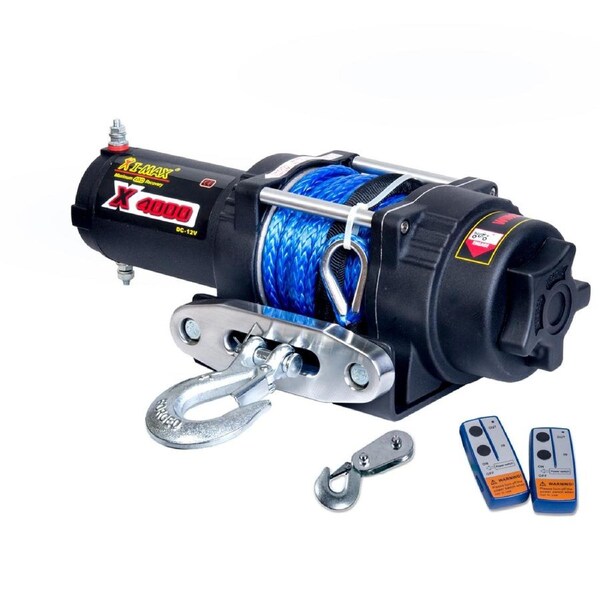

Wireless Synthetic Rope Electric Winch 1814kg 12V

Highest performance and reliability I-MAX ATV 4000lbs winch make them a perfect match for the serious off-roader. All winches deliver superior duty cycle with improved motor life. A high quality of a winch from I-MAX in a lower price bracket.

• We ship to most areas in Australia. (excludes some region/remote areas in WA/NT, for more details please contact us)

• We use registered shipping on most packages. 99% of products are dispatched within 1-2 business day, please allow 2-14 business days for delivery. (Once in the hands of the couriers, freight times are outside of our control, as Australia is a large and diverse country)

• A tracking number will be e-mailed once the item is dispatched, shipping record can be tracked online.

• If no one is home to sign for the article; a card will be left and the item will need to be picked up from the local depot.

Change of Mind Returns:

We want you to love your product so if you are not completely satisfied with your purchase let us know.

All products come with a 30 day change of mind policy. If at any time within the first 30 days from purchase date you are not completely satisfied with your order, please contact us via your Account for return approval. Once received and inspected, we will facilitate an agreed resolution.

Please Note:

• Postage is paid by the customer

• The product must be returned in the original packaging, accessories included

• We do not accept responsibility for return items until they reach our warehouse, so we strongly recommend using tracking and/or insurance for the delivery

• Fees may apply

Warranty Claims:

Most of our products are supported by a 60 days warranty. This warranty covers all manufacturer faults with the product. Some of our products may have a different warranty period, please check the product description for this. Should an issue arise with your order, please contact us via your Account to raise a warranty claim.

• Wireless Synthetic Rope Electric Winch 1814kg 12V
• Three-stage planetary gear system for fast line speed and sure hold
• Waterproof and corrosion resistant
• High tensile synthetic rope
• Power in and power out for
• Positive load control
• Automatic load - holding
• Braker for maximum safety
• Power in and power out
• Automatic load holding brake
• Big power motor
• Free spooling clutch for fast wire rope payout
• Quiet efficient full metal 3-stage planetary gear box
• Waterproof winch
• Heavy duty sealed contactor
• Alloy hawse fairlead - Roller fairlead does not attach directly to the winch
• Rated line pull: 4000Lbs (1814kg) single line
• Motor: DC 12V - 1.6HP/1.2KW output
• Gear train: 3 Stage planetary
• Gear ratio: 198:1
• Clutch: Sliding ring gear
• Braking action: Automatic in the drum
• Fairlead: 4-Way alloy hawse fairlead
• Dimensions:
  • Synthetic rope: 6mm x 10m
  • Drum size: 50mm x 76.5mm
  • Dimensions: 347.9mm x 116.2mm x 114mm
  • Bolt pattern: 124mm x 76mm
  • Net weight: 8.60kg
• Includes:
  • 1x I-MAX ATV4000 DC 12V Winch
  • 1x Alloy hawse fairlead
  • 1x Installation stand
  • 1x Clevis hook
  • 1x Set of bolts
  • 1x Control box
  • 2x Wireless remote control
  • 1x Hand remote control
  • 1x User Manual
• 12 Month warranty
