SKU: M48RV600SENSOR
4 Ultrasonic sensors
- Double CPU and advanced chipset for enhanced coverage and detection
Easy to Install
4.3” Digital Panel
- With 2 AV Inputs & 360 Rotation
600 TVL CMOS Reversing Cam
- Clear image Day & Night
170° Wide View Angle
- Clear view to help avoid accidents & injuries
Waterproof IP67
Range Distance Alarm 0-2.0M
Distance Barrier Display
- STOP warning appears when car is too close or near the barrier
Wiring Labels
Wiring Diagram
Monitor Labels
Product Dimensions
Product Views
MORE INFORMATION

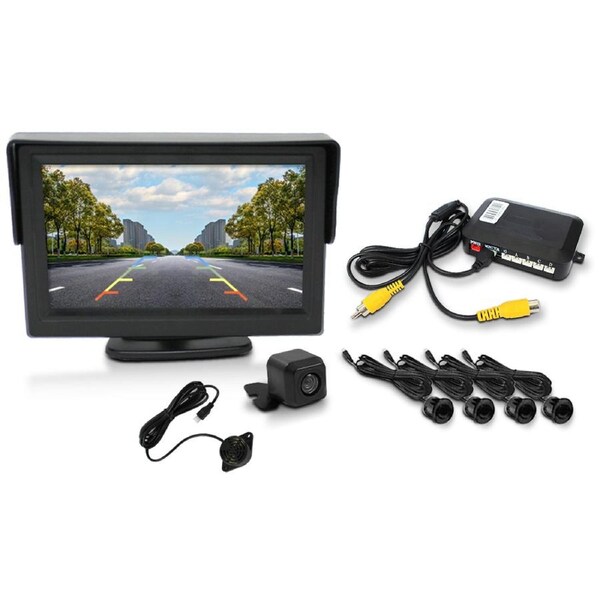

When we are driving our first priority is to reach our destination safe and on time. As part of driving, parking is really one of the problems encountered by many. To help you solve this problem, it has now arrived at Elinz. The New Reversing Camera with 4 parking sensors. This reverse camera package comes with 4.3" HD Monitor, a 170º CMOS reversing camera with a high resolution of 600 TV Lines and 4 Ultrasonic Parking Sensors that is suitable for 12V vehicles.
Installing this reverse camera system can help drivers avoid collision while driving or parking. The system has a state-of-the-art alarm that indicates the direction and the distance of the obstacle.
The parking sensor and rearview camera can help you save time, money and even dangerous accidents. Start making your driving experience safer and install the reversing camera monitor kit with 4 parking sensors.
PRODUCT HIGHLIGHTS
- 4 Ultrasonic Sensors
- Parking sensors are nearness sensors for vehicles that are intended to warn the driver of obstacles while parking or driving.
- 4 sensor system
- Double CPU and advanced chipset for enhanced coverage and detection (0-2.0m)
- The parking sensors will fit any make of car or 12V vehicle, van, caravan, trailer and horse boxes. (universal hole saw is included).
- Collision Avoidance System
- Security assistance that is used for safety in driving and parking .The scheme senses whether there is an obstacle through the Ultrasonic Sensor. It specifies the direction and the distance of the obstacle via alarm.
- Easy to install
- High Definition 4.3" Digital Panel with Brightness Adjustment
- 2 AV inputs
- It shows the rearview automatically when the reverse signal is induced
- 360 degree rotation for convenient visibility
- Adjustable brightness - This colour system can give you a clear rear view picture and help prevent an expensive accident while backing or driving.
- 600TVL Reversing Camera
- CMOS sensor
- 170° wide view angle
- Waterproof IP67
- IR night vision - Crystal clear view day or night
PRODUCT SPECIFICATIONS
Parking Sensor Specification
- Voltage: 9DCV-15DCV
- Rated voltage: 12DCV
- Power Cost Max: 1.5W
- Respond Distance: 0.4m-2.0m
- Alarm Distance: 0m-2.0m
- Sensor Diameter: 22mm
- Sensor angle: X, Y, 60 °C
- Work temperature -30°C~+80 °C
- Alarm Type: Bi-Bi
- Alarm Volume: 65dB
Range Distance Alarm
- 1.6m~2.0m Mute
- 1.0m~1.5m Bi------Bi------
- 0.6m~0.9m Bi---Bi---Bi---
- 0.1m~0.3m BiBiBiBiBi--
Monitor Specification
- Screen size: 4.3"
- Image Sensor: 1/3 CMOS Colour Image Sensor
- Resolution: 520 TV Line
- Video Signal: PAL/NTSC
- Dynamic Guidance Trajectory: Embedded
- Video Output: 1.0vp-p.75ohm
- Power Supply: DC9~16V
600TVL Camera Specification
- Photosensitive chip: MCCD (CMOS 1/4)
- Image System: NTSC or PAL
- Resolution: 960X576 (540,000 pixels)
- Resolution: 600 TV line
- Video output impedance: 1.0Vp-p 75ohm
- Signal to noise ratio: > 45dB
- Working power: DC 12V
- Working temperature:-20 °C ~ 60 °C, humidity up to 95%
- Storage temperature:-40 °C ~ 90 °C, humidity up to 95%
- Lens angle level: > 170°
- Waterproof rating: IP67
- Minimum lighting: 0.1Lux
WHAT'S INCLUDED
1. 1x 4.3" HD Digital LCD Monitor with mount
2. 1x Central Control Box & 1x Monitor Video Cable
3. 1x 600TVL Rear View Camera
4. 1x Sound Alert Indicator
5. 1x 5M Video Cable
6. 2x Power Cables
7. 1x Control Box Power Cable
8. 4x Parking Sensor
9. 1x Hole Saw
