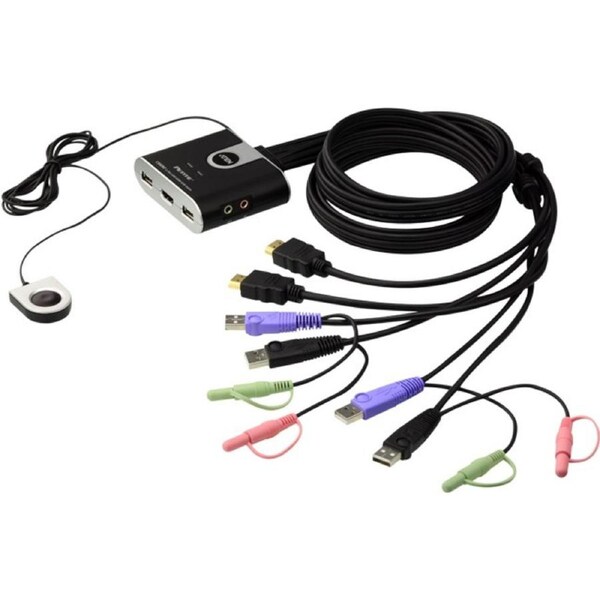

ATEN CS692 2-Port HDMI & USB Kvm Switch HDMI V1.3, Usb2.0, & Audio One HDMI Video Console Controls
The CS692 HDMI USB KVM Switch links two HDMI-enabled PCs or devices to a single USB keyboard, USB mouse, and HDMI display console. The CS692 Switch takes a giant step forward from prior cable KVM models in the Petite series, by offering full HDMI functionality, USB 2.0 peripheral sharing (via a USB hub attached to the USB mouse port), and a firmware upgrade function that allows you to keep up with latest available versions.
Featuring an unbeatable combination of HDMI functionality, USB 2.0 peripheral sharing convenience, gaming keyboard support, and enhanced user-friendly operations, the CS692 allows users to keep up with the latest innovations in desktop multimedia applications.
- One HDMI video console controls two USB computers
- HDMI 1.3a compatible; HDCP compatible
- Computer selection via remote port selector, hotkeys,and USB mouse
- Audio-enabled - full bass response provides a rich experience for 2.1 channel surround sound systems
- Independent switching of the KVM and Audio focus - one computer has the KVM focus and the other the Audio focus1
- Multiplatform support - Windows, Mac, Linux
- Compact design, built-in all-in-one cables (2 x 1.2 m)
- Superior video quality - up to 1920 x 1200; 1080p
- Compatible with widescreen LCD monitors
- Video DynaSync™ - exclusive ATEN technology eliminates boot-up display problems and optimizesresolution when switching between ports
- Power on detection - if one computers is powered off, the CS692 will automatically switch to the other computer
- Supports gaming and multimedia keyboards
- Supports multifunction and wireless keyboards and mice
- Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
- Mac keyboard support and emulation2
- USB 2.0 mouse port can be used for USB hub and USB peripheral sharing3
- Non-Powered
- Firmware upgradable
Note:
- 1. HDMI audio through the HDMI monitor's built-in speakers cannot be switched independently.
- 2. PC keyboard combinations emulate Mac keyboards. Mac keyboards work only with their own computers.
- 3. May require an additional power adapter.
| Function_ | CS692 | ||
| Computer Connections_ | 2 | ||
| Console Connections_ | 1 | ||
| Port Selection_ | Remote Port Selector, Mouse, Hotkeys | ||
| Connectors | Console Ports | Keyboard_ | 1 x USB Type A Female (Silver) |
| Video_ | 1 x HDMI Type A Female (White) | ||
| Mouse_ | 1 x USB Type A Female (Silver) | ||
| Speakers_ | 1 x Mini Stereo Jack Female (Green) | ||
| Mic._ | 1 x Mini Stereo Jack Female (Pink) | ||
| KVM Ports | Keyboard_ | 2 x USB Type A Male (Purple) | |
| Video_ | 2 x HDMI Type A Male (Black) | ||
| Mouse_ | 2 x USB Type A Male (Black) | ||
| Speakers_ | 2 x Mini Stereo Plug Male (Green) | ||
| Mic._ | 2 x Mini Stereo Plug Male (Pink) | ||
| LEDs_ | KVM_ | 2 (Green) | |
| Cable Length | KVM_ | 2 x 1.2 m | |
| Remote Port Selector_ | 1. 8 m | ||
| Emulation_ | Keyboard / Mouse USB | USB | |
| Video_ | 1080p; 1920 x 1200 | ||
| Scan Interval | 3, 5, 10, 20 secs. (default 5 secs.) | ||
| Power Consumption | _DC 5V, 2.65W | ||
| Environment | Operating Temp._ | 0-50ºC | |
| Storage Temp._ | -20-60ºC | ||
| Humidity_ | 0-80% RH, Non-condensing | ||
| Physical Properties | Housing_ | Plastic | |
| Weight_ | 0.41 kg | ||
| Dimensions (L x W x H)_ | 6.70 x 8.20 x 2.65 cm |
Weight: 0.531
