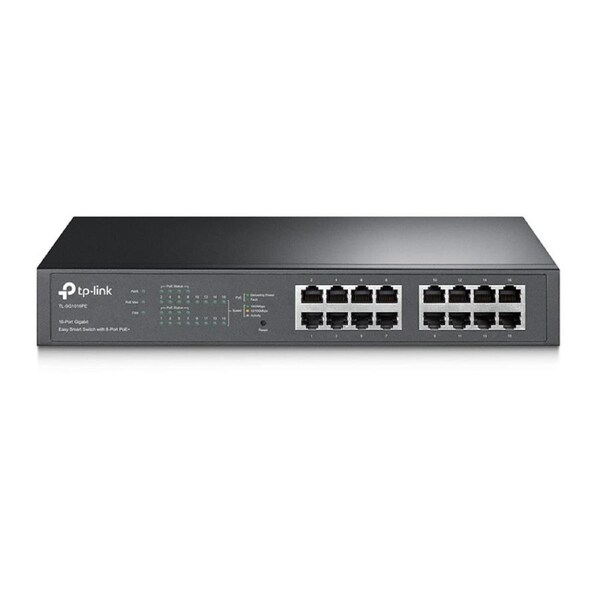

TP-Link TL-SG1016PE 16-Port Gigabit Smart Switch with 8-Port PoE+ Rack Mountable
TP-Link TL-SG1016PE 16-Port Gigabit Easy Smart Switch with 8-Port PoE+
- 16x 10/100/1000Mbps RJ45 ports
- Equipped with 8x PoE+ supported ports to transfer data and power over a single cable
- With a total PoE power budget of 150 W,* up to 30 W per port
- Works with IEEE 802.3af/at compliant devices
- Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto recovery
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and management utility simplify configuration
HARDWARE FEATURES
- Standards and Protocols :IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
- Interface :16x 10/100/1000 Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX - Network Media :10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m) - Fan Quantity :1
- Physical Security Lock :Yes
- PoE Ports (RJ45) :Standard: 802.3 af/at compliant
PoE Ports: Port 1 to Port 8
PoE Power Budget: 150 W - Dimensions ( W x D x H ) :11.6x7.1x1.7 in (294x180x44 mm)
- Mounting :Rack Mountable/ Desktop
- Max Power Consumption :8.8 W (220 V/50 Hz with no PD connected)
172.26 W (220 V/50 Hz with 150 W PD connected) - Max Heat Dissipation :30.01 BTU/h (220 V/50 Hz with no PD connected)
587.41 BTU/h (220 V/50 Hz with 150 W PD connected)
PERFORMANCE
- Switching Capacity :32 Gbps
- Packet Forwarding Rate :23.8 Mbps
- MAC Address Table :8K
- Packet Buffer Memory :4.1 Mbit
- Jumbo Frame :10 KB
SOFTWARE FEATURES
- Quality of Service :Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control - L2 Features :IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention - VLAN :Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN - PoE :PoE Management
Extend Mode
PoE Auto Recovery - Management :Web-based GUI
Easy Smart Configuration Utility - Transmission Method :Store-And-Forward
OTHERS
- Certification :FCC, CE, RoHS
- Package Contents :TL-SG1016PE
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet - System Requirements :Microsoft® Windows® for running Utility
- Environment :Operating Temperature: 0-40 ? (32-104 ?)
Storage Temperature: -40-70 ? (-40-158 ?)
Operating Humidity: 10-90% non-condensing
Storage Humidity: 5-90% non-condensing
