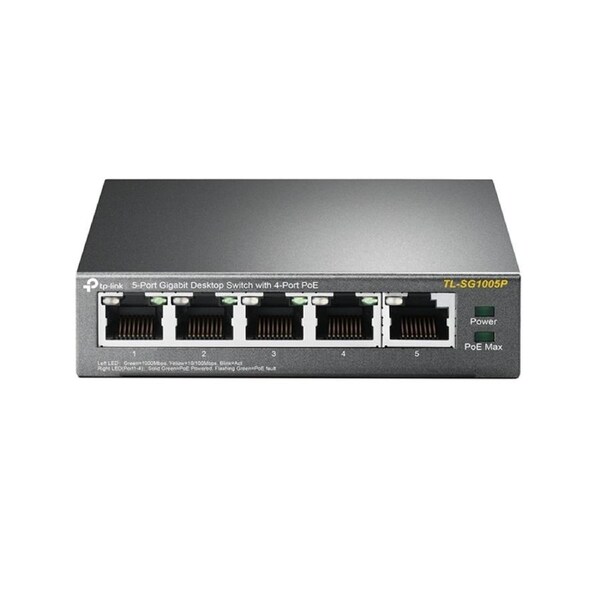

TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE 1000Mbps QoS

TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE

• 5 10/100/1000Mbps RJ45 ports
• With four PoE ports, transfers data and power on one single cable
• Working with IEEE 802.3af/at compliant PDs, expands home and office network
• 802.1p/DSCP QoS enable smooth latency-sensitive traffic
• Supports PoE Power up to 30W for each PoE port
• Supports PoE Power up to 56W for all PoE ports
• Requires no configuration and installation

HARDWARE FEATURES

• Interface :5 10/100/1000Mbps RJ45 Ports
  AUTO Negotiation/AUTO MDI/MDIX
• Network Media :• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100? STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100? STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100? STP (maximum 100m)

• Fan Quantity :Fanless
• External Power Supply :External Power Adapter(Output: 48VDC / 1.25A)
• Packet Forwarding Rate :7.44 Mpps
• PoE Ports (RJ45) :Standard: 802.3 at/af compliant
  PoE Ports: Port1- Port4
  Power Supply: 56W


• Mac Address Table :2K
• Jumbo Frame :16 KB
• Switching Capacity :10 Gbps
• Dimensions ( W x D x H ) :3.9x3.9x1.0 in (99.8x98x25 mm)
• Max Power Consumption :3.95W(220/50Hz. no PD connected)
  64.44W(220/50Hz. with 56W PD connected)
• Max Heat Dissipation :13.48BTU/h(no PD connected)
  219.87BTU/h(with 56W PD connected)

SOFTWARE FEATURES

• Advanced Features :Compatible With IEEE 802.3 at/af Compliant PDs
  Priority Function
  Mac Address Auto-Learning And Auto-Aging
  IEEE 802.3x Flow Control
  802.1p/DSCP QoS
  IGMP Snooping


• Transfer Method :Store-And-Forward

OTHERS

• Certification :FCC, CE, RoHS
• Package Contents :• TL-SG1005P
  • Power Adapter
  • Installation Guide
• Environment :• Operating Temperature: 0-40 ? (32-104 ?);
  • Storage Temperature: -40-70 ? (-40-158 ?)
  • Operating Humidity: 10-90% RH non-condensing
  • Storage Humidity: 5-90% RH non-condensing
