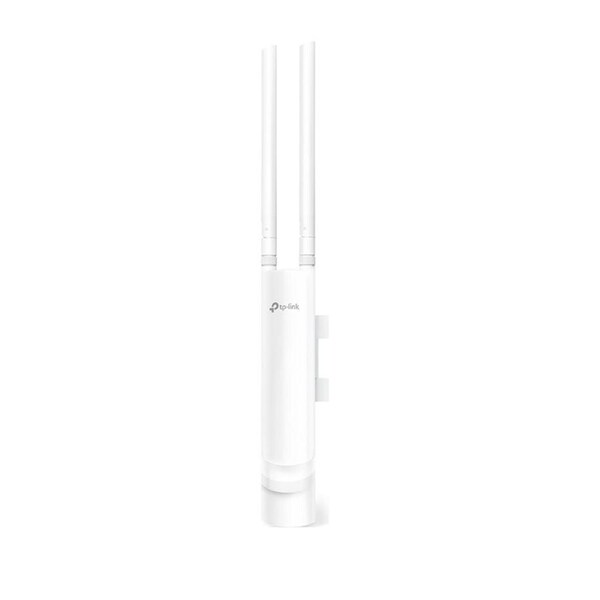

TP-Link EAP225-Outdoor Omada 1200Mbps Wireless MU-MIMO Gigabit Access Point

TP-Link EAP225-Outdoor AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point

• Durable, weatherproof enclosure for outdoor Wi-Fi applications
• Up to 1200Mbps with 2x2 MIMO technology
• Omada Mesh Technology enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient
• Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations
• High transmission power and high gain antennas provide a long-range coverage area
• Cloud centralised management and Omada app for ultra convenience and easy management
• Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
• 802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installationLearn more about Controller Software >?

HARDWARE FEATURES

• Interface :1x Gigabit Ethernet (RJ-45) Port (Support 802.3af/at PoE (Alternative A) and Passive PoE)

• Button :Reset
• Power Supply :• 802.3af/at PoE (Alternative A)
  • 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
• Power Consumption :10.5 W

• Dimensions ( W x D x H ) :• 215.7x45x37.7 mm (without antenna & mounting kit)
  • 403.8x90.7x55.2 mm (with antenna & mounting kit)
• Antenna :• 2.4 GHz: 2x 3 dBi
  • 5 GHz: 2x 4 dBi

• Weatherproof Enclosure :IP65
• Mounting :Pole/Wall Mounting (Kits included)


WIRELESS FEATURES

• Wireless Standards :IEEE 802.11a/b/g/n/ac

• Frequency :2.4GHz, 5GHz
• Signal Rate :• 802.11ac: 5G:6.5 Mbps to 867 Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78 Mbps to 300 Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)
  • 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
  • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • 802.11b: 1, 5.5, 11Mbps
  • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• Wireless Functions :• Multiple SSIDs?Up to 16 SSIDs, 8 for each band?
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control ?Adjust Transmit Power on dBm?
  • QoS(WMM)
  • MU-MIMO
  • Seamless Roaming*
  • Omada Mesh*
  • Airtime Fairness
  • Beamforming
  • Band Steering
  • Load Balance
  • Rate Limit
  • Reboot Schedule
  • Wireless Schedule
  • Wireless Statistics based on SSID/AP/Client
• Wireless Security :• Captive Portal Authentication*
  • Access Control
  • Wireless Mac Address Filtering
  • Wireless Isolation Between Clients
  • SSID to VLAN Mapping
  • Rogue AP Detection
  • 802.1X Support
• Transmission Power :• CE: <20 dBm (2.4 GHz, EIRP), <27 dBm(5 GHz, EIRP)
  • FCC: <23 dBm (2.4 GHz), <22 dBm(5 GHz)

MANAGEMENT

• Omada App :Yes
• Centralized Management :• Omada Cloud-Based Controller
  • Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
• Cloud Access :Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
• Email Alerts :Yes
• Management MAC Access Control :Yes
• SNMP :v1, v2c
• System LoggingLocal/Remote Syslog :Yes
• SSH :Yes
• Web-based Management :Yes
• L3 Management :Yes
• Multi-site Management :Yes
• Management VLAN :Yes
• Zero-Touch Provisioning :Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS

• Certification :CE, FCC, RoHS
• Package Contents :• Access Point EAP225-Outdoor
  • Passive PoE Adapter
  • Power Cord
  • Mounting Kits
  • Installation Guide
  • Waterproof Ruber Insert
  • Waterproof Antenna
• System Requirements :Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
• Environment :• Operating Temperature: -30-70 ? (-22-158 ?)
  • Storage Temperature: -40-70 ? (-40-158 ?)
  • Operating Humidity: 10-90% RH non-condensing
  • Storage Humidity: 5-90% RH non-condensing
