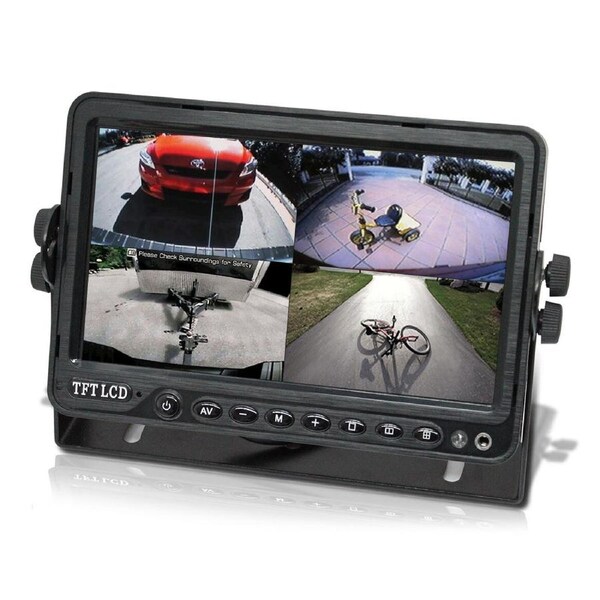

Elinz 7" DVR Splitscreen Monitor 12V 24V 4 AV Inputs
7" DVR Splitscreen Monitor 12V 24V 4AV Inputs 800x480
SKU: DVR7N
7 Inch Quadscreen Digital TFT Panel
- 7 inch quadscreen digital panel with resolution 800*R.G.B*480. Monitor has 4 Channels that can simultaneously record live full time.
Real Time Recording
- It allows you to record real time and can see objects on their original places or position.
- You may easily control DVR using the remote control.
3 Video Input + 1 Audio Video Input
- V1/V2/V3/V4 switching - Can be connected up to 4 cameras, cameras can be powered up by the monitor, no extra power source required.
- Reversing camera image can show up automatically on the screen when reversing gear is induced by connecting the trigger wire to the reversing light.
- All cameras can be shown on the screen at all times when driving, perfect for truck or caravan that need to monitor the rearview all the time.
- Has only 1 audio video input, it should be plugged to Ch1 for audio video input to work
Local Playback
- Locally playback in channel 1 or 4 channels
Save Recordings in SD Card
- Camera recordings from the 1 Audio Video input are to be saved in SD card and cannot be played on the monitor.
- It can support up to 256GB SD card. (SD card not included)
Note: Monitor do not have built-in speakers
Bracket Screw Lock
- With the bracket screw lock, it can hold the monitor in placed
Rotational Angle Adjustment
- You can adjust monitor view depending on your preference
Remote Control
- * No Batteries included
Button Panel Labels
Wiring Diagram
Image Modes
Menu Operation Instruction
Product Dimensions
MORE INFORMATION
This 7” DVR reversing camera monitor is ideal for large vehicle where viewing for more than one camera at the same time is essential. It is recommended for buses, trucks, caravans and heavy equipment vehicles
This monitor offers the ability to show the images of four cameras at once on the screen. This can be used on both 12V or 24V vehicles.
*This system includes Monitor only. Reversing cameras, SD card and cables are sold separately.
PRODUCT HIGHLIGHTS
- 7 Inch Quadscreen Digital TFT Panel
- 7 inch quadscreen digital panel with resolution 800*R.G.B*480. Monitor has 4 Channels that can simultaneously record live full time.
- Real Time Recording
- It allows you to ecord real time and can see objects on their original places or position
- You may easily control DVR using the remote control.
- 3 Video Input + 1 Audio Video Input
- V1/V2/V3/V4 switching - Can be connected up to 4 cameras, cameras can be powered up by the monitor, no extra power source required.
- Reversing camera image can show up automatically on the screen when reversing gear is induced by connecting the trigger wire to the reversing light.
- All cameras can be shown on the screen at all times when driving, perfect for truck or caravan that need to monitor the rearview all the time.
- Has only 1 audio video input, it should be plugged to Ch1 for audio video input to work
- Local Playback
- Locally playback in channel 1 or 4 channels.
- Save Recordings in SD Card
- Camera recordings from the 1 Audio Video input are to be saved in SD card and cannot be played on the monitor.
- It can support up to 256GB SD card. (SD card not included)
Note: Monitor do not have built-in speakers
- Bracket Screw Lock
- With the bracket screw lock, it can hold the monitor in placed.
- Rotational Angle Adjustment
- You can adjust monitor view depending on your preference.
ITEM DESCRIPTION
- 7 inch digital TFT panel
- Aspect ratio:16:9 image
- Resolution:800*R.G.B*480
- Monitor controlled by buttons on panel
- DVR controlled by the remote
- 4 Channels simultaneously to full time live record
- System: PAL & NTSC Auto-switching
- Video decode H.264
- Audio decode ADPCM
- Recording by manually: time setting, alarm and moving detect
- Video search: time retrieval, fact retrieval, channel retrieval
- 3 Video Input + 1 Audio Video Input
- Full image/4 images adjustable
- Picture adjust with single and quad pictures
- Recording saved to SD card (support up to max 256gb sd card, sd card not included, to be purchased separately)
- Recording speed PAL:25 FPS NTSC:30 FPS
- Local playback in channel 1 or 4 channels
- Alarm in:4 switching value (Optional)
- Interface for saving:1 SD card slot
- One way ignition signal
- 8V/35V power supply
WHAT'S INCLUDED
1. 1x 7" Quadscreen Digital Monitor
2. 1x Sun Shade
3. 1x Remote (*No Batteries included)
4. 1x Power Cable
5. 1x User Manual
