SKU: RVROOF10M

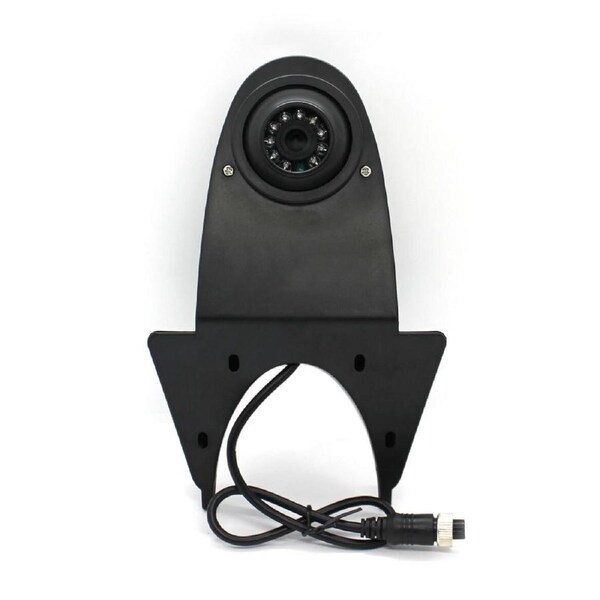

- This camera uses 1/3 SONY CCD Sensor to provide excellent image clarity without distortion.
- Offers a resolution of 600TV lines, which means you can get very good video image.
- Universal rear camera with ball n' socket housing for versatile view angle adjustment designed specifically to fit most commercial vans. With extended frame it can provide better view and let you see details behind your vehicles and avoid backup accidents.
- Camera is protected from water and dust ingress, it can effectively prevent water from penetrating into the camera.
- With 10 infra-red lights provide a great picture at night.
- Camera is equipped with a 120Îç viewing angle with 6 layered all glass lens perfect for checking unseen blind spots
- Conveniently and securely install on delivery and commercial Vans using 4 PIN cable to connect the monitor to the camera.
- One cable solution deals with both power and signal transmission.
- Includes 10m 4PIN cable. Do not settle for other cheaper van camera that uses RCA connectors which are not secured.
- This reverse camera works on both 12V and 24V vehicles
- Can also be connected to in dash car head unit and other monitors that use RCA connection. RCA24PIN adaptor is required(not included).
Safety and convenience are both important especially on the road. In driving larger vehicles it is harder than the usual sedan cars especially in parking and backing up.
We got great solution and prevention for unwanted events like backing over a fixed object that had been placed behind the vehicle, accidentally hurt kids, family members or pedestrians. This roof mount reversing camera will be a good help. In installing this 4PIN CCD rearview camera youŠ-Èll have a better view when backing up.
It just not helps save lives but also saves money in your pocket. Not just the camera is made durable and sturdy, it has excellent image clarity as it uses a SONY CDD image sensor with 600TVL resolutions that can provide you clear videos.
This universal roof mount revers camera can be installed on trucks, vans, caravans and bus and it can be connected to 4PIN monitors as it comes with 10M 4PIN cable. With 10 IR LED lights you can still have a clear vision at night.
You donŠ-Èt even need to worry on different weather conditions as this camera is rated IP68 which means it is protected from water and dust ingress, it can effectively prevent water from penetrating into the camera.
ThereŠ-Ès more to know about this camera and it can be very useful on day to day driving.
- SONY CCD Sensor
- This camera uses 1/3 SONY CCD Sensor to provide excellent image clarity without distortion.
- 600TVL Resolution
- Offers a resolution of 600TV lines, which means you can get very good video image.
- Universal Roof Mount Camera
- Universal rear camera with ball n' socket housing for versatile view angle adjustment designed specifically to fit most commercial vans. With extended frame it can provide better view and let you see details behind your vehicles and avoid backup accidents.
- IP68 Waterproof
- Camera is protected from water and dust ingress, it can effectively prevent water from penetrating into the camera.
- Night Vision
- With 10 infra-red lights provide a great picture at night.
- 120Îç Viewing Angle
- Camera is equipped with a 120Îç viewing angle with 6 layered all glass lens perfect for checking unseen blind spots
- 4PIN Connection
- Conveniently and securely install on delivery and commercial Vans using 4 PIN cable to connect the monitor to the camera.
- One cable solution deals with both power and signal transmission.
- Includes 10m 4PIN cable. Do not settle for other cheaper van camera that uses RCA connectors which are not secured.
- Compatible to 12V & 24V Vehicles
- This reverse camera works on both 12V and 24V vehicles
- Can be Connected to Headunit
- Can also be connected to in dash car head unit and other monitors that use RCA connection. RCA24PIN adaptor is required(not included).
- Sensor: 1/3 Sony CCD
- Resolution: 600TVL
- Lens: 1.7mm
- Min Illumination: 0Lux (LED ON)
- IR LED: 10pcs
- Night Vision Distance: 35ft
- Waterproof Rating: IP68
- Viewing Angle: 120Îç
- Rated Voltage: 12V
- Operating Temperature : -20Îç~+70ÎçC
- Microphone: n/a
- 1x CCD Roof Mount Reversing Camera
- 1x Adhesive
- 4x Screws
- 1x 10m 4PIN cable
