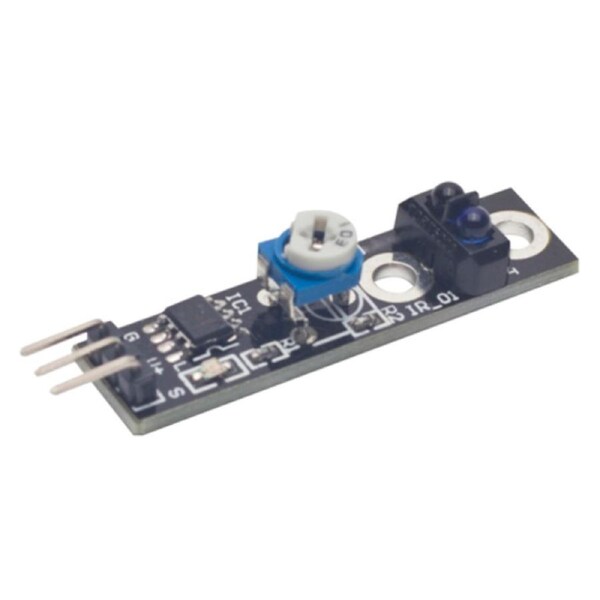

This module measures the reflectivity of a surface with an infrared emitter/detector pair. The output goes to high whenever the reflectivity exceeds the threshold value, which can be adjusted with the onboard potentiometer.
• Output electrical level signal: Active Low
• VCC/OUT/GND pin connector
• Power Supply: 2.5-12V
• Working current: 18-20mA at 5V
Please download above PDF for wiring instructions and Sample Code
