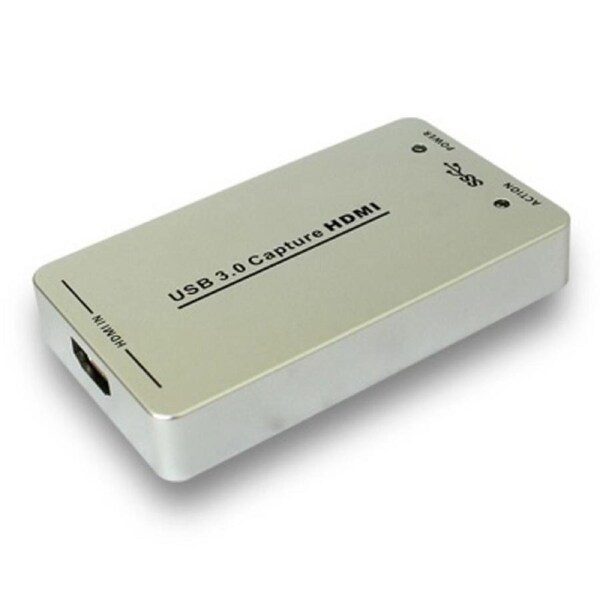

Capture up to 1920x1080 resolution (1080p) at 60Hz with hardware accelerated up-scaling / down-scaling. It can capture one single channel HD HDMI video signals and output video signal up to 1080p/60hz. It automatically determines input video format and converts it to the specified output size and frame rate and converts input audio formats to 48 KHz PCM stereo audio
This USB Capture Box is compatible with UVC video capture and YUV 422 video output. Performs frame-rate conversion and de-interlacing in real-time with its own hardware, taking the processing load off your computer's CPU. The UAC is compatible with HDMI audio capture and 48KHz PCM audio output
Does not need to install a driver and is truly plug and play! Compatible with windows, Linux, OS X operating systems. USB3.0 (300-350MB/s) throughput and is backwards compatible with USB2.0. It will automatically detect the input video formats as well as audio format and convert directly to 48KHz PCM audio
Specification:
- Host Interface: USB3.0, *300-350MB/s;USB2.0, *40MB/s
- Input Interface: HDMI interface
- Frame Rate: 25/29.97/30/50/59.94/60 fps
- Audio and video: capture standards of UVC and UAC
- support of OS: Windows 7;Windows Server 2008 R2;Linux (Kernel version 2.6.38 and above);OS X (10.8 and above)
- Software compatibility: Windows Media Encoder (Windows);Adobe Flash Media Live
- Encoder (Windows, OS X);Real Producer Plus (Windows);VLC (Windows, OS X, Linux);QuickTime Broadcaster (OS X);QuickTime Player (OS X);Wirecast (Windows,OS X);Potplayer(Windows)and etc.
- Development interface compatibility: DirectShow (Windows), DirectSound (Windows),V4L2 (Linux), ALSA (Linux) OS X (QuickTime)
- Size: 98x56x16 (L/W/H, mm)
- Power consumption: < 2.5W
- Working Temperature: 0-50 deg C
- Storage Temperature: -20-70 deg C
- Storage Humidity: 5%-90%
Package Includes:
- 1 x HDMI to USB3.0 Video Capture Dongle
- 1 x USB3.0 Cable
- 1 x User manual
Technical
HDMI Compliance: HDMI 1.4b
HDCP Compliance : HDCP 1.4
Video Bandwidth : 6.75 Gbps
Video Resolutions : up to 1080P@60Hz
Color Space : RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth : 10-bit, 12-bit
Audio Formats : PCM 2CH, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+
ESD Protection : Human body model - ±8kV (air-gap discharge) & ±4kV (contact discharge)
Connections
Inputs : 1x HDMI Type A [19-pin female]
Outputs : 1x USB 3.0 Type A [Propriety Data]
Mechanical
Housing : Aluminium Enclosure
Dimensions : 98mm [W] x 56mm [D] x 16mm [H]
Net Weight : 120g
Power Supply : USB Powered
Power Consumption (Max) : 2.5W
Operation Temperature : 32 - 104°F / 0 - 40°C
Storage temperature : -4 - 140°F / -20 - 60°C
Relative Humidity : 20 - 90% RH (no condensation)
