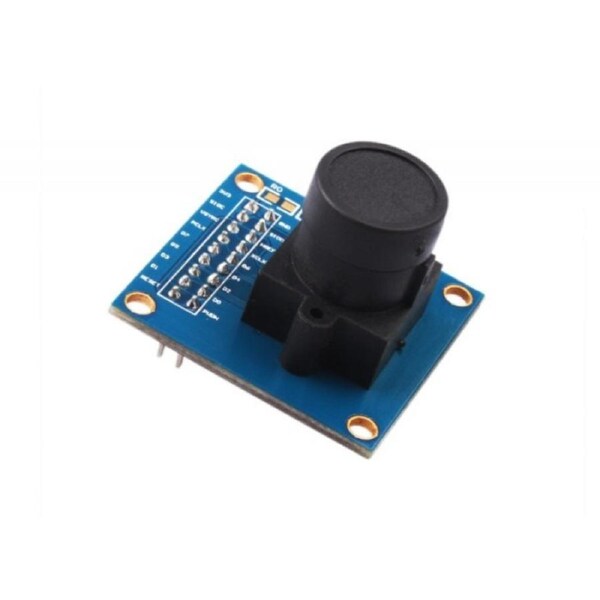

The OV7670 Camera Module is a compact VGA image sensor with low operating voltage perfect for Arduino Projects.
This single chip of VGA camera and image processor can reach up to a maximum of 30 frames per second.The image quality, data format and transmission mode can be adjusted via SCCB programming interface, including gamma curve, white balance, saturation and chroma .
Overview:
- High sensitivity for low-light operation.
- Low operating voltage for embedded application.
- Standard SCCB interface compatible with I2C interface.
- Raw RGB, RGB (GRB4:2:2, RGB565/555/444),YUV(4:2:2) and YCbCr(4:2:2) output format.
- Support VGA, CIF and from CIF to 40 x 30 format.
- Vario Pixel method for sub-sampling.
- Auto Image Control: AEC, AGC, AWB, ABF, ABLC.
- Image Quality Control: Color saturation, hue, gamma, sharpness and anti-blooming.
- ISP includes noise reduction and defect correction.
- Support image scaling.
- Lens shading correction.
- Flicker 50/60Hz auto detection.
- Color saturation level auto adjust.
- Edge enhancement level auto adjust.
- De-noise level auto adjust.
Features:
- Photosensitive Array: 640 x 480.
- IO Voltage: 2.5V to 3.0V.
- Operating Power: 60mW/15fpsVGAYUV.
- Sleeping Mode: <20μA.
- Operating Temperature: -30 to 70 deg C.
- Output Format: YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data (8 digit).
- Lens Size: 1/6".
- Vision Angle: 25 degree.
- Max. Frame Rate: 30fps VGA.
- Sensitivity: 1.3V / (Lux-sec).
- Signal to Noise Ratio: 46 dB.
- DynamicRange: 52 dB.
- Browse Mode: By row.
- Electronic Exposure: 1 to 510 row.
- Pixel Coverage: 3.6μm x 3.6μm.
- Duck Current: 12 mV/s at 60℃.
- PCB Size (L x W): Approx. 1.4 x 1.4 inch / 3.5 x 3.5 cm.
