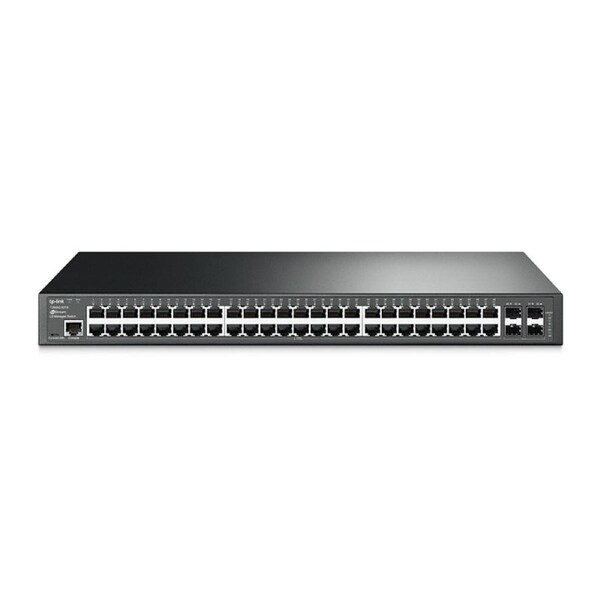

TP-Link SG3452 JetStream 48-Port Gigabit L2+ Managed Switch with 4 SFP Slots

TP-Link T2600G-52TS (TL-SG3452) JetStream 48-Port Gigabit L2 Managed Switch with 4 SFP Slots

• Gigabit Ethernet connections on all ports provide full speed of data transferring
• L2+ feature--Static Routing, helps route internal traffic for more efficient use of network resources
• IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X Authentication and Radius provide you robust security strategies
• L2/L3/L4 QoS and IGMP snooping optimize voice and video application
• IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery
• Web, CLI (Console Port, Telnet, SSH), SNMP, RMON and Dual Image bring abundant management policies.

HARDWARE FEATURES

• Standards and Protocols :IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z,
  IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
  IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p

• Interface :48 10/100/1000Mbps RJ45 Ports
  (Auto Negotiation/Auto MDI/MDIX)
  4 1000Mbps SFP Slots
  1 RJ45 Console Port
  1 Micro-USB Console Port

• Network Media :10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  100BASE-TX/1000Base-T: UTP category 5, 5e or above cable
  (maximum 100m)
  1000BASE-X: MMF, SMF

• Fan Quantity :Fanless
• Physical Security Lock :Yes
• Power Supply :100~240VAC, 50/60Hz
• Dimensions ( W x D x H ) :17.32 * 8.7 * 1.73 in. (440 * 220 * 44 mm)
• Mounting :Rack Mountable
• Max Power Consumption :33.52W (220V/50Hz)
• Max Heat Dissipation :114.37 BTU/h

PERFORMANCE

• Bandwidth/Backplane :104Gbps
• Packet Forwarding Rate :77.4Mpps
• MAC Address Table :16k
• Jumbo Frame :9216 Bytes

SOFTWARE FEATURES

• Quality of Service :Support 802.1p CoS/DSCP priority
  Support 8 priority queues
  Queue scheduling: SP, WRR, SP+WRR
  Port/Flow- based Rate Limiting
  Voice VLAN

• L2 and L2+ Features :Static Routing
  DHCP Relay
  IGMP Snooping V1/V2/V3
  802.3ad LACP (Up to 14 aggregation groups, containing 8 ports per group)
  Spanning Tree STP/RSTP/MSTP
  BPDU Filtering/Guard
  TC/Root Protect
  Loopback detection
  802.3x Flow Control
  L2PT
• VLAN :Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
  Port/ MAC/Protocol-based/Private VLAN
  GARP/GVRP

• Access Control List :L2?L4 package filtering based on source and destination MAC address,
  IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID
  Time Range Based

• Security :IP-MAC-Port-VID Binding
  AAA*
  802.1x and Radius Authentication
  DoS Defend
  Dynamic ARP inspection (DAI)
  SSH v1/v2
  SSL v3/TLSv1
  Port Security
  Broadcast/Multicast/Unknown-unicast Storm Control

• IPv6 :


• IPv6 Applications :DHCPv6 Client
  Ping6
  Tracert6
  Telnet(v6)
  IPv6 SNMP
  IPv6 SSH
  IPv6 SSL
  Http/Https
  IPv6 TFTP
  IPv6 ACL
  IPv6 Interface
  IPv6 Routing
  DHCPv6 Snooping

• Management :Web-based GUI and CLI management
  SNMP v1/v2c/v3,compatible with public MIBs and TP-Link private MIBs
  RMON (1, 2, 3, 9 groups)
  sFlow
  PPPoE Circuit ID
  DHCP Relay
  DHCP Server
  DHCP/BOOTP Client, DHCP Snooping, DHCP Option82
  Dual Image
  CPU Monitoring
  Port Mirroring
  Time Setting: SNTP
  Firmware Upgrade: TFTP & Web
  System Diagnose: VCT
  SYSLOG & Public MIBS
  Password Recovery

OTHERS

• Certification :CE, FCC, RoHS
• Package Contents :JetStream 48-Port Gigabit L2 Managed Switch with 4 SFP Slots T2600G-52TS
  Power Cord
  Installation Guide
  Resource CD
  Rackmount Kit
  Rubber Feet

• System Requirements :Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux.
• Environment :Operating Temperature: 0?~40? (32?~104?);
  Storage Temperature: -40?~70? (-40?~158?)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing

• Warranty :Limited 5-Year Warranty
