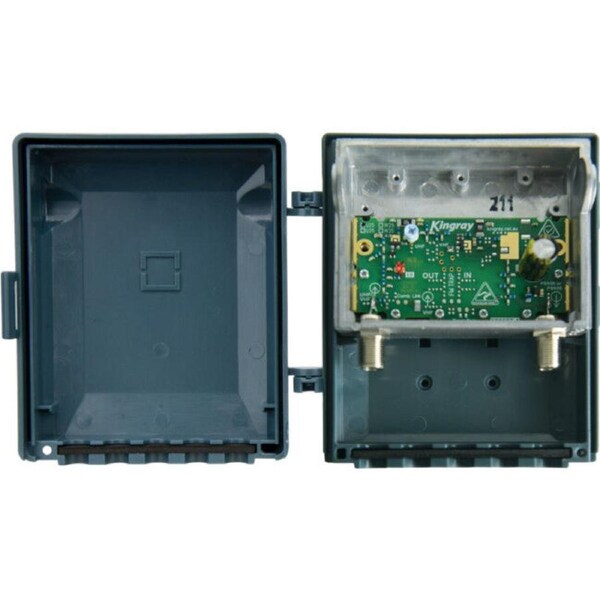

Kingray MHU25FS 25dB LTE 4G Filtering UHF Shielded Masthead Amplifier

UHF Masthead Amplifier with 25dB Gain, Fully Shielded Housing, Separate or Combined input with 4G/LTE filtering

• The MHU25FS is a UHF TV masthead amplifier, enclosed in a fully shield die-cast housing, with the capability to diplex VHF TV signals, either from combined or separate VHF and UHF antennas.
• The Kingray Masthead range includes both wideband and VHF or UHF only models & with UHF frequencies above 694 MHz filtered, 4G/LTE transmissions are filtered out.
• In addition to the 4G/LTE filtering, most wideband models include low band filtering to eliminate all services below 174 MHz. This amplifier also has the ability to allow FM radio signals to be passed through.
• The masthead is powered remotely via a Kingray PSK06 or PSK08 series power supply (sold separately).

Features

• Frequency Range 174-230 MHz & 520-694 MHz
• 25dB UHF Maximum Gain
• 10dB Gain Control for UHF
• Separate VHF & UHF Inputs or Combined Input
• UHF Amplifier with VHF Diplexing
• FM Radio 88-108 MHz Pass Through Selectable
• 4G/LTE Filtering
• Fully Shielded Die-cast Housing
• Weatherproof Housing
• High Output Figure of 108dB IMR3 (DIN45004B)
• Connectors: F-Type
• Power Consumption: 60mA
• Suitable Power Supply: PSK06 Series or PSK08 Series

• Please allow 2-7 business days for Metro delivery. & 5-10 business days for Regional delivery

• We ship all across Australia, including all major cities including Sydney, Melbourne, Perth, Brisbane, Adelaide, Canberra, Newcastle, and the Gold Coast.

Warranty

All items from Bourne Superstore come with a manufacturer's warranty (unless otherwise stated). Please refer to the individual product's description for the specific warranty timeframes

Returns policy

If you have a problem with your goods, please contact us. We will investigate your issues and advise you whether your product may be returned and, where required, provide you with instructions on how to return your goods.

Once an item is returned, we will either inspect your goods and investigate any claimed defect or in some cases, send the goods to third parties for assessment and/or repair. Where applicable we provide a remedy in relation to your goods.

If we do not believe a remedy is applicable upon inspecting your goods (for example, where we believe the goods have been misused, or there was a failure to use in accordance with manufacturer's instructions, used it in an abnormal way or there has been a failure to take reasonable care), we will reject your claim and return your goods to you. You must cover the cost of return shipping in order to receive goods we have rejected on inspection, and we will provide you with instructions on how to make this payment.

Refunds will be issued using the payment method used for purchase. We aim to process refunds and replacements within 30 days of receipt by us of the original product,

Change of Mind Returns

Please choose carefully as refunds are not normally provided where you have simply changed your mind, made a wrong selection or simply found the goods cheaper elsewhere. We recommend you carefully preview any orders before adding them to your shopping cart and proceeding with your order.

We cannot refund or exchange goods for change of mind or errors you made in your order. We may, at our sole discretion, allow a return or exchange product on a case-by-case basis, provided that the item in question is:

1. returned within 30 days off order.

2. not used or worn (with original tags and/or packaging);

3. in a resalable condition; and not damaged in any way.

We may provide you with a product exchange only when we receive the returned product. You are responsible for payment of return postage on your order. Change of mind returns are not accepted for Personal Hygiene products, In ear Headphones, intimates, which includes underwear, hosiery, socks, swimwear and adult toys due to hygienic reasons. Remedies for defective goods are still available.

Address Changes

If you enter the incorrect name or shipping details and the item is returned to us via Australia Post, you will be subject to a RTS (return to sender) fee if we are unable to change the details before dispatch, and well as a reshipping fee (dependent on the items weight). We are not responsible for these changes if there is a mistake entered by the buyer.

Defective Goods

All goods sold by Bourne Superstore come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. Where applicable, you may make a claim in relation to goods that are faulty in accordance with our 12-month warranty. This warranty only applies where specifically advertised in the products listings.

• UHF amplifier with VHF diplexing
• Separate or combined inputs
• LTE filtering
• UHF gain control
• Fully sheilded housing
• F type connections
• 100% weatherproof case

ELECTRICAL SPECIFICATION

• Frequency Range VHF: 174 - 230 MHz, UHF: 520 - 820 MHz
• Maximum Gain VHF -2, UHF 35 dB
• Gain Control Range 10 dB
• Maximum Output Level 108dBµV @ - 60 dB IMR (DIN45004B)
• Noise Figure UHF: <2.5 dB
• LTE Filter -25dB @ 750MHz

MECHANICAL SPECIFICATION

• Input Connector F type
• Output Connector F type

POWER SUPPLY

• Suitable plug pack PSK06/08, PSK06/08F, KPS06/08, KPS06/08F
• Power Consumption 70 mA

IN THE BOX:

• MHU25FS
• Cable Tie
• Installation Manual

12 months
