Voltage Regulators USB Graphical Semiconductor Component Analyser
- The all new Peak Advanced Semiconductor Analyser will:
- Automatically identify part type (eg, Transistor, JFET, IGBT, Regulator, Zener, Diodes, etc).
- Automatically identify pinout (connect any way round).
- Measure lots of component data.
- Perform further detailed component analysis with the PC software included on the Peak USB flash drive.
- Works as a stand alone unit or in conjunction with a PC.
Curve Tracing
When connected to a PC via the USB cable, a range of low current curve-tracing functions can be performed.
- Various graph types are available, with more to follow:
- Bipolar transistor output characteristics, IC vs VCE.
- Bipolar transistor gain characteristics, HFE vs VCE.
- Bipolar transistor gain characteristics, HFE vs IC.
- MOSFET and IGBT output function, ID vs VDS.
- MOSFET and IGBT transfer function, ID vs VGS.
- JFET output function, ID vs VDS.
- JFET transfer function, ID vs VGS.
- Voltage regulator, VOUT vs VIN.
- Voltage regulator, IQ vs VIN.
- PN junction I/V curves, forward and reverse options (for Zener diodes).
Features

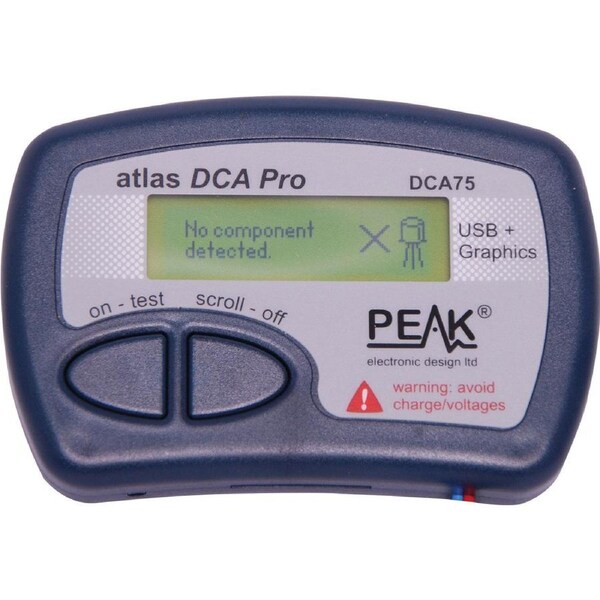

- The DCA Pro is an advanced new design that includes a graphics display, USB port, PC Software and an enhanced component recognition library.Transistors (including Darlingtons and "digital" transistors), Silicon and Germanium types. Measures gain, VBE and leakage.
- MOSFETs, enhancement mode and depletion mode types. Measure on-threshold (at 5mA) and approx transconductance (for span of 3mA-5mA).
- JFETs, including normally off SiC types. Measures pinch-off voltage (at 1uA) and approx transconductance (for span of 3mA-5mA).
- IGBTs (insulated gate bipolar transistors). Measures on-threshold (at 5mA).
- Diodes and Diode networks.
- LEDs and bicolour LEDs (2 lead and 3 lead types).
- Zener Diodes with measurement of zener voltage up to 9V at 5mA.
- Voltage regulators (measures regulation voltage <8V, drop-out voltage, quiescent current). Note that some regulators are not stable without their decoupling caps and/or minimum load and cannot be tested by the DCA75.
- Triacs and Thyristors that require less than 10mA of gate current and holding current.
