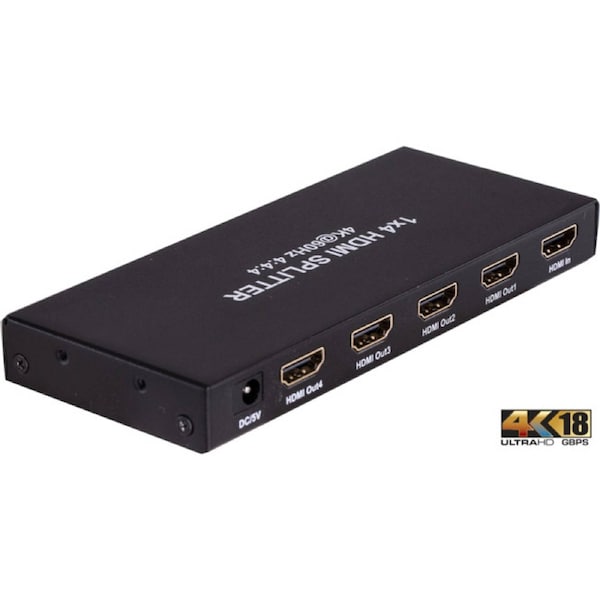

Pro.2 HDMI4SPV2 18Gbps 1 In 4 Out 4Way HDMI Splitter
Pro2's high quality HDMI splitters take a single signalinput - Bluray, HD TV, PayTV (Foxtel), Xbox 360, PlayStation 3 etc. - and split them to multiple outputs without any signal loss. This state of the art 4K HDMI 2.0 UHD splitter is capable of displaying resolutions up to 3840 x 2160. It is ideal for today's 1080p 3D signals and is future proofed for many years to come.
Our range provides an ideal solution from a simple homeinstallation upto a massive 16 monitor commercial installation. All models come in a robust metal case that ismade up of a solid construction that is built to last.
The Pro2 HDMI splitters are also powered, meaning they also help you extend your cable runs by equalising your signals and reclocking them before passing them onto the displays.
Specifications
- Supports HD TV resolutions up to 4Kx2K@30Hz 24bit RGB/YcbCR 4:4:4/YCbCr 4:2:2 and up to 4Kx2K@60Hz 12bit YCbCr4:2:0 & 3D up to 1080p@60Hz
- Deep colour: 36 bit
- Supports multi-channel digital audio formats: DTS-HD Master Audio, Dolby TrueHD, LPCM7.1 channel audio formats
- Built-in EDID simulator and HDCP key-set allows each output to work independently when connecting to an HDMI display
- Total transmission distances of 15m supported
- Maximum bandwidth: 18 Gbps
- Support 3D
- Support HDR
| Model | HDMI2SPV2 | HDMI4SPV2 |
|---|---|---|
| Code | 64510014 | 64510024 |
| Description | 2-WAY SPLITTER | 4-WAYSPLITTER |
| HDMI Inputs | 1 | 1 |
| HDMI Outputs | 2 | 4 |
| 3DSupport | ||
| 4K x 2K | ||
| HDCP Compliance | v2.0 | v2.0 |
| HDMI Resolutions |
480p / 4K x 2K out @60G YUV4:4:4 |
480p / 4K x 2K out @60G YUV4:4:4 |
| Audio Formats | LPCM / Dolby-AC3 / DTS 7.1 / DSD |
LPCM / Dolby-AC3 / DTS 7.1 / DSD |
| Data Transfer Speed | 18 Gbps | |
| Input Video signal | 5.0 Volts P-P (TTL) Single Link | 5.0 Volts P-P (TTL) Single Link |
| Video Amplifier Bandwidth | 140 MHz | 140 MHz |
| Transmission Distance | 15 metres using standard 26AWGcable | |
| Power Supply (included) | 5V 1A DC | 5V 2ADC |
| Dimensions | 93.6 x 61 x 15 mm | 150 x64.2 x 17 mm |
| Weight | 120g | 245g |
| Power Consumption | 1 W | 2 W |
| Operating Temp. Range | -15°C to 55°C (23°F to 95°F) | |
| Operating Humidity Range | 5 to 90% RH (no condensation) |
