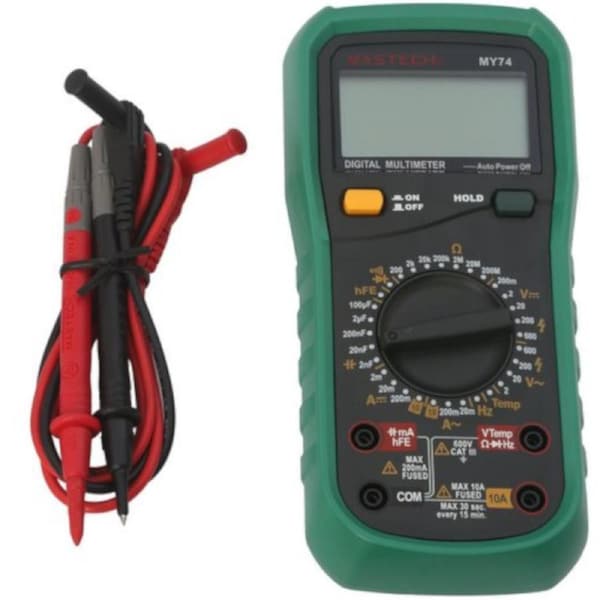

Mastech Digital Multimeter
PLUS TEMPERATURE CAPACITANCE & TRANSISTOR
This full-featured multimeter allows the user to test voltage, DC & AC current, resistance, frequency, capacitance, temperature, transistor gain, diode and continuity. The meter also features overload protection, data hold, auto power off, low battery display. It is RoHS compliant; CE ETL CAT II 600V approved. Includes 9V battery, component adaptor, a K-type thermocouple and safety test probes. The case is protected by an outer bump skin that has an in-built stand and can hold or store the probes.
FEATURES
- Test AC/DC voltage and resistance, continuity buzzer.
- Test AC/DC current up to 10 Amps
- Test capacitance (100µF), frequency (20KHz) and temperature
- Diode check and continuity test with audible buzzer
- hFE transistor gain measurement with component adaptor included
- Full sized 188x93x50mm
- With data hold button
- 2000 counts LCD Display.
- DC Voltage: 200mV/2V/20V/200V (Accuracy: ± 0.5% rdg +2),
- 600V (Accuracy: ± 0.8% rdg +2)
- AC Voltage: 2V/20V/200V (Accuracy: ±0.8% rdg +3),
- 600V (Accuracy: ±1.2% rdg +3)
- DC Current: 2mA/20mA (Accuracy: ±0.8% rdg +1),
- 200mA (Accuracy: ±1.5% rdg +1), 10A (Accuracy: ±2% rdg +5)
- AC Current: 20mA (Accuracy: ±1.0% rdg +5),
- 200mA (Accuracy: ±1.8% rdg +5), 10A (Accuracy: ±3% rdg +7)
- Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ (Accuracy: ±0.8% rdg +3), 20MΩ (Accuracy: ±1% rdg +5), 200Ω (Accuracy: ±6% rdg +10)
- Capacitance: 2nF/20nF/200nF/2uF (Accuracy: ±4% rdg +3),
- 100uF (Accuracy: ±6% rdg +10)
- Temperature: -20°C to 1000°C (Accuracy: ±2% rdg +2)
- Frequency: 10Hz - 20kHz (Accuracy: ±2% rdg +5)
- Transistor hFE Gain measurement
- Diode test: 2.7V.
- Continuity buzzer < 50Ω
- 1x 9V battery included.
