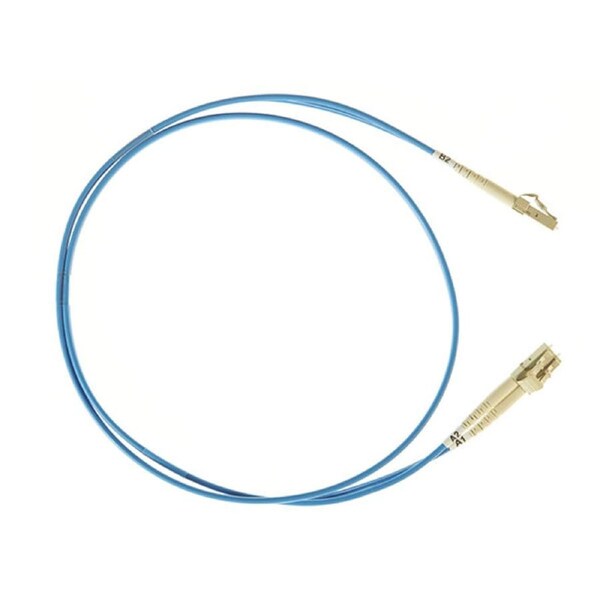

10M Lc Lc Om4 Multimode Fiber Optic Cable Blue
10M LC-LC OM4 MULTI MODE FIBER OPTIC CABLE - BLUE
Fiber patch cables are the thin, flexible fibers of glass that carry data, telephone conversations and emails high speed all over the world in a matter of seconds with much less interference than copper patch lead. Fiber Optic cables need less amplification to boost signals so they travel better over longer distances.
OM4 laser optimized multi mode fiber optic patch leads provide the connection from Ethernet 10Mbit/s to 10Gbit/s Gigabit Ethernet, they are the cost-effective way to replace your copper-based patch leads. Fiber optic cable is immune to EMI/ RFI frequency, mainly used on patch panels for the connection between outlets and terminal equipment.
The multi mode optical fiber cables are manufactured using LSZH cables which conform to IEC, EIA TIA and Telcordia standards. Multi mode Fiber Optics leads is the cost-effective way of your cabling solution.
FEATURES
Conforms to ISO/ IEC 11801
Individually labelled for lead tracing
Low smoke zero halogen (LSZH) cable
Manufactured with stringent quality control
UPC (Ultra Physical Contact) connector
All leads are supplied with a factory test report
Fiber Optic Cables conform to ITU-651, TIA/EIA492AAAD
Duplex configurable assemblies for LC, SC, ST & SC/A, as well as MTRJ Patch leads
All ends are polished and individually inspected for correct polishing
Supports high-speed multi-channel data, voice & video applications
Application:
Cross-connect patching
Backbone application in building
Termination enclosure for equipment patching
Equipment to equipment patching
SPECIFICATIONS
Colour: Blue
Cable length: 10 m
2 mm Oversleeving
OM4 Multimode
LC-LC Fiber Termination
Crush (N): 1000
Simplex/Duplex: Duplex
Strength member: Aramid
Tensile load: 7 kg
Bend radius: 3.8 cm
Operating temperature (C°): minus 20° to 60°
Attenuation (dB): 2.8 @ 850 nm/ 0.8 @ 1310 nm
Bandwidth OFL (MHz x km): 1500 @ 850 nm/500 @ 1310 nm/ 2000 @ 1310 nm
IL: RL<0.25 dB
UPC Single mode: >55 dB
UPC Multi mode: RL>35 dB
APC: RL>65
PACKAGE CONTENTS
1 x 10M Lc Lc Om4 Multimode Fiber Optic Cable Blue
