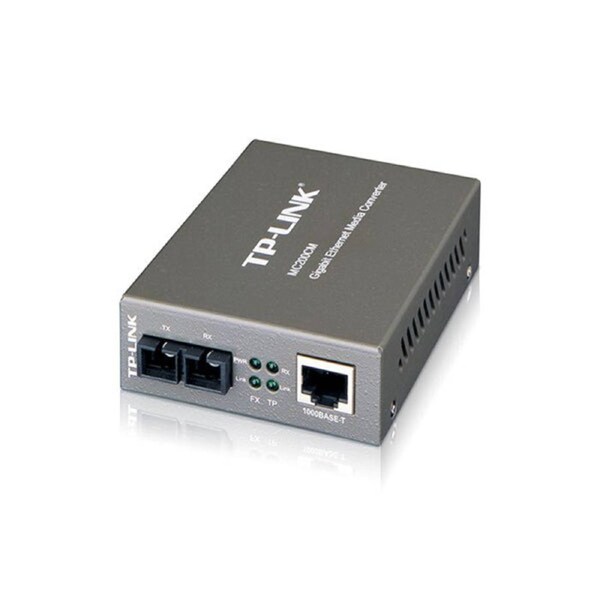

Tp Link Mc200Cm Gigabit Multi Mode Media Converter
TP-LINK MC200CM: GIGABIT MULTI-MODE MEDIA CONVERTER
The MC200CM is a media converter designed to convert 1000BASE-SX fibre to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fibre cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate.
It works at 850 nm on both transmitting and receiving data. Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINKs 19system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fibre optic distances utilizing multi-mode fibre up to 0.55 kilometres.
FEATURES
Complies with IEEE 802.3ab and IEEE 802.3z
Provides switch configuration of Force /Auto transfer mode for FX port
Extends fibre distance up to 0.55km
Works at 1000Mbps in Full-Duplex mode for both TX port and FX port
Supports auto MDI/MDIX for TX port
Provides switch configuration of Force /Auto transfer mode for FX port
Easy-to-view LED indicators provide status to monitor network activity easily
External power supply
SPECIFICATIONS
Dimensions: 94.5 x 73 x 27 mm
Standards and Protocols: IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Basic Function: Full Duplex Flow Control (IEEE 802.3x); Extends fibre distance up to 0.5km using 50/125um fibre; Extends fibre distance up to 0.22km using 62.5/125um fibre
Ports: 1 1000M SC port; 1 1000M RJ45 port (Auto MDI/MDIX)
Wave Length: 850nm
Network Media 1000BASE-FX: Multi-Mode Fibre
Network Media 1000BASE-T: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ohm STP (maximum 100m)
LED Indicators: PWR, LINK, RX
Power Supply: External Power Adapter
Safety & Emission: FCC, CE, RoHS
Operating Temperature: 0 ~40
Storage Temperature: -40 ~70
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
PACKAGE CONTENTS
1 x Tp Link Mc200Cm Gigabit Multi Mode Media Converter
