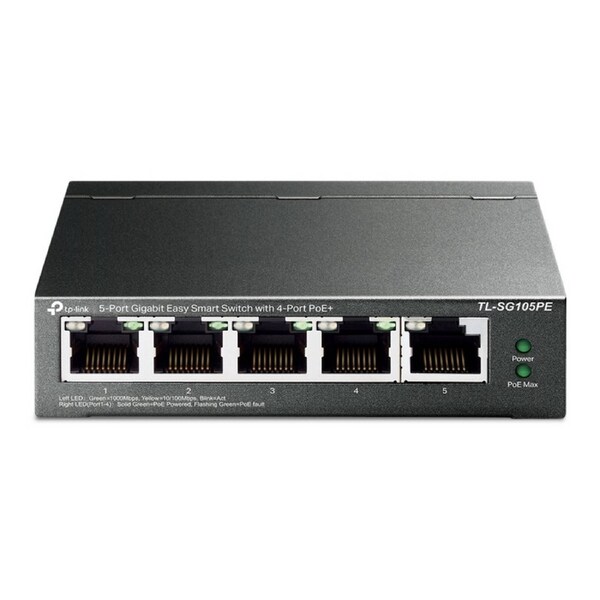

TP-Link TL-SG105PE 5 Port Gigabit Easy Smart Switch with 4 Port PoE+ Up To 65W
TP-Link TL-SG105PE 5-Port Gigabit Easy Smart Switch with 4-Port PoE+
- Five 10/100/1000Mbps RJ45 ports
- Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data, and power can be transferred on one single cable
- Supports PoE power up to 65 W for all PoE ports*
- Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and Easy Smart Configuration Utility simplify configuration
- Fanless design lowers energy consumption and eliminates operating noise
HARDWARE FEATURES
- Standards and Protocols :IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at - Interface :Five 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX - Network Media :10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m) - Fan Quantity :Fanless
- Power Supply :External Power Adapter (Output: 53.5 VDC/1.31 A)
- PoE Ports (RJ45) :Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 4
PoE Power Budget: 65 W - Dimensions ( W x D x H ) :3.9 x 3.9 x 1.0 in (99.8 x 98 x 25 mm)
- Max Power Consumption :4.52 W (220V/50Hz with no PD connected)
75.16 W (220V/50Hz with 65 W PD connected) - Max Heat Dissipation :15.41 BTU/h (with no PD connected)
256.30 BTU/h (with 65 W PD connected)
PERFORMANCE
- Switching Capacity :10 Gbps
- Packet Forwarding Rate :7.44 Mpps
- MAC Address Table :2 K
- Packet Buffer Memory :1 Mb
- Jumbo Frame :16 KB
SOFTWARE FEATURES
- Quality of Service :Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control - L2 Features :IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
PoE Auto Recovery
Extend Mode - VLAN :Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN - Management :Web-based GUI
Easy Smart Configuration Utility - Transmission Method :Store-And-Forward
OTHERS
- Certification :FCC, CE, RoHS
- Package Contents :TL-SG105PE
Power Adapter
Installation Guide
Rubber Feet - System Requirements :Microsoft® Windows® for running Utility
- Environment :Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~95%RH non-condensing
