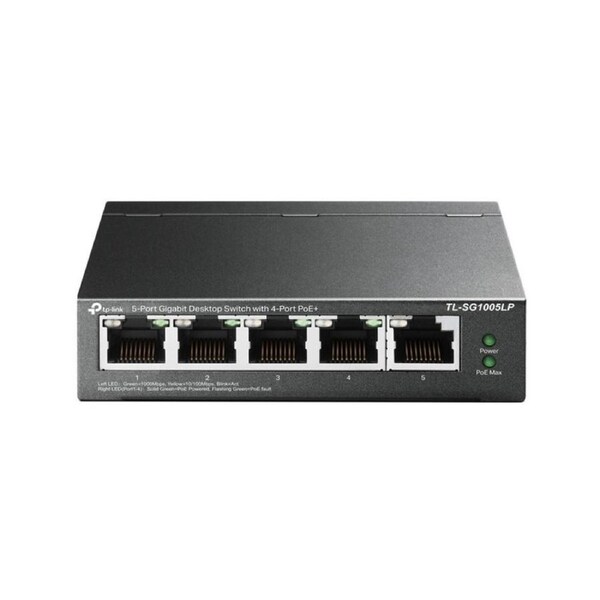

TP-Link TL-SG1005LP 5 Port Gigabit Desktop Switch with 4 Port PoE+ Up To 40W

TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+

• 5x 10/100/1000 Mbps RJ45 ports
• With four PoE+ ports, transfers data and power on one single cable
• Works with IEEE 802.3af/at compliant PDs
• 802.1p/DSCP QoS enable smooth latency-sensitive traffic
• Supports PoE Power up to 30 W for each PoE port
• Supports PoE Power up to 40 W for all PoE ports*
• Plug and play, no configuration and installation required

HARDWARE FEATURES

• Interface :• 5x 10/100/1000Mbps RJ45 Ports
  • AUTO Negotiation
  • AUTO MDI/MDIX

• Network Media :• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100? STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100? STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100? STP (maximum 100m)

• Fan Quantity :Fanless
• External Power Supply :External Power Adapter (Output: 53.5 VDC / 0.81 A)
• Packet Forwarding Rate :7.44 Mpps
• PoE Ports (RJ45) :• Standard: 802.3 af/at compliant
  • PoE Ports: Ports 1-4
  • Power Supply: 40 W

• Mac Address Table :2K
• Jumbo Frame :16 KB
• Switching Capacity :10 Gbps
• Dimensions ( W x D x H ) :3.9x3.9x1.0 in (99.8x98x25 mm)
• Max Power Consumption :• 4.12 W (220/50 Hz. no PD connected)
  • 47.5 W (220/50 Hz. with 40 W PD connected)
• Max Heat Dissipation :• 14.05 BTU/h (no PD connected)
  • 161.98 BTU/h (with 40 W PD connected)

SOFTWARE FEATURES

• Advanced Features :• Compatible With IEEE 802.3af/at Compliant PDs
  • Mac Address Auto-Learning And Auto-Aging
  • IEEE 802.3x Flow Control
  • 802.1p/DSCP QoS
  • IGMP Snooping

• Transfer Method :Store-And-Forward

OTHERS

• Certification :FCC, CE, RoHS
• Package Contents :• TL-SG1005LP
  • Power Adapter
  • Installation Guide
• Environment :• Operating Temperature: 0-40 ? (32-104 ?);
  • Storage Temperature: -40-70 ? (-40-158 ?)
  • Operating Humidity: 10-90% RH non-condensing
  • Storage Humidity: 5-90% RH non-condensing
