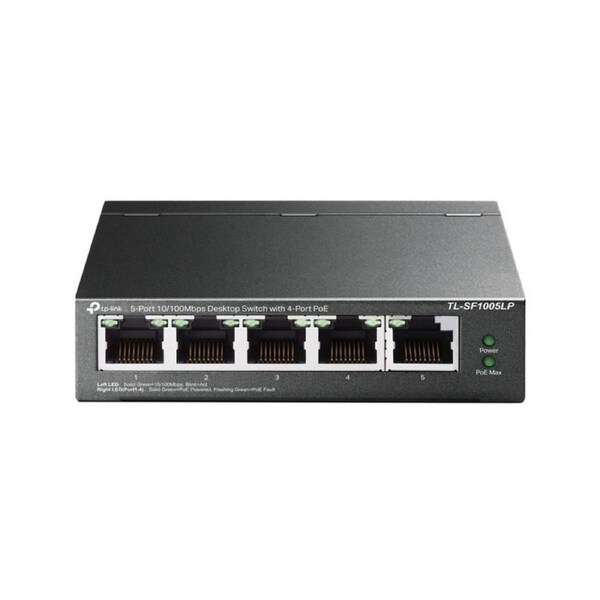

TP-Link TL-SF1005LP 5 Port 10/100Mbps Desktop Switch with 4 Port PoE Up to 41 W

TP-Link TL-SF1005LP 5-Port 10/100Mbps Desktop Switch with 4-Port PoE

• 5x 10/100 Mbps RJ45 ports
• 4x PoE ports transfer data and power on individual cables
• Works with IEEE 802.3af compliant PDs
• Up to 250 m data and power transmitting range under Extend Mode**
• Priority Mode ensures high priority of ports 1-2 to guarantee the quality of sensitive application
• Supports PoE Power up to 41 W for all PoE ports*
• Plug and play with no configuration required

HARDWARE FEATURES

• Interface :• 5x 10/100 Mbps RJ45 Ports (Ports 1-4 support 802.3af PoE)
  • AUTO Negotiation
  • AUTO MDI/MDIX

• Network Media :• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100? STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100? STP (maximum 100m)

• Fan Quantity :Fanless
• Physical Security Lock :Yes
• External Power Supply :External Power Adapter (Output: 53.5 V DC / 0.81 A)
• Packet Forwarding Rate :0.744 Mpps
• PoE Ports (RJ45) :• Standard: 802.3 af compliant
  • PoE Ports: Ports 1-4
  • Power Supply: 41 W

• Mac Address Table :2K
• Jumbo Frame :2 KB
• Switching Capacity :1 Gbps
• Dimensions ( W x D x H ) :3.9x3.9x1.0 in (100x98x25 mm)
• Max Power Consumption :• 1.9 W (220 V / 50 Hz, no PD connected)
  • 47 W (220 V / 50 Hz, with 41 W PD connected)
• Max Heat Dissipation :• 6.48 BTU/h(no PD connected)
  • 160.27 BTU/h(with 41 W PD connected)


SOFTWARE FEATURES

• Transmission Method :Store-And-Forward
• Advanced Functions :• Compatible With IEEE 802.3af/at Compliant PDs
  • Extend Mode Button (Ports 1-4)
  • Priority Mode Button (Ports 1-2)
  • Mac Address Auto-Learning And Auto-Aging
  • IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode


OTHERS

• Certification :FCC, CE, RoHS
• Package Contents :• TL-SF1005LP
  • Power Adapter
  • Installation Guide
• Environment :• Operating Temperature: 0-40 ? (32-104 ?)
  • Storage Temperature: -40-70 ? (-40-158 ?)
  • Operating Humidity: 10-90% RH non-condensing
  • Storage Humidity: 5-90% RH non-condensing
