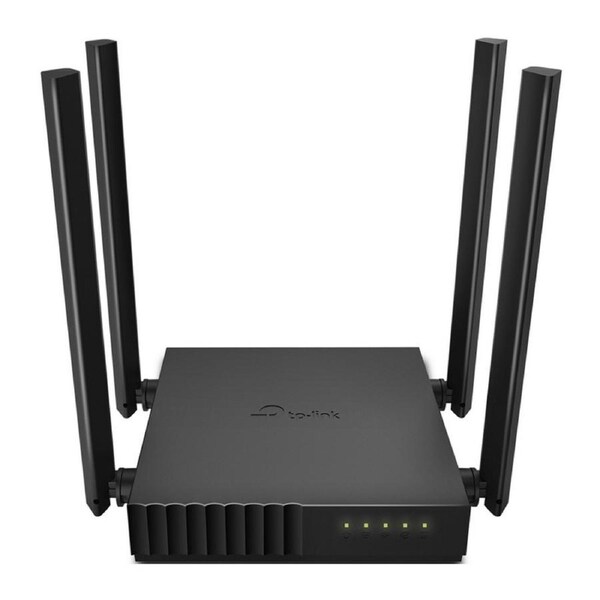

TP-Link Archer C54 AC1200 Dual-Band Wi-Fi Router Access Point and Range Extender

TP-Link Archer C54 AC1200 Dual-Band Wi-Fi Router

• Faster AC Wi-Fi-AC1200 dual-band is ideal for 4K video streaming and high-speed downloading.
• Far-Reaching Coverage-4x antennas and Beamforming delivers extensive Wi-Fi coverage and reliable connections.
• Multi-Mode 3-in-1-Supports Router, Access Point, and Range Extender modes for added flexibility.
• Parental Controls-Manages when and how connected devices can access the internet.
• Guest Network-Provides separate access for guests in order to secure the host network.
• Smooth HD Streaming-Supports IGMP Proxy/Snooping, Bridge, and Tag VLAN to optimize IPTV streaming.
• IPv6 Supported-Compatible with the IPv6 (the latest Internet Protocol version 6).
• Compact and Mountable-Designed to conserve space and complement any decor.

WIRELESS

• Standards :Wi-Fi 5
  IEEE 802.11ac/n/a 5 GHz
  IEEE 802.11n/b/g 2.4 GHz
• WiFi Speeds :AC1200
  5 GHz: 867 Mbps (802.11ac)
  2.4 GHz: 300 Mbps (802.11n)
• WiFi Range :3 Bedroom Houses
  4x Fixed Antennas
  Multiple antennas form a signal-boosting array to cover more directions and large areas

  Beamforming
  Concentrates wireless signal strength towards clients to expand WiFi range
• WiFi Capacity :Medium
  Dual-Band
  Allocate devices to different bands for optimal performance

  MU-MIMO
  Simultaneously communicates with multiple MU-MIMO clients
• Working Modes :Router Mode
  Access Point Mode
  Range Extender Mode

HARDWARE

• Processor :Single-Core CPU
• Ethernet Ports :1x 10/100 Mbps WAN Port
  4x 10/100 Mbps LAN Ports
• Buttons :WPS/Reset Button
• Power :9 V ? 0.85 A

SECURITY

• WiFi Encryption :WPA
  WPA2
  WPA3
  WPA/WPA2-Enterprise (802.1x)
• Network Security :SPI Firewall
  Access Control
  IP & MAC Binding
  Application Layer Gateway
• Guest Network :1x 5 GHz Guest Network
  1x 2.4 GHz Guest Network

SOFTWARE

• Protocols :IPv4
  IPv6
• Parental Controls :URL Filtering
  Time Controls
• WAN Types :Dynamic IP
  Static IP
  PPPoE
  PPTP
  L2TP
• Quality of Service :QoS by Device
• NAT Forwarding :Port Forwarding
  Port Triggering
  DMZ
  UPnP
• IPTV :IGMP Proxy
  IGMP Snooping
  Bridge
  Tag VLAN
• DHCP :Address Reservation
  DHCP Client List
  Server
• DDNS :NO-IP
  DynDNS
• Management :Tether App
  Webpage
  Check Web Emulator>

OTHER

• System Requirements :Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

  Cable or DSL Modem (if needed)

  Subscription with an internet service provider (for internet access)
• Certifications :FCC, CE, RoHS
• Environment :Operating Temperature: 0?~40? (32? ~104?)
  Storage Temperature: -40?~60? (-40? ~140?)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing

TEST DATA

• WiFi Transmission Power :CE EIRP:
  <20dBm(2.4GHz)
  <23dBm(5GHz)
  FCC:
  <30dBm(2.4GHz & 5GHz)
• WiFi Reception Sensitivity :5GHz:
  11a 6Mbps:-93dBm?
  11a 54Mbps:-78dBm?
  11ac HT20 mcs8:69dBm;
  11ac HT40 mcs9:-66dBm;
  11ac HT80 mcs9:-62dBm;
  2.4GHz:
  11g 54Mbps:-78dBm;
  11n HT20 mcs7:-74dBm;
  11n HT40 mcs7:-71dbm?

PHYSICAL

• Dimensions (WxDxH) :4.5 x 4.2 x 1.0 in
  (115 x 106.7 x 24.3 mm)
• Package Contents :Wi-Fi Router Archer C54
  Power Adapter
  RJ45 Ethernet Cable
  Quick Installation Guide
