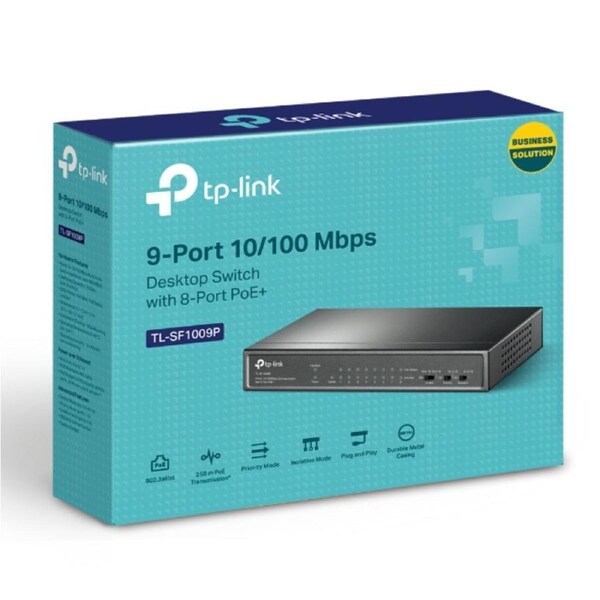

TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ •9× 10/100 Mbps RJ45 ports •8× PoE+ ports transfer data and power on individual cables •Works with IEEE 802.3af/at compliant PDs •Supports PoE Power up to 30 W for each PoE port •Supports PoE Power up to 65 W for 8 PoE ports* •Up to 250 m data and power transmitting range under Extend Mode** •Priority Mode ensures high priority of ports 1-2 to guarantee the quality of sensitive application •Isolation Mode allows one-click client traffic separation for higher security and performance •Plug and play with no configuration required HARDWARE FEATURES Interface• 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports) • AUTO Negotiation • AUTO MDI/MDIX Network Media• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) Fan QuantityFanless Physical Security LockYes External Power SupplyExternal Power Adapter (Output: 53.5VDC / 1.31A) Packet Forwarding Rate1.3392 Mpps PoE Ports (RJ45)• Standard: 802.3 af/at compliant • PoE Ports: Ports 1-8 • Power Supply: 65 W Mac Address Table2K Jumbo Frame2 KB Switching Capacity1.8 Gbps Dimensions ( W x D x H )6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm) Max Power Consumption• 3.6 (220/50 Hz. no PD connected) • 77.08 (220/50 Hz. with 65 W PD connected) Max Heat Dissipation• 12.28 BTU/h (no PD connected) • 262.84 BTU/h (with 65 W PD connected) SOFTWARE FEATURES Transmission MethodStore-And-Forward Advanced Functions• Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1-4 and Ports 1-8, Up to 250 m PoE power supply and data transmission) • Priority Mode Button (Ports 1-2) • Isolation Mode Button (Ports 1-8) • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
