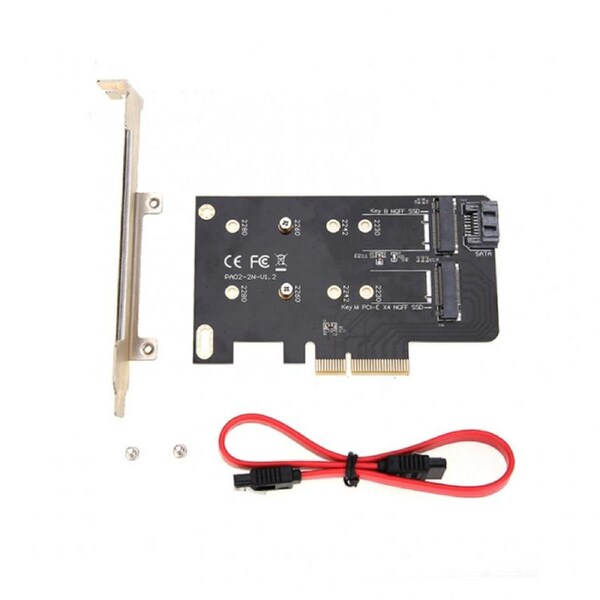

EC412 is a PCI Express expansion card designed to add NGFF M.2 devices such as SSD onto existing PC motherboard. Dual M.2 slots support both PCI-E based M.2 device (M key, NVMe) to run via the faster PCI-E interface at up to 32Gbps, and legacy SATA based M.2 slot (B key) for connecting to a SATA III port. Features Connects one M.2 port (M key) into one PCI-E x4 interface Connects a second M.2 port (B key) into SATA 6G interface Supports two M.2 SSD simultaneously Supports PCI-E interface (M key) at up to 32Gbps Supports SATA interface (B key) at up to 6Gbps No driver installation required Specifications Interface: PCI Express X4 / SATA 6Gbps SSD Interface: M.2(NGFF) Module Key: B key (SATA-based), M key (PCI-E 4X-based, NVMe) Number of Drives: 2 Supported Type M.2 SSD: 2230, 2242, 2260 and 2280 Supported Length of M.2 SSD: 30mm, 42mm, 60mm, 80mm Important Note M key M.2 is for use with PCI-E (NVMe) SSD only, B key M.2 is for use with SATA SSD only. B key M.2 SSD requires SATA 7 pin cable connected to motherboard to function. NVMe M.2 SSD requires the use of Intel 9 series (Z97 H97 Z170 X99) or higher version chipset based motherboard with Windows 8 or higher operating system. Its recommended to update your motherboards driver and BIOS to the latest version before install the Expansion Card. Package Contents 1x PCI Express Expansion Card 2x Mounting Screws 1x SATA Cable
- Please allow 4 - 7 business days for delivery
- We ship across Australia, including major cities like: Sydney, Melbourne, Perth, Brisbane, Adelaide, Canberra, Newcastle and the Gold Coast
Warranty Policy
All our products come with a 12 month standard warranty. The warranty cover does not include for damage caused by accidents, misuse, neglect and lack of maintenance, usual wear and tear, natural disaster or any other external causes.
Returns Policy
If you are unsatisfied with your purchase or you have changed your mind, you can return the products to us in its original packaging and saleable conditions within 30 days from the date of order. Please note that the product must be unused and in brand new condition, otherwise the return will not be accepted. You will be responsible for covering the return costs and the initial shipping is non-refundable. 20% re-stocking fees applies on all orders where product is not faulty and/or damaged.
