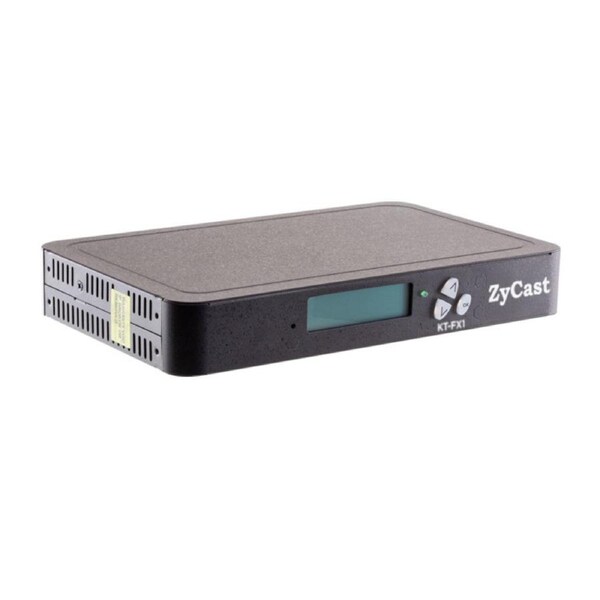

Zycast Single Input Foxtel Modulator HD No Loop No Audio Delay KT-FX1

• General
• Power supply - 12VDC 1.5AMP External
• Operating temperature - 0c to +45c
• Storage temperature - -0c to +60c
• Dimensions - 236mm x 145mm x 34mm
• Weight - 0.88kg
• Warranty - 3 years
• Foxtel Approved Number - F31059


• Input
• Number of inputs - 1
• Video input - HDMI
• Video input level - 0.7 â€â€œ 1.4V (Peak to Peak)
• Video mode - PAL
• Audio input - Stereo
• Audio input level - 0.4 to 4.8V (Peak to Peak)


• Output
• Frequency Range - 177.5 MHz to 816.5 MHz (6 to 69)
• Output level - 85dB
• MER > 38dB
• Connection type - F Type


• Modulation
• Video Resolution - 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
• Video compression - H.264 AVC (MPEG-4)
• Audio compression - MPEG Layer II / AAC
• Video bitrate SD - 1Mbps to 9Mbps (Default 5Mbps)
• Video bitrate HD - 12Mbps to 24Mbps (Default 24Mbps)
• LCN - AU (APN)
• Carrier - 2K / 8K
• GI - 1/32
• FEC - 7/8
• Constellations - 16 QAM / 64 QAM


• Management / Programming
• Front LCD - Yes
• Web GUI - Yes
