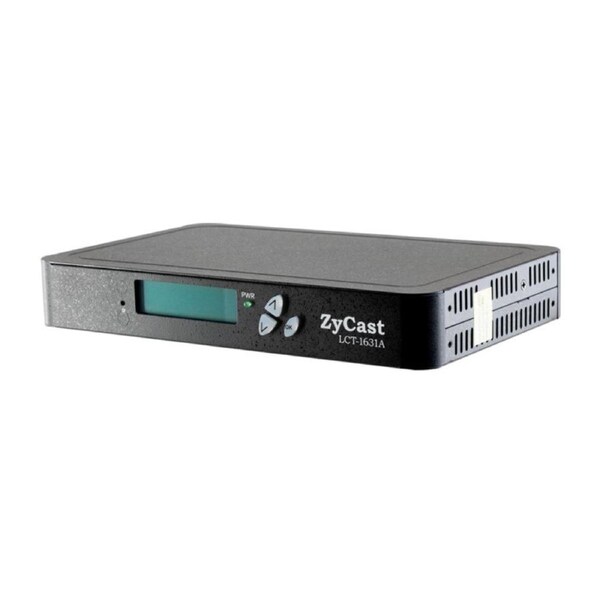

Zycast DVB-T MPEG-2 HD Encoder Modulator w/ HDMI Inputs LCT1631A

• HDMI 1.4
• Connector - Single
• Audio - Embedded PCM
• HDCP Compliance (Test Mode) - 1.4


• Video/ Audio Encoding Profile
• Video Codecs - MPEG-2 VBR
• Bitrate (Adjustable) - DVB-T:, HD: 12.0 to 24.0Mbps
• (Suggested Max. Bitrate 17Mbps for 16-QAM), SD: 4.0 to 9.0Mbps
• Resolution Output - Same as Input, Accepting Resolution as Follows: 1080p30 / 1080p25, 1080i60 / 1080i50, 720p60 / 720p50, 576p / 480p, 576i / 480i
• Audio Codecs - MPEG1 Layer II / MPEG4 AAC /AC-3 Encode


• Output
• Standard - DVB-T
• Connector - 1x âہFâ€Â Female
• Output Level - 95 dBµV Typical (With 20dB Range Manually Adjustable)
• Flatness Across Full Band ± 2 dB Typical
• MER - 38 dB Typical @ 480.5 MHz under DVB-T Mode
• Output Impedance - 75 ohm
• RF Output Return Loss - 10 dB Typical


• ModulatorSTD - DVB-T (COFDM)
• RF Mode - Normal / Inverted
• Frequency Range (AU / NZ) - AU: 104.5 MHz to 816.5 MHz (Channel 5 to Channel 69) & NZ : 107.5 MHz to 858.0 MHz (Channel S1 to Channel 69)
• Constellation (Output Bitrate, Max.) - AU : 64-QAM (27.70Mbps), NZ : 64-QAM (31.66 Mbps)
• FEC - 7/8
• LCN Mode - AU / NZ
• OFDM Mode - 2k, 8k
• Guard Interval - 1/32


• General
• Local Monitoring - LCD
• Web GUI Supported - Firefox, Chrome
• Password Protected - GUI: User Settable
• Power Supply - 12VDC 1.5A
• Consumption - 5W
• Operation Temperature - 0°C to +55°C
• Storage Temperature -20°C to +70°C
• Dimension - Housing: 236(L) x 145(W) x 34(H) mmWeight
• Language - English
• Connector - RCA x1 Set for Each
• Audio - Analog 3.5mm (Phone Jack)


• Package Contents
• LCT-1631A Encoder / Modulator
• 12V DC 1.5A Power Adapter
• 3.5mm to 2 RCA Audio Lead
• One installation / configuration manual
