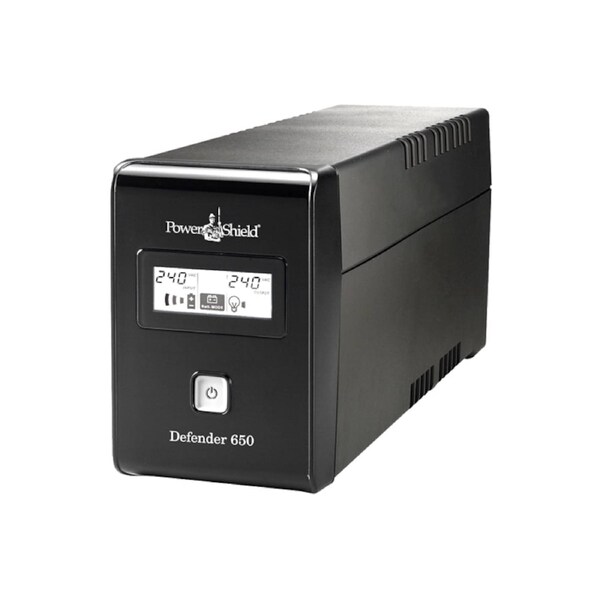

PowerShield Defender 650VA 390W Line Interactive UPS with AVR PSD650

• Input
• Voltage - 240Vac (Nominal)
• Voltage Range - 177-290Vac
• Frequency Range - 50/60Hz ±5Hz (Auto sensing)


• Output
• Output Voltage - 240Vac ±10%
• Frequency - AC mode tracks utility
• Frequency Range (Batt. Mode) - 50Hz or 60Hz ±1Hz
• Transfer Time - 6ms (Typical)
• Waveform (Batt. Mode) - Simulated Sine Wave
• Australian outlets- UPS & surge protection - 2


• Battery
• Battery Type & Number - 12V*9AH (x1)
• Typical Recharge Time - 6 hours recovery to 90% capacity
• Backup Time (50% Load) - 6min


• Protection
• Full Protection - Overload, discharge, thermal, short circuit and overcharge protection
• Surge Protection - 312Joules / 6500 Amps


• Communications & Management
• Interface - USB Interface
• Software - NetGuard supports Windows, Linux, Unix & MAC (FreeDownload)
• LCD Alarm - AC Mode, Battery Mode, Low Battery (Batt. Mode), Fault, Overload
• Audible Alarm - Battery Mode, Low Battery (Batt. Mode), Fault, Overload


• Physical
• Dimensions - 328D x 100W x 145H mm
• Net Weight - 5.2kg


• Operating environment
• Temperature - 0 - 40ËšC
• Humidity - 0 - 90% (RH Non-condensing)
• Noise Level - <5dB (no fan)


• Compliance
• Safety/EMC - (A-tick PSD650) EN62040-1-1 2003 , IEC60950-1 : 2001 , EN62040-2 2006
• RoHS - Directive 2011 / 65 / EU
