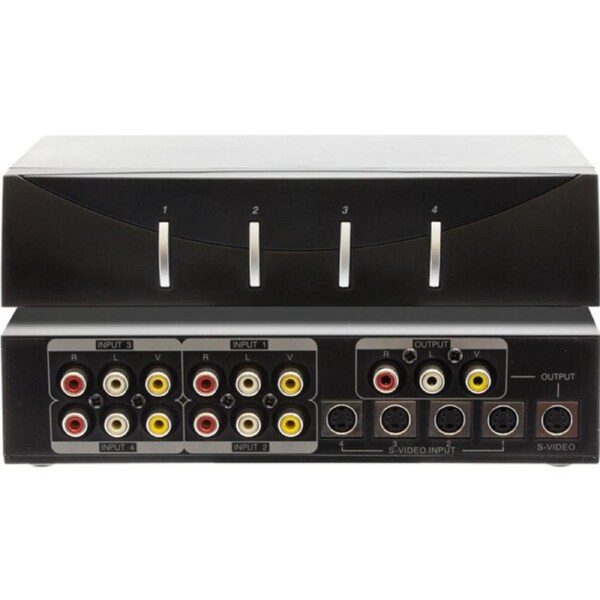

Pro.2 4-Way AV Composite/S-Video Selector VCRs/Gaming Consoles 10Hz-20K Hz

This 4 way AV svideo selector connects up to four AV devices such as DVD players, VCRs or gaming consoles with a single output to your TV and switch between them as required. Inputs can be either composite or S-video.

Specifications:

Audio :

• Frequency range: 10Hz-20K Hz
• Insertion Loss: 0.5 dB limited
• Channel Separation (@1K Hz): 50 dB normal, 45dB limited
• Crosstalk Between Function(@1K Hz): 60dB normal, 55dB limited

Note:

• The generator impedance should be 600 ohm.
• Signal output reading is taken across a 47K ohm load.
• Product Input 4.7K ohm terminated. (on testing channel
• separation and crosstalk)

Video :

• Frequency Range: 0.3M-6M Hz
• Insertion Loss: 1 dB limited
• Isolation Loss: 35 dB limited

Chrominance :

• Frequency Range: 4.43M±0.5M Hz
• Insertion Loss: 1dB limited
• Isolation Loss: 35dB limited

Luminance :

• Frequency Range: 0.3M-1M Hz
• Insertion Lloss: 1dB limited
• Isolation Loss: 35dB limited

Composite/S-Video signal conversion :

• Video Input: 1V P-P
• Luminance Output: 0.9V P-P
• Chrominance Output: 0.286V P-P

Note:

• The generator impedance should be 75 ohm
• Input 75 ohm terminated

• Please allow 2-8 business days for delivery.

• We ship all across Australia, including all major cities including Sydney, Melbourne, Perth, Brisbane, Adelaide, Canberra, Newcastle, and the Gold Coast.
