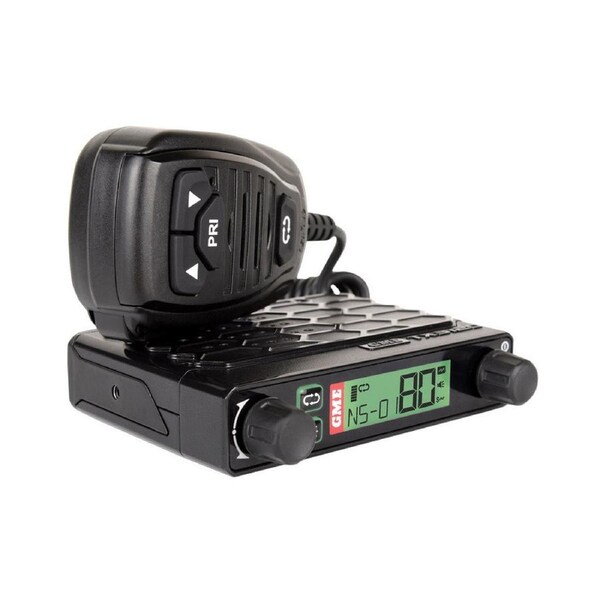

GME TX3120S Super Compact UHF CB with ScanSuite

Synonymous with quality and reliability, the GME TX3120S is one of the most advanced 5 Watt UHF CB radios of its kind. Equipped with GMEs newest digital scanning technology - ScanSuite(TM) and an impressive feature list that includes Digital Signal Processing, Advanced Signal Management and Dynamic Volume Control. With CTCSS and DCS this radio ensures more privacy and less interruption.

This 5 watt robust radio is engineered to maximise features in limited space.

This new super compact radio has separate rotary user controls for volume and channel change, the widest LCD screen available on any super compact sized UHF and a new dynamic speaker microphone. These new and unique features improve useability and audio quality for a better UHF experience.

Product Details

• ScanSuite
• Dynamic Volume Control
• Selectable priority channel
• Voice inversion scrambler
• Memory channel quick select
• CTCSS & DCS
• Advanced signal management
• Full spectrum backlighting
• Active channel transmit in scan
• 5 year warranty
• Digital signal processing
• Open and group scan mode

Product Specifications

GENERAL

Compliant Specification Meets AS/NZS 4365 for radio communications equipment in the UHF citizen and personal radio service. Frequency Range TX 476.425 - 477.4125 MHz Number of Channels 80 UHF CB Channel Spacing 12.5 kHz Operation Mode Simplex channels 1-80, Semi duplex channels 1-8, 41-48. Scanning Speed 20 channels per second Antenna Impedance 50 Ohms nominal Nominal Battery Voltage 13.8 volts DC Operating Voltage Range 10-15 volts DC Overvoltage Protection 25 volts DC max At 18 volts DC the RF power is reduced, and the words 'Hi DC' flash. Overcurrent Protection In-line 2A Fuse Frequency stability 2.5 PPM

TRANSMITTER

RF Output 5.0 watts max Spurious Emission < -70 dBc Modulation FM Maximum Deviation < 2.5 kHz at + 20 dB limiting Transmit Frequency Response +6 dB per octave 300 Hz to 3 kHz +1-3 dB Demodulated Audio Signal to Noise > 45 dB Current Consumption 1.5 amps with 50 Ohms termination

RECEIVER

Intermediate Frequencies 1st - 38.85 MHz 2nd - 450 kHz Sensitivity 123 dBm for 12 dB SINAD unweighted Selectivity -6 dB at + 3.5 kHz ???????????????60 dB at 12.5 kHz Intermodulation Immunity 73 dB Blocking Immunity 100 dB Spurious Response Immunity 70 dB Audio Output Power 3 watts average into 4 Ohms Audio Signal to Noise > 45 dB Current consumption < 180 mA muted 600 mA @ max. A.F output Receive Frequency ????? dB/Octave de?????emphasis 300 Hz to 3 kHz + 1-3 dB Conducted Spurious Emission < -57 dBm

MECHANICAL SPECIFICATIONS

Dimensions 102 (W) x 97 (D) x 23 (H) mm Weight 178 grams Power Supply/Supply Voltage MIL STD 810 method
