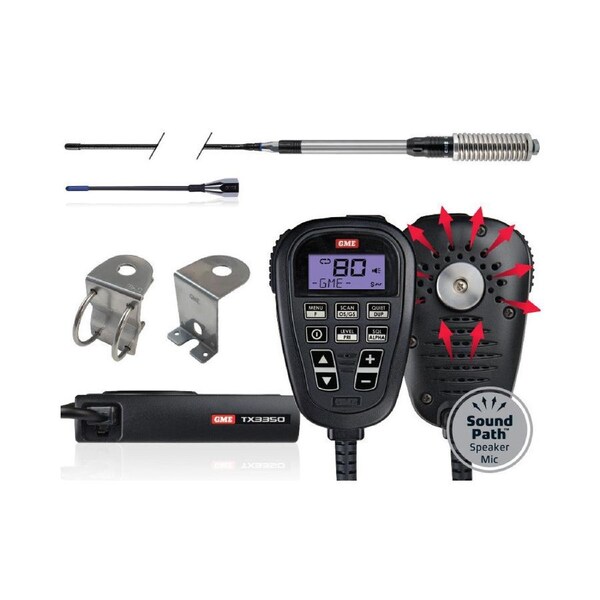

GME TX3350UVP VALUE PACK INCLUDING TX3350 80 CHANNEL UHF RADIO

The TX3350 is an 80 channel, feature packed super compact UHF CB radio with the new SoundPath(TM) full function LCD Speaker Microphone.

The challenge was to create a unique solution that allowed a full function LCD Microphone that could house a built in speaker with clear audio all within a compact and ergonomic design. SoundPath(TM) diverts the audio through a unique convex path around the microphone bollard, whilst maintaining the compact size.

The TX3350 combines the unique combination of space saving benefits of a super compact size radio and full function speaker microphone all in the palm of your hand. The radio can now be discretely installed in almost any location within a vehicle and without the need for extension speakers.

Product Details

• Powered by Pure Sound DSP engine
• Full spectrum backlit LCD microphone with Soundpath speaker
• User selectable open and group scan
• User adjustable squelch
• User selectable duplex channels
• User selectable priority channel
• 104 in-built DCS codes
• 50 in-built CTCSS codes
• 5 digit selcall with quiet mode
• Five year warranty
• Australian design and manufacture

• Product Specifications

  GENERAL

  Compliant Specification Meets AS/NZS 4365 for radio communications equipment in the UHF citizen and personal radio service. Frequency Range TX 476.425 - 477.4125 MHz Number of Channels 80 UHF CB Channel Spacing 12.5 kHz Operation Mode simplex channels 1-80, Semi Duplex channels 1?????, 41-48 Scanning Speed 20 channels per second Antenna Impedance 50 Ohms nominal Nominal Battery Voltage 13.8 volts DC Operating Voltage Range 10-15 volts DC Overvoltage Protection 25 volts DC max At 18 volts DC the RF power is reduced, and the words 'Hi DC' flash. Overcurrent Protection In-line 2A Fuse Frequency stability 2.5 PPM Modulation FM

  TRANSMITTER

  RF Output 5.0 watts max Maximum Deviation < 2.5 kHz at + 20 dB limiting Transmit Frequency Response +6 dB per octave, 300 Hz to 3 kHz + 1-3 dB Current Consumption 1.5 amps with 50 Ohms termination

  RECEIVER

  Intermediate Frequencies 1st - 21.54, MHz 2nd - 450 kHz Sensitivity - 123 dBm for 12 dB SINAD unweighted Selectivity - 6 dB at + 3.5 kHz, ?????60 dB at 12.5 kHz Intermodulation Immunity 73 dB Blocking Immunity 100 dB Spurious Response Immunity 70 dB Audio Output Power 3 watts average into 4 Ohms Current consumption < 180 mA muted 600 mA @ max. A.F output Receive Frequency ????? dB/Octave de?????emphasis, 300 Hz to 3 kHz + 1-3 dB Conducted Spurious Emission < - 57 dBm

  MECHANICAL SPECIFICATIONS

  Dimensions 102 (W) x 87 (D) x 23 (H) mm Weight 158 grams
