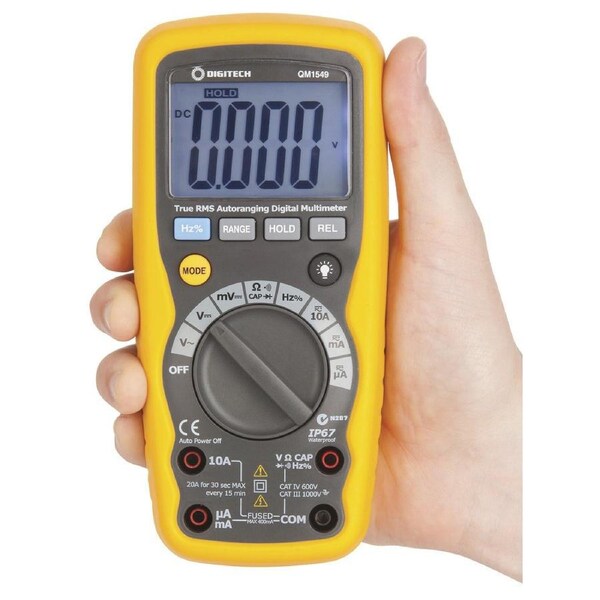

This is an excellent true RMS multimeter that features a large, easily read display and carries an IP67 environmental rating. This means the multimeter is waterproof and will not be damaged if accidentally dropped into water or left out in the rain. The meter has data should and relative measurement capabilities and is housed in a robust, double moulded case. Includes leads, soft carry case and user manual.
Features:
* IP67 waterproof
* True RMS
* Auto power-off
* Backlight
* Data hold & relative function
* Diode test
* Autoranging
* Audible continuity
* 10A current range
* Double moulded case
* Display 4000 count
* Security Class Cat IV 600V
* Basic DCV accuracy 0.500%
* Ave/RMS True RMS
* Input impedance 10M
* Special features IP67, data-hold, relative measurement, backlight
Measures Current DC
| DC Current Accuracy |
1.2% |
| DC Current Ranges |
4mA,40mA,400mA,10A |
Measures Current AC
| AC Current Ranges |
4mA,40mA,400mA,10A |
| AC Current Accuracy |
1.8% |
Measures Voltage AC
| AC Voltage Ranges |
400mV,4V,40V,400V,1000V |
| AC Voltage Accuracy |
0.8% |
Measures Voltage DC
| DC Voltage Accuracy |
0.5% |
| DC Voltage Ranges |
400mV,4V,40V,400V,1000V |
Measures Resistance
| Resistance Ranges |
400 ,4k ,40k ,400k ,40M |
| Resistance Accuracy |
0.8% |
Meter Safety Rating
| Safety Rating Cat |
Cat IV |
| Safety Rating Max Volt |
600V |
Measures Capacitance
| Capacitance Ranges |
4nF,40nF,4uF,40uF,100uF |
| Capacitance Accuracy |
3% |
Measures Frequency
| Frequency Ranges |
4kHz,40kHz,400kHz,4MHz,10MHz |
| Frequency Accuracy |
1.5% |
Ingress Protection Rating
| IP Rating certificate |
|
| Dust/Particle Ingress Protection |
6 - Dust tight, no ingress of dust |
| Liquid/Moisture Ingress Protection |
7 - Immersion up to 1m |
Digital Multi-Meter
| Count Maximum Reading |
4000 count |
| True RMS |
|
| Autorange |
|
| Measures duty cycle |
|
Meter Data Control
| Data Hold |
|
| Relative Measure |
|
Measures Continuity
| Continuity indicator |
Needle |
Meter Probes
| Probe rating voltage |
600V |
| Probe safety rating |
Cat IV |
Meter
| Meter Input Impedence |
10 |
| Measures diode |
|
| Input Protection Fuse |
500mA,10mA |
| Casing |
Plastic |
| Carry Case Included |
|
Power from disposable battery
| Size / Shape |
9V |
| Battery quantity |
1pc |
| Batteries included |
|
| Batteries can be replaced by user |
|
| Compartment location |
Internal / In-built |
| How is battery compartment kept closed |
Clip and Screw |
Product Dimensions
| Length |
182mm |
| Width |
82mm |
| Depth |
55mm |
Meter Display
| Display Backlight |
|
| Display Type |
LCD |
