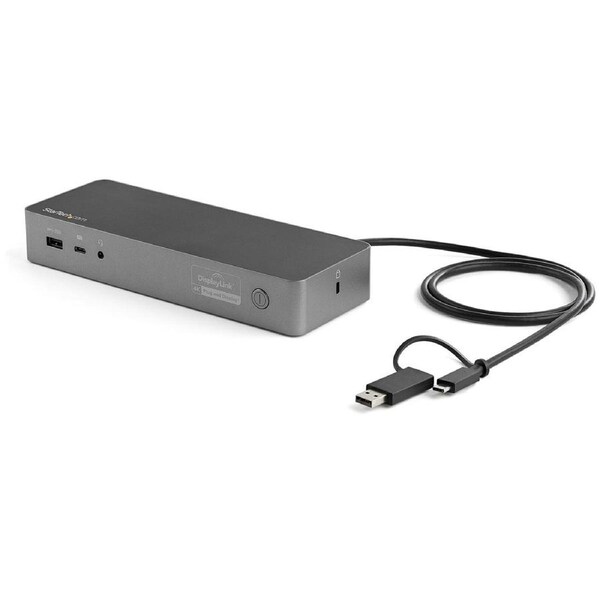

Star Tech 4K 60Hz Dual Monitor Hybrid USB C/USB A Dock Station 100W for Laptop

Star Tech Universal Laptop Docking Station - USB-C & USB-A - 100W PD

^{*Requires monitor support for 5K using two DP ports}

Certified for Universal Compatibility & Reliability

This docking station is fully certified to meet top industry standards for USB-IF (USB 3.1 Gen 1, USB Type-C and Power Delivery), VESA DisplayPort and DisplayLink (video connections) certification to guarantee the highest quality, reliability, and compatibility.

Easy and Convenient Setup

For fast setup right out of the box, the combo cable (USB-C with attached USB-A adapter) lets you connect any laptop. The dock has mounting holes for workstation mounting (bracket not included).

The Connections You Need

Connect your devices with four USB 3.1 ports: 1x USB-C and 3x USB-A. Fast-charge your USB-C or USB-A smartphone. The dock provides a GbE port (PXE Boot support & Wake-on-LAN) and 3.5 mm 4-position headset audio jack. It also includes a security lock slot (K-slot) to protect against theft.

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.

• Please allow 2-8 business days for delivery.

• We ship all across Australia, including all major cities including Sydney, Melbourne, Perth, Brisbane, Adelaide, Canberra, Newcastle, and the Gold Coast.

WARRANTY POLICY

All items from KG Superstore come with a manufacturer's warranty (unless otherwise stated). Please refer to the individual product's description for the specific warranty time-frames.

RETURNS POLICY

If you have a problem with your goods, please contact us. We will investigate your issues and advise you whether your product may be returned and, where required, provide you with instructions on how to return your goods.

Once an item is returned we will either inspect your goods and investigate any claimed defect or in some cases, send the goods to third parties for assessment and/or repair. Where applicable we provide a remedy in relation to your goods.

If we do not believe a remedy is applicable upon inspecting your goods (for example, where we believe the goods have been misused, or there was a failure to use in accordance with manufacturer's instructions, used it in an abnormal way or there has been a failure to take reasonable care), we will reject your claim and return your goods to you. You must cover the cost of return shipping in order to receive goods we have rejected on inspection, and we will provide you with instructions on how to make this payment.

Refunds will be issued using the payment method used for purchase. We aim to process refunds and replacements within 30 days of receipt by us of the original product,

Change of Mind Returns

Please choose carefully as refunds are not normally provided where you have simply changed your mind, made a wrong selection or simply found the goods cheaper elsewhere. We recommend you carefully preview any orders before adding them to your shopping cart and proceeding with your order.

We cannot refund or exchange goods for change of mind or errors you made in your order. We may, at our sole discretion, allow a return or exchange product on a case-by-case basis, provided that the item in question is:

1. returned within 30 days off order;
2. not used or worn (with original tags and/or packaging);
3. in a resalable condition; and not damaged in any way.

We may provide you with a product exchange only when we receive the returned product. You are responsible for payment of return postage on your order. Change of mind returns are not accepted for Personal Hygiene products, In ear Headphones, intimates, which includes underwear, hosiery, socks, swimwear and adult toys due to hygienic reasons. Remedies for defective goods are still available.

Defective Goods

All goods sold by KG Superstore come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. Where applicable, you may make a claim in relation to goods that are faulty in accordance with our 12 month warranty. This warranty only applies where specifically advertised in the products listings.

Hardware
Displays Supported: 2
Fast-Charge Port(s): Yes
Industry Standards: USB Power Delivery Specification Rev. 3.0
USB Battery Charging Specification Rev. 1.2
DisplayPort 1.2
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0 and 1.1
Interface: USB 3.0

Packaging Information
Package Height: 90 mm [3.5 in]
Package Length: 27 cm [10.6 in]
Package Width: 15.5 cm [6.1 in]
Shipping (Package) Weight: 1.3 kg [2.9 lb]

Performance
Compatible Networks: 10/100/1000 Mbps
Full Duplex Support: Yes
Maximum Data Transfer Rate: 5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions: 2x HDMI - 4096 x 2160p @60Hz
2x DisplayPort - 4096 x 2160p @60Hz
1x HDMI + 1x DisplayPort - 4096 x 2160p @60Hz

1x 5K DisplayPort using 2 DP video ports - 5120 x 2880 @60Hz

Lower resolutions are also supported. For example, if the max is 4096 x 2160p (4K), it also supports 3840 x 2160p (4K), 2560 x 1600p and 2560 x 1440p.

PXE: Yes
Type and Rate: USB 3.0 - 5 Gbit/s
UASP Support: Yes

Physical Characteristics
Color: Black & Space Gray
Material: Plastic
Product Height: 3 cm [1.2 in]
Product Length: 22 cm [8.7 in]
Product Width: 80 mm [3.1 in]
Weight of Product: 280 g [9.9 oz]

Power
Center Tip Polarity: Positive
Input Current: 2.5 A
Input Voltage: 100 - 240 AC
Output Current: 7.7A
Output Voltage: 19.5V DC
Plug Type: N
Power Consumption (In Watts): 150W
Power Delivery: 100W
Power Source: AC Adapter Included

Prominence
Description CDW 75 - 1st Line: StarTech.com USB-C & USB-A Hybrid Dock w/ 100W PD - Dual 4K 60Hz HDMI / DP

Software
OS Compatibility: Windows® 7, 8, 8.1, 10
macOS 10.11 - 10.12, 10.14, 10.15, 11.0
Ubuntu 18.04, 20.04
Chrome OS™ v55+

Special Notes / Requirements
Note: 4K resolution is supported on all 4 video ports. A 4K-capable DisplayPort or HDMI display is required to achieve 4Kx2K resolutions

Hardware
Compatible Lock Slot: Kensington Standard Slot (K-Slot)
Chipset ID: DisplayLink - DL6950
Genesys Logic - GL3523
Fresco Logic - FL7102
Fresco Logic - FL7201
VIA Labs - VL160
RealTek - RTL8153
Texas Instruments - TS3A225E
Bus Type: USB-C : USB 3.0
4K Support: Yes

Environmental
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Humidity: 0~95% RH

Connector(s)
Connector Type(s): USB Type-C (Fast-Charge, 24 pin) USB 3.0 Female: USB Type-A (9 pin) USB 3.0 (5 Gbps) Female : USB 3.0 A (Fast-Charge, 9 pin) Female : HDMI (19 pin) Female : Ethernet Gigabit Female : DisplayPort (20 pin) Female : 3.5 mm Mini-Jack (4 Position) Female

Special Notes / Requirements
Note: 5K resolution is supported by connecting the two DisplayPort video ports to a single 5K display. A 5K-capable display is required to achieve 5K (5120 x 2880 60Hz) resolutions : DisplayLink docking stations and video adapters support more than one external display on Apple's M1-based Mac. Requires driver installation. Please contact StarTech.com support for a recommendation based on your specific setup. : If connected to a USB 2.0 host port, or if using a USB 2.0 host connection cable, performance may be limited (USB 3.0 host cable included) : Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery. : The dock connects to the USB Type-C port or the USB Type-A port on your laptop. : USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps
System and Cable Requirements: USB-C enabled computer with an available USB Type-C port, or a USB-3.0 enabled computer with an available USB Type-A port

What's in the Box
Included in Package: Docking Station : Quick-Start Guide : Universal Power Adapter (NA/JP, ANZ) : USB-C Cable (with Attached USB-C to USB-A Adapter)

This item comes with a 3 Years warranty
