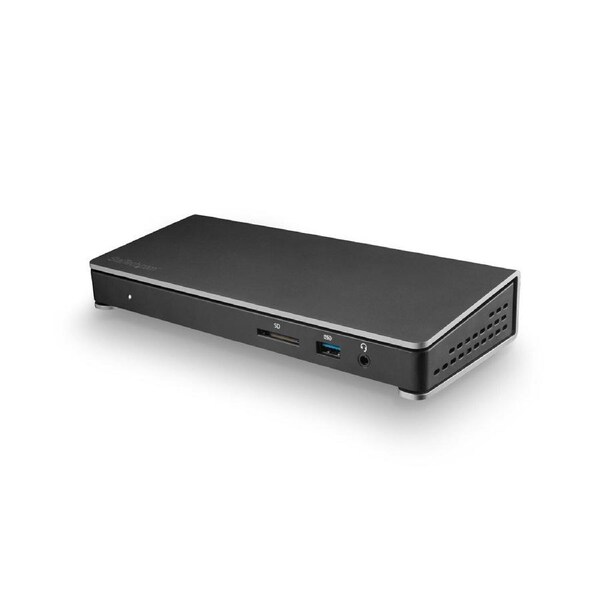

Star Tech 4K 60Hz Dual Monitor Thunderbolt 3 Dock Station 85W Power for Laptop

Star Tech Thunderbolt™ 3 Dock for Laptops - Dual-4K - Power Delivery

Easily transform your Thunderbolt 3 equipped MacBook Pro or Windows laptop into a dual-4K workstation with up to 40Gbps of throughput. The high-quality TB3 dock features six USB 3.0 ports, 85W Power Delivery to charge your laptop, and an SD card reader.

Create a Dual-4K 60Hz Workstation

This dual-monitor docking station supports 40Gbps speeds and 4K (4096 x 2160) resolution at 60Hz on two monitors, enabling resource-demanding applications on independent displays without draining system resources. The TB3 dock can support 5K (5120 x 2880) resolutions @ 60Hz on a single display.

Connect your laptop to:

• 1 x 4K monitor via the DP Port
• 1 x 4K monitor via the TB3 USB-C Port (1.8 m cable included)

OR

• 1 x 5K monitor via the DP and TB3 USB-C ports

Easy Installation & Deployment

Simply connect the TB3 dock to your laptop with the included TB3 cable and start working immediately. No time-consuming driver installations are required. Set up a second monitor using the included USB-C to DisplayPort cable adapter, eliminating the need for extra adapters.

Plenty of Ports Including SD Card Reader

The TB3 docking station offers six USB 3.0 ports, including a Fast-Charge port and USB-C port, an GbE port and audio/microphone port. The built-in SD card reader adds storage not usually available on most docking stations.

85W Power Delivery

Using a single cable, the universal laptop docking station provides up to 85W of Power Delivery to power and charge your laptop, and power your peripherals with its 180W power adapter.

• Please allow 2-8 business days for delivery.

• We ship all across Australia, including all major cities including Sydney, Melbourne, Perth, Brisbane, Adelaide, Canberra, Newcastle, and the Gold Coast.

WARRANTY POLICY

All items from KG Superstore come with a manufacturer's warranty (unless otherwise stated). Please refer to the individual product's description for the specific warranty time-frames.

RETURNS POLICY

If you have a problem with your goods, please contact us. We will investigate your issues and advise you whether your product may be returned and, where required, provide you with instructions on how to return your goods.

Once an item is returned we will either inspect your goods and investigate any claimed defect or in some cases, send the goods to third parties for assessment and/or repair. Where applicable we provide a remedy in relation to your goods.

If we do not believe a remedy is applicable upon inspecting your goods (for example, where we believe the goods have been misused, or there was a failure to use in accordance with manufacturer's instructions, used it in an abnormal way or there has been a failure to take reasonable care), we will reject your claim and return your goods to you. You must cover the cost of return shipping in order to receive goods we have rejected on inspection, and we will provide you with instructions on how to make this payment.

Refunds will be issued using the payment method used for purchase. We aim to process refunds and replacements within 30 days of receipt by us of the original product,

Change of Mind Returns

Please choose carefully as refunds are not normally provided where you have simply changed your mind, made a wrong selection or simply found the goods cheaper elsewhere. We recommend you carefully preview any orders before adding them to your shopping cart and proceeding with your order.

We cannot refund or exchange goods for change of mind or errors you made in your order. We may, at our sole discretion, allow a return or exchange product on a case-by-case basis, provided that the item in question is:

1. returned within 30 days off order;
2. not used or worn (with original tags and/or packaging);
3. in a resalable condition; and not damaged in any way.

We may provide you with a product exchange only when we receive the returned product. You are responsible for payment of return postage on your order. Change of mind returns are not accepted for Personal Hygiene products, In ear Headphones, intimates, which includes underwear, hosiery, socks, swimwear and adult toys due to hygienic reasons. Remedies for defective goods are still available.

Defective Goods

All goods sold by KG Superstore come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. Where applicable, you may make a claim in relation to goods that are faulty in accordance with our 12 month warranty. This warranty only applies where specifically advertised in the products listings.

Hardware
Industry Standards: Thunderbolt 3
USB Battery Charging Specification Rev. 1.2
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0 and 1.1

Packaging Information
Package Height: 90 mm [3.5 in]
Package Length: 29.5 cm [11.6 in]
Package Width: 14.5 cm [5.7 in]
Shipping (Package) Weight: 1.8 kg [3.9 lb]

Performance
Auto MDIX: Yes
Compatible Networks: 10/100/1000 Mbps
Full Duplex Support: Yes
Maximum Data Transfer Rate: 40 Gbps (Thunderbolt 3)
10 Gbps (USB 3.1 Gen 2)
5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions: Dual displays - DisplayPort and Thunderbolt 3 USB-C - 4096 x 2160p / 3840 x 2160p at 60Hz
Single 4K display - DisplayPort or Thunderbolt 3 USB-C - 4096 x 2160p / 3840 x 2160p at 60Hz
Single 5K (5120 x 2880p) display (through Thunderbolt 3 USB-C port)
Memory Media Type: microSD (Micro Secure Digital) (adapter required) : microSDHC (Micro Secure Digital High Capacity) (adapter required) : microSDXC (Micro Secure Digital eXtended Capacity) (adapter required) : SD/MMC (Secure Digital/Multimedia Card) : SDHC (Secure Digital High Capacity) : SDXC (Secure Digital eXtended Capacity)
PXE: Yes
Type and Rate: Thunderbolt 3 - 40 Gbit/s
UASP Support: Yes

Physical Characteristics
Color: Space Gray
Material: Aluminum
Product Height: 3.4 cm [1.3 in]
Product Length: 22.2 cm [8.7 in]
Product Width: 87 mm [3.4 in]
Weight of Product: 492 g [17.4 oz]

Power
Center Tip Polarity: Positive
Input Current: 2.5 A
Input Voltage: 100 - 240 AC
Output Current: 9 A
Output Voltage: 20V DC
Plug Type: N
Power Consumption (In Watts): 180
Power Delivery: 85W

Hardware
Fast-Charge Port(s): Yes
Displays Supported: 2
Chipset ID: Intel - Alpine Ridge JHL6540
Texas Instruments - TPS65983
Fresco - FL1100EX
Intel - WGI210AT
C-Media - CM6533
Genesys Logic - GL3226
Bus Type: Thunderbolt 3
4K Support: Yes

Environmental
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 0~95% RH

Connector(s)
Connector Type(s): USB Type-C (24 pin) USB 3.0 (5Gbps) Female : USB 3.1 USB Type-A (9 pin, Gen 1, 5 Gbps) Female : USB 3.0 A (Fast-Charge, 9 pin) Female : Thunderbolt™ 3 USB-C (24-pin) (40Gbps) Female : RJ-45 Female : DisplayPort (20 pin) Female : 3.5 mm Mini-Jack (4 Position) Female

Power
Power Source: AC Adapter Included

Prominence
Description CDW 75 - 1st Line: StarTech.com Thunderbolt 3 Dock Dual Monitor 4K 60Hz w/DP - 85W PD/6xUSB/SD

Software
OS Compatibility: Windows® 8, 8.1, 10
macOS 10.12 - 10.15, 11.0

Special Notes / Requirements
Note: A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K). : MacBook Air and MacBook Pro systems using the new Apple M1 chip support only a single external display over the Thunderbolt 3 ports, even when connected to a Thunderbolt 3 docking station with more than one video output. This single monitor limitation does not affect Intel-based Macs with Thunderbolt 3. : USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps. USB 3.1 Gen 2 offers speeds up to 10Gbps. : When connecting a display to one of the Thunderbolt 3 USB-C ports, a USB-C video adapter might be required depending on the input of your display.
System and Cable Requirements: Thunderbolt 3 equipped computer with a Thunderbolt 3 port. : Your laptop's Thunderbolt 3 port must support USB Power Delivery 2.0 in order to power and charge your laptop.

What's in the Box
Included in Package: docking station : instruction manual : power cords (NA/JP, ANZ) : Thunderbolt 3 cable : universal power adapter : USB-C to DisplayPort cable

This item comes with a 3 Years warranty
