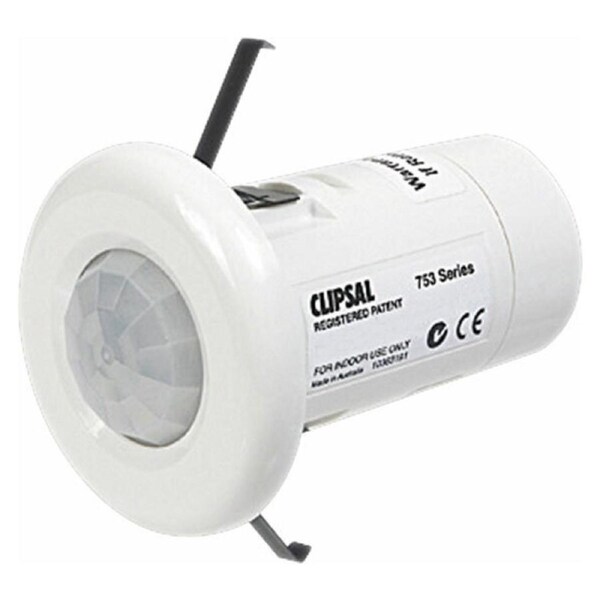

Clipsal Infrascan 360 Degree Indoor Motion Sensor

The Clipsal Infrascan 753R is a high‑performance indoor PIR (Passive Infrared) motion sensor designed to automatically control lighting based on occupancy. Featuring a full 360° detection field, this recessed ceiling mount sensor detects movement across a wide area and controls lighting loads up to 10 A, making it ideal for residential and commercial interiors - from hallways and bathrooms to offices and walk‑in spaces.

With adjustable timer and light level functions, a discreet flush mount design, and low standby power usage, the 753R enhances energy efficiency while delivering reliable motion‑activated control that blends seamlessly with modern interiors.

Key Features

• 360° Coverage - Circular detection field provides full room sensing when ceiling‑mounted.
• Wide Detection Range - Rated up to 14 m diameter field of view (approx. 7 m radius at recommended mounting height).
• Passive Infrared (PIR) Technology - Detects thermal changes associated with human movement for reliable switching.
• Flush Ceiling Mount - Recessed mount keeps the sensor discreet and neat in ceilings.
• 10 A Load Capacity - Suitable for direct control of lighting loads and other 230 V circuits.
• 3‑Wire Neutral Model - Neutral required for proper operation and stable switching.
• Adjustable Timer - Built‑in timer delay adjustable from approx 5 s to 20 min to suit occupancy patterns.
• Light Level Inhibit - Optional ambient light threshold to prevent switching when natural light is sufficient.
• Low Standby Power - Uses less than 1 W when idle.
• Robust Recessed Design - Large wiring terminals for ease of installation.

Specifications

• Model: 753R
• Sensor Type: Passive Infrared (PIR) motion detector
• Mounting: Recessed flush ceiling
• Detection Field: 360° circular coverage, approx. 14 m diameter at rated sensitivity (at 2.4 m height)
• Voltage: 200 - 265 V AC, 50 Hz
• Max Load Current: 10 A
• Minimum Load: 0 W (neutral model)
• Timer Range: ~5 s to 20 min (adjustable)
• Warm‑Up Time: ~30 s
• Standby Consumption: < 1 W
• Connection Type: 3‑wire (active, neutral, switched live)
• Mounting Hole: ~50 mm holesaw cut‑out (standard recessed size)
• IP Rating: IP20 (indoor use)
• Colour: White Electric
• Compliance: AS/NZS 60669.2.1 (typical for PIR switch mechanisms)

Applications

• Automated lighting control in hallways, stairwells, bathrooms, kitchens and laundries
• Offices, corridors and meeting rooms to reduce energy use
• Indoor motion‑activated lighting in residential or commercial fit‑outs
• Energy‑efficient control of lighting circuits for safety and convenience

The Clipsal Infrascan 753R 360° Indoor Motion Sensor delivers comprehensive occupancy sensing, wide coverage, and flexible timing control - perfect for energy‑saving automatic lighting in homes and workplaces alike.
