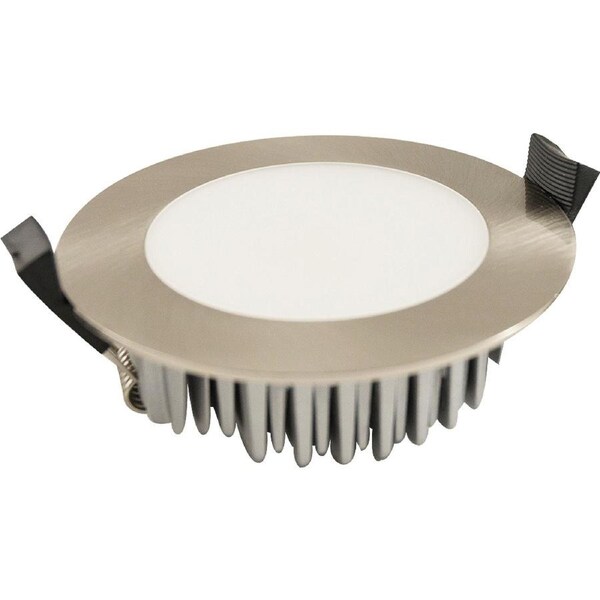

3A 13W Dimmable LED Downlight Kit Flush Silver (Tri Colour Switchable)

The 3A Lighting ATLAS 4 (DL1560-SCTC13S01) is a versatile and stylish 13W LED downlight kit, offering a high-efficiency lighting solution for residential and commercial applications. Featuring triac dimming, a flush diffuser, and selectable colour temperatures, it delivers superior performance with modern aesthetics. The silver housing provides a contemporary finish, ideal for spaces where visual appeal and functionality are equally important.

With an IP54 rating, wide 100° beam angle, and flicker-free driver, the ATLAS 4 is suitable for a wide range of indoor environments, including damp areas such as bathrooms or covered outdoor settings.

Key Features

• Triac Dimmable - Smooth dimming control compatible with standard wall dimmers
• Selectable Colour Temperature - Adjustable between 3000K, 4000K, and 5000K for maximum flexibility
• High Lumen Output - Delivers up to 921 lumens with excellent energy efficiency
• IP54 Rated - Suitable for damp or semi-outdoor areas like bathrooms or covered patios
• Flat Diffuser - Soft, comfortable light distribution
• Wide 100° Beam Angle - Broad, even light spread ideal for general lighting applications
• Sleek Silver Finish - Modern appearance to complement contemporary interiors
• IC-4 Rated - Safe for direct installation under insulation in accordance with Australian standards

Specifications

• Model: DL1560-SCTC13S01
• Power Consumption: 13W
• Input Voltage: 220-240V AC, 50/60Hz
• Colour Temperatures: 3000K / 4000K / 5000K (selectable)
• Lumen Output: 921 lm
• CRI: >80 (Ra)
• Beam Angle: 100°
• IP Rating: IP54
• Cut-Out Size: Ø90 - 100 mm
• Fitting Dimensions: Ø110 mm × 40.4 mm depth
• Light Source: Bridgelux SMD LED
• Housing Colour: Silver
• Dimming: Triac compatible
• Rating: IC-4 compliant

Applications

• General ceiling lighting for homes, apartments, and commercial spaces
• Kitchens, living areas, hallways, and bedrooms
• Bathrooms and semi-outdoor zones (covered patios, eaves)
• Retail shops, cafés, galleries, and hospitality venues
• Installations requiring adjustable colour temperatures and dimmable lighting

Combining flexibility, performance, and a sleek silver finish, the 3A Lighting ATLAS 4 13W LED Downlight Kit is a premium choice for modern lighting installations. Its wide beam, selectable colour temperatures, and energy-efficient design make it perfect for both new builds and retrofits.

All orders are dispatched within 1-2 days of ordering.

Delivery varies by location, please see the expected timeframe to receive your product below:

• Metro: 1-4 business days

• Regional: 3-7 business days

No delivery to PO Box addresses or Parcel Lockers.

If you are unavailable at the time of delivery re-delivery fees may apply.

Change of Mind Returns:

We want you to love your product so if you are not completely satisfied with your purchase let us know.

Most products come with a 30 day change of mind policy. If at any time within the first 30 days from purchase date you are not completely satisfied with your order, please contact us for return approval. Once received and inspected, we will facilitate an agreed resolution.

Please Note:

• Postage is paid by the customer

• The product must be returned in the original packaging, brand new in un-used condition

• We do not accept responsibility for return items until they reach our warehouse, so we strongly recommend using tracking and/or insurance for the delivery

• Fees may apply

Warranty Claims:

Most of our products are supported by a 12 month warranty. This warranty covers all manufacturer faults with the product. Some of our products may have a different warranty period, please check the product description for this. Should an issue arise with your order, please contact us to raise a warranty claim.

• Complete Kit Includes: LED Light Fitting, LED Driver and 2 Pin Flex & Plug
• 13W High Quality SMD LED Chip
• High Quality 270maH Driver
• Flat / Flush Style Fixed White Fitting
• IC-F Abutted & Covered Rating (you can cover the downlight with insulation, the LED driver sits ontop of insulation)
• Tri Colour - Choose between Warm White (3000K), Cool White (4000K) and Daylight (5700K) before you install the downlight!
• 850lm (Warm White), 880lm (Cool White), 900lm (Daylight)
• Dimmable LED Driver with Flex & Plug
• Compatible with major leading and trailing edge dimmers.
• 90-95mm Cut Out diamtere
• 104mm total diameter
• 90 Degree Beam Angle
• Frosted Diffuser (cant see the LED chips inside)
• Only 30mm height clearance required
• SAA Approved
• 3 Years Replacement Warranty
