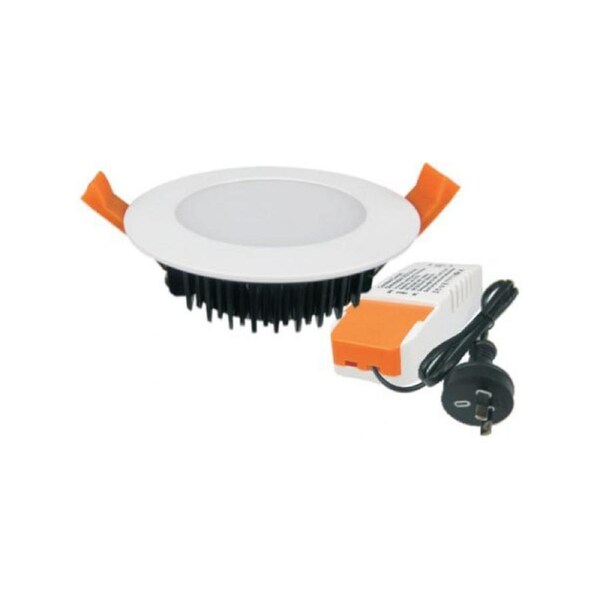

3A 13W Tri Colour Dimmable LED Downlight Kit (90mm Flush Style)

The 3A Lighting ATLAS 4 (DL1560-WH5C10S01) is a premium 13W LED downlight kit offering excellent energy efficiency, modern style, and versatile lighting performance. With triac dimming, five selectable colour temperatures, and an anti-glare diffuser, this downlight delivers tailored lighting for any room-enhanced by a clean white finish that blends seamlessly with most ceiling types.

Built to suit both residential and commercial applications, the ATLAS 4 features an IP54 rating, wide 100° beam angle, and IC-4 compliance, making it safe for use in insulated ceilings and damp areas.

Key Features

• Triac Dimmable - Compatible with standard dimmer switches for adjustable brightness
• Selectable Colour Temperature - Choose from 3000K, 3500K, 4000K, 5000K, or 5700K to suit any space
• High Light Output - Produces up to 888 lumens of bright, consistent light
• IP54 Rated - Resistant to dust and water splashes; suitable for bathrooms and semi-outdoor use
• Anti-Glare Diffuser - Flush style; Provides even, soft lighting while reducing visual discomfort
• Wide 100° Beam Angle - Ensures broad coverage for general-purpose lighting
• Neutral White Finish - Sleek and unobtrusive to complement most interior styles
• IC-4 Rated - Approved for installation under insulation in accordance with Australian standards

Specifications

• Model: DL1560-WH5C10S01
• Power Consumption: 13W
• Input Voltage: 220-240V AC, 50/60Hz
• Colour Temperatures: 3000K / 3500K / 4000K / 5000K / 5700K (selectable)
• Lumen Output: 888 lm
• CRI: >80 (Ra)
• Beam Angle: 100°
• IP Rating: IP54
• Cut-Out Size: Ø90-95 mm
• Fitting Dimensions: Ø110 mm × 50 mm depth
• Light Source: SMD LED
• Housing Colour: White
• Dimming: Triac compatible
• Rating: IC-4 compliant

Applications

• Living areas, bedrooms, hallways, and studies
• Kitchens, laundries, and bathrooms
• Covered outdoor areas (under eaves or verandas)
• Retail and hospitality fit-outs requiring stylish and functional lighting
• Energy-efficient upgrades or new home installations

With its high lumen output, selectable colour temperatures, and understated white finish, the 3A Lighting ATLAS 4 DL1560-WH5C10S01 offers the perfect combination of style, performance, and flexibility. It's the go-to choice for electricians and homeowners seeking reliable, modern downlighting.

All orders are dispatched within 1-2 days of ordering.

Delivery varies by location, please see the expected timeframe to receive your product below:

• Metro: 1-4 business days

• Regional: 3-7 business days

No delivery to PO Box addresses or Parcel Lockers.

If you are unavailable at the time of delivery re-delivery fees may apply.

Change of Mind Returns:

We want you to love your product so if you are not completely satisfied with your purchase let us know.

Most products come with a 30 day change of mind policy. If at any time within the first 30 days from purchase date you are not completely satisfied with your order, please contact us for return approval. Once received and inspected, we will facilitate an agreed resolution.

Please Note:

• Postage is paid by the customer

• The product must be returned in the original packaging, brand new in un-used condition

• We do not accept responsibility for return items until they reach our warehouse, so we strongly recommend using tracking and/or insurance for the delivery

• Fees may apply

Warranty Claims:

Most of our products are supported by a 12 month warranty. This warranty covers all manufacturer faults with the product. Some of our products may have a different warranty period, please check the product description for this. Should an issue arise with your order, please contact us to raise a warranty claim.

• Complete Kit Includes: LED Light Fitting, LED Driver and 2 Pin Flex & Plug
• 13W High Quality SMD LED Chip
• High Quality 270maH Driver
• Flat / Flush Style Fixed White Fitting
• IC-F Abutted & Covered Rating (you can cover the downlight with insulation, the LED driver sits ontop of insulation)
• Tri Colour - Choose between Warm White (3000K), Cool White (4000K) and Daylight (5700K) before you install the downlight!
• 850lm (Warm White), 880lm (Cool White), 900lm (Daylight)
• Dimmable LED Driver with Flex & Plug
• Compatible with major leading and trailing edge dimmers.
• 90-95mm Cut Out diamtere
• 104mm total diameter
• 120 Degree Beam Angle
• Frosted Diffuser (cant see the LED chips inside)
• Only 30mm height clearance required
• SAA Approved
• 3 Years Replacement Warranty
