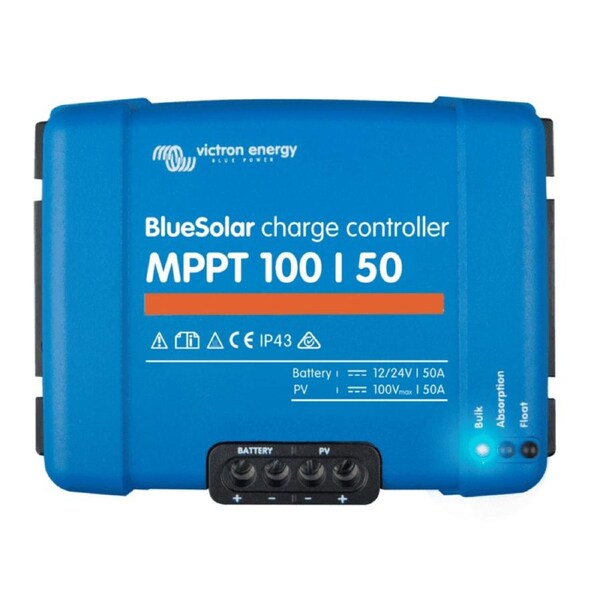

Victron 12/24V 50A BlueSolar MPPT 100/50 Non-Bluetooth Solar Charge Controller
For Bluetooth connectivity, please explore our SmartSolar range which includes built-in Bluetooth support, ideal for wireless monitoring and programming. If Bluetooth is required using the BlueSolar range, a VE.Direct to Bluetooth Dongle is required, purchased separately.
Unlock superior energy harvesting with the Victron BlueSolar 100/50 MPPT Controller, even under clouded skies. Benefit from up to 30% increased energy compared to PWM controllers and outperform slower MPPT models by up to 10%. This ultra-fast tracking technology ensures that you get the most out of your solar panels at all times.
Experience the advanced Maximum Power Point Detection of the BlueSolar 100/50, which adeptly handles partial shading. Unlike conventional systems that may settle for less efficient power points, our innovative algorithm seeks out the optimum MPP, ensuring you harness maximum energy and enhance your system's yield.
Without a Fan Enjoy more than 98% efficiency with the BlueSolar 100/50 - a fanless design that delivers full power output up to 40°C (104°F). With outstanding conversion efficiency, your solar energy system will operate smoothly and reliably.
Tailor your solar charging with the BlueSolar's flexible charge algorithm. Choose from eight pre-set modes or customize your settings via our software for a perfectly adjusted charge algorithm that fits your specific energy requirements.
Your system is safeguarded with extensive electronic protection features, including over-temperature protection, PV short circuit, reverse polarity protection, and more. This ensures long-term reliability and safety for your solar energy setup.
The built-in temperature sensor in the BlueSolar 100/50 adjusts charging for maximum efficiency, accounting for environmental temperature variations, thus prolonging battery life and performance.
Take the leap towards efficient solar charging today with the Victron BlueSolar MPPT Solar Controller and harness the full potential of the sun's power
Orders will be sent via Australia Post in most instances. If the order cannot be sent via Australia Post (due to size, weight, etc) then a courier service will used. Delivery times vary by location. Orders will be dispatched from our Melbourne Warehouse within 1 business day.
Returns/Exchanges are accepted on all products for 30 days after purchase. Warranty time frames vary from product to product and will be honoured in line with the manufacturers warranty statements.
If an item arrives and is not as described or not in working order, please contact us through the messaging system and will arrange a refund or re-delivery (customer chooses). Incorrect/Faulty item must be returned to Solar 4 RVs. Postage costs will be covered by Solar 4 RVs.
Change of Mind returns will be accepted if the item is returned to Solar 4 RVs in ‘as new’ (including un-opened packaging) condition. Customer to cover postage costs to return the item. Customer can choose from refund (100% less postage) or exchange.
Warranty claims must come through Solar 4 RVs, not the manufacturer. If we require the item to be returned to us, postage will be at the buyers expense. If the warranty claim is approved, a replacement item will be dispatched free of charge.
Before initiating any returns, please contact Solar 4 RVs through the messaging system.
| Feature | MPPT 100/50 |
|---|---|
| Battery voltage | 12/24V Auto Select |
| Rated charge current | 50A |
| Nominal PV power, 12V (1a,b) | 700W |
| Nominal PV power, 24V (1a,b) | 1400W |
| Maximum PV open circuit voltage | 100V |
| Max. PV short circuit current (2) | 60A |
| Maximum efficiency | 98% |
| Self-consumption | 12V: 30 mA / 24V: 20 mA |
| Charge voltage 'absorption' | Default setting: 14.4V / 28.8V (adjustable) |
| Charge voltage 'float' | Default setting: 13.8V / 27.6V (adjustable) |
| Charge algorithm | multi-stage adaptive |
| Temperature compensation | -16 mV / °C resp. -32 mV / °C |
| Operating temperature | -30 to +60°C (full rated output up to 40°C) |
| Humidity | 95%, non-condensing |
| Data communication port | VE.Direct |
| Enclosure | |
| Colour | Blue (RAL 5012) |
| Power terminals | 16 mm² / AWG6 |
| Protection category | IP43 (electronic components), IP22 (connection area) |
| Weight | 1.3 kg |
| Dimensions (h x w x d) | 130 x 186 x 70 mm |
| Standards | |
| Safety | EN/IEC 62109-1, UL 1741, CSA C22.2 |
1a) If more PV power is connected, the controller will limit input power.
1b) The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V.
2) A PV array with a higher short circuit current may damage the controller.
