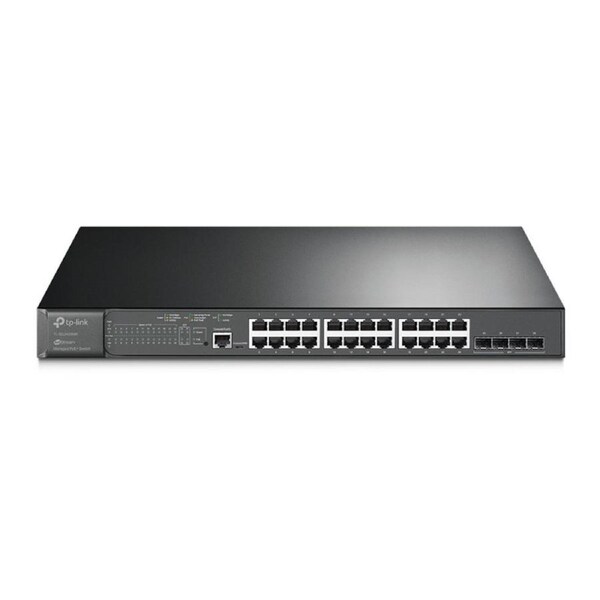

TP-Link SG3428MP JetStream 28-Port Gigabit L2 Managed Switch with 24-Port PoE+
TP-Link SG3428MP JetStream 28-Port Gigabit L2 Managed Switch with 24-Port PoE+
- 384 W PoE Budget: 24x 802.3at/af-compliant PoE+ ports with a total power supply of 384 W*.
- Full Gigabit Ports: 24x gigabit PoE+ ports and 4x gigabit SFP Slots provide high-speed connections.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
- Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
- Static Routing: Helps route internal traffic for more efficient use of network resources.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
HARDWARE FEATURES
- Interface :• 24x 10/100/1000Mbps RJ45 Ports
• 4x Gigabit SFP Slots
• 1x RJ45 Console Port
• 1x Micro-USB Console Port - Fan Quantity :2
- Power Supply :100-240 V AC~50/60 Hz
- PoE Ports (RJ45) :• Standard: 802.3at/af compliant
• PoE+ Ports: 24 Ports, up to 30 W per port
• Power Budget: 384 W* - Dimensions ( W x D x H ) :17.3 x 13.0 x 1.7 in (440 x 330 x 44 mm)
- Mounting :Rack Mountable
- Max Power Consumption :• V1: 463.8 W (110 V/60 Hz) (with 384 W PD connected); 31.0 W (110 V/60 Hz) (no PD connected)
• V2: 465.8 W (110 V/60 Hz) (with 384 W PD connected); 34.4 W (110 V/60 Hz) (no PD connected)
• V3: 442.1 W (220 V/50 Hz) (with 384 W PD connected)
• V4: 460.8 W (110 V/60 Hz) (with 384 W PD connected)
• V5: 456.4 W (110 V/60 Hz) (with 384 W PD connected) - Max Heat Dissipation :• V1: 1582.49 BTU/h (110 V/60 Hz) (with 384 W PD connected); 105.78 BTU/h (110 V/60 Hz) (no PD connected)
• V2: 1589.31 BTU/hr (110 V/60 Hz) (with 384 W PD connected); 117.38 BTU/hr (110 V/60 Hz) (no PD connected)
• V3: 1508.67 BTU/hr (220 V/50 Hz) (with 384 W PD connected)
• V4: 1572.48 BTU/hr (110 V/60 Hz) (with 384 W PD connected)
• V5: 1557.47 BTU/hr (110 V/60 Hz) (with 384 W PD connected)
PERFORMANCE
- Switching Capacity :56 Gbps
- Packet Forwarding Rate :41.66 Mpps
- MAC Address Table :• V1: 8K
• V2 and above: 16K - Packet Buffer Memory :4.1 Mbit
- Jumbo Frame :9 KB
SOFTWARE FEATURES
- Quality of Service :• 8 priority queues
• 802.1p CoS/DSCP priority
• Queue scheduling
- SP (Strict Priority)
- WRR (Weighted Round Robin)
- SP+WRR
• Bandwidth Control
- Port/Flow based Rating Limiting
• Smoother Performance
• Action for Flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark - L2 and L2+ Features :• Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports per group
• Spanning Tree Protocol
- 802.1d STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect
• Loopback Detection
- Port-based
- VLAN based
• Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention
• Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Tx/Rx/Both - L2 Multicast :• Supports 511 (IPv4, IPv6) IGMP groups
• IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- IGMP Authentication
• IGMP Authentication
• MVR
• MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
- Limited IP Multicast
• Multicast Filtering: 256 profiles and 16 entries per profile - VLAN :• VLAN Group
- Max 4K VLAN Groups
• 802.1Q Tagged VLAN
• MAC VLAN: 30 Entries (12 Entries for TL-SG3428MP V1.0)
• Protocol VLAN: Protocol Template 16, Protocol
VLAN 16
• Private VLAN
• GVRP
• VLAN VPN (QinQ)
- Port-Based QinQ
- Selective QinQ
• Voice VLAN - Access Control List :• Time-based ACL
• MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
• IP ACL
-Source IP
- Destination IP
- Fragment
- IP Protocol
- TCP Flag
- TCP/UDP Port
- DSCP/IP TOS
- User Priority
• Combined ACL
• Packet Content ACL
• IPv6 ACL
• Policy
- Mirroring
- Redirect
- Rate Limit
- QoS Remark
• ACL apply to Port/VLAN - Security :• IP-MAC-Port Binding
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard
• IPv6-MAC-Port Binding
- DHCPv6 Snooping
- ND Detection
- IPv6 Source Guard
• DoS Defend
• Static/Dynamic Port Security
- Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
- kbps/ratio/pps control mode
• IP/Port/MAC based access control
• 802.1X
- Port based authentication
- Mac based authentication
- VLAN Assignment
- MAB
- Guest VLAN
- Support Radius authentication and accountability
• AAA (including TACACS+)
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2 - IPv6 :• IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery (MLD) Snooping
• IPv6 ACL
• IPv6 Interface
• Static IPv6 Routing
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP - L3 Features :• 16 IPv4/IPv6 Interfaces
• Static Routing
- 48 static routes
• Static ARP
- 128 static entries
• 316 ARP Entries (512 ARP Entries for TL-SG3428 V2.0 & TL-SG3428MP V2.0)
• Proxy ARP
• Gratuitous ARP
• DHCP Server
• DHCP Relay
- DHCP interface relay
- DHCP VLAN relay
• DHCP L2 Relay - Advanced Features :• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule - MIBs :• MIB II (RFC1213)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIBs
• RMON MIB(RFC1757, rmon 1,2,3,9)
MANAGEMENT
- Omada App :Yes, through
• Omada Cloud-Based Controller (Not Supported by TL-SG3428MP v3)
• OC300
• OC200
• Omada Software Controller - Centralized Management :• Omada Cloud-Based Controller (Not Supported by TL-SG3428MP v3)
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller - Cloud Access :Yes, through
• Omada Cloud-Based Controller (Not Supported by TL-SG3428MP v3)
• OC300
• OC200
• Omada Software Controller - Zero-Touch Provisioning :Yes. Requiring the use of Omada Cloud-Based Controller (Supported byTL-SG3428MP v1, v2, v4 and above, while is not supported by TL-SG3428MP v3)
- Management Features :• Web-based GUI
• Command Line Interface (CLI) through console port, telnet
• SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP AutoInstall
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• Password Recovery
• SNTP
• System Log
OTHERS
- Certification :CE, FCC, RoHS
- Package Contents :• TL-SG3428MP Switch
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet - System Requirements :Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
- Environment :• Operating Temperature: 0-45 ? (32-113 ?);
• Storage Temperature: -40-70 ? (-40-158 ?)
• Operating Humidity: 10-90% RH non-condensing
• Storage Humidity: 5-90% RH non-condensing
