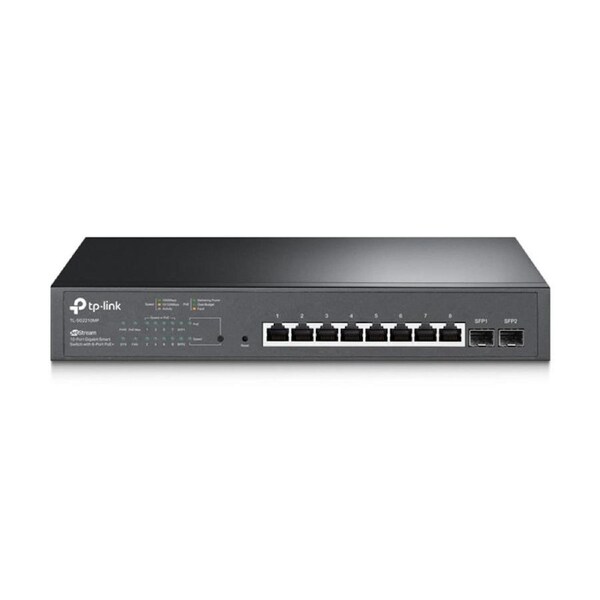

TP-Link SG2210MP 10-Port Gigabit Smart Switch with 8-Port PoE+ 1xFan 14.9Mpps

TP-Link SG2210MP JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+

• 150 W PoE Budget: 8x 802.3at/af-compliant PoE+ ports with a total power supply of 150 W*.
• Full Gigabit Ports: 8x gigabit PoE+ ports and 2x gigabit SFP Slots provide high-speed connections.
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralised Cloud Management, and Intelligent Monitoring.
• Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
• Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.
• Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

HARDWARE FEATURES

• Standards and Protocols :IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
• Interface :• 8x 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX)
  • 2x 100/1000 Mbps SFP Slots
• Network Media :• 10BASE-T: UTP/STP category 3, 4, 5 cable (maximum 100m)
  • 100BASE-TX/1000Base-T: UTP/STP category 5, 5e or above cable (maximum 100m)
  • 100BASE-FX: MMF, SMF
  • 1000BASE-X: MMF, SMF

• Fan Quantity :1
• Physical Security Lock :Yes
• Power Supply :100-240V AC, 50/60Hz
• PoE Ports (RJ45) :• Standard: 802.3at/af compliant
  • PoE+ Ports: 8 Ports
  • PoE Power Budget: 150 W*
• Dimensions ( W x D x H ) :11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm)
• Mounting :Rackmount/Desktop
• Max Power Consumption :• V1: 173.9 W (110 V/60 Hz) (with 150 W PD connected); 12.2 W (110 V/60 Hz) (no PD connected)
  • V2: 169.5 W (220 V/50Hz) (with 150 W PD connected)
  • V3: 175.3 W (110 V/60Hz) (with 150 W PD connected)
  • V4: 174.2 W (110V/60Hz) (with 150 W PD connected)
• Max Heat Dissipation :• V1: 41.63 BTU/h (with no PD connected); 539.35 BTU/h (with 150 W PD connected)
  • V2: 578.42 BTU/hr (220V/50 Hz) (with 150 W PDconnected)
  • V3: 597.8 BTU/hr (110 V/60 Hz) (with 150 W PD connected)
  • V4: 594.46 BTU/hr (110V/60Hz) (with 150 W PD connected)

PERFORMANCE

• Switching Capacity :20 Gbps
• Packet Forwarding Rate :14.9 Mpps
• MAC Address Table :8K
• Packet Buffer Memory :4.1 Mbit
• Jumbo Frame :9 KB

SOFTWARE FEATURES

• Quality of Service :• 802.1p CoS/DSCP priority
  • 8 priority queues
  • Priority Schedule Mode
  - SP (Strict Priority)
  - WRR (Weighted Round Robin)
  • Queue Weight Config
  • Bandwidth Control
  - Port/Flow based Rating Limit
  • Smoother Performance
  • Storm Control
  - Multiple Control Modes(kbps/ratio)
  - Broadcast/Multicast/Unknown-Unicast Control
• L2 and L2+ Features :• DHCP Relay
  - DHCP VLAN Relay
  • DHCP L2 Relay
  • Link Aggregation
  - Static link aggregation
  - 802.3ad LACP
  - Up to 8 aggregation groups and up to 8 ports
  per group
  • Spanning Tree Protocol
  - 802.1D STP
  - 802.1w RSTP
  - 802.1s MSTP
  - STP Security: TC Protect, BPDU Filter/Protect,
  Root Protect
  • Loopback Detection
  • Flow Control
  - 802.3x Flow Control
  • Mirroring
  - Port Mirroring
  - CPU Mirroring
  - One-to-One
  - Many-to-One
  - Flow-Based
  - Ingress/Egress/Both
  • Device Link Detect Protocol (DLDP)
  • 802.1ab LLDP/ LLDP-MED
• L2 Multicast :• 511 IPv4, IPv6 shared multicast groups
  • IGMP Snooping
  - IGMP v1/v2/v3 Snooping
  - Fast Leave
  - IGMP Snooping Querier
  - Static Group Config
  • Multicast VLAN Registration (MVR)
  • Multicast Filtering
  • MLD Snooping
  - MLD v1/v2 Snooping
  - Fast Leave
  - MLD Snooping Querier
  - Static Group Config
  • Limited IP Multicast (256 profiles and 16 entries per profile)

• VLAN :• VLAN Group
  - Max. 4K VLAN Groups
  • 802.1Q tag VLAN
  • MAC VLAN: 12 Entries
  • Protocol VLAN
  • GVRP
  • Voice VLAN
• Access Control List :• Support up to 230 entries
  • Time-Range
  - Time Slice
  - Week Time-Range
  - Absolute Time-Range
  - Holiday
  • Time-based ACL
  • MAC ACL
  - Source MAC
  - Destination MAC
  - VLAN ID
  - User Priority
  - Ether Type
  • IP ACL
  - Source IP
  - Destination IP
  - IP Protocol
  - TCP Flag
  - TCP/UDP Source Port
  - TCP/UDP Destination Port
  - DSCP/IP TOS
  • IPv6 ACL
  • Combined ACL
  • Rule Operation
  - Permit/Deny
  • Policy Action
  - Mirror
  - Rate Limit
  - Redirect
  - QoS Remark
  • ACL Rules Binding
  - Port Binding
  - VLAN Binding
  • Actions for flows
  - Mirror (to supported interface)
  - Redirect (to supported interface)
  - Rate Limit
  - QoS Remark
• Security :• AAA
  • 802.1X
  - Port based authentication
  - MAC (Host) based authentication
  - Authentication Method includes PAP/EAP-MD5
  - MAB
  - Guest VLAN
  - Support Radius authentication and
  accountability
  • IP/IPv6-MAC Binding
  - 512 Binding Entries
  - DHCP Snooping
  - DHCPv6 Snooping
  - ARP Inspection
  - ND Detection
  • IP Source Guard
  - 253 Entries
  - Source IP+Source MAC
  • IPv6 Source Guard
  - 183 Entries
  - Source IPv6 Address+Source MAC
  • DoS Defend
  • Static/Dynamic/Permanent Port Security
  - Up to 64 MAC addresses per port
  • Broadcast/Multicast/Unicast Storm Control
  - kbps/ratio control mode
  • Port Isolation
  • Secure web management through HTTPS with
  SSLv3/TLS 1.2
  • Secure Command Line Interface (CLI)
  management with SSHv1/SSHv2
  • IP/Port/MAC based access control
• IPv6 :• IPv6 Static Routing and ACL
  • IPv6 Dual IPv4/IPv6
  • IPv6 Interface
  • Multicast Listener Discovery (MLD) Snooping
  • IPv6 neighbor discovery (ND)
  • Path maximum transmission unit (MTU) discovery
  • Internet Control Message Protocol (ICMP)
  version 6
  • TCPv6/UDPv6
  • IPv6 applications
  - DHCPv6 Client
  - Ping6
  - Tracert6
  - Telnet(v6)
  - IPv6 SNMP
  - IPv6 SSH
  - IPv6 SSL
  - Http/Https
  - IPv6 TFTP
• Advanced Features :• Automatic Device Discovery
  • Batch Configuration
  • Batch Firmware Upgrading
  • Intelligent Network Monitoring
  • Abnormal Event Warnings
  • Unified Configuration
  • Reboot Schedule
• MIBs :• MIB II (RFC1213)
  • Bridge MIB (RFC1493)
  • P/Q-Bridge MIB (RFC2674)
  • Radius Accounting Client MIB (RFC2620)
  • Radius Authentication Client MIB (RFC2618)
  • Remote Ping, Traceroute MIB (RFC2925)
  • Support TP-Link private MIBs
  • RMON MIB(RFC1757, rmon 1,2,3,9)

MANAGEMENT

• Omada App :Yes, through
  • Omada Cloud-Based Controller (Not Supported by TL-SG2210MP v2)
  • OC300
  • OC200
  • Omada Software Controller

• Centralized Management :• Omada Cloud-Based Controller (Not Supported by TL-SG2210MP v2)
  • Omada Hardware Controller OC300
  • Omada Hardware Controller OC200
  • Omada Software Controller
• Cloud Access :Yes, through
  • Omada Cloud-Based Controller (Not Supported by TL-SG2210MP v2)
  • OC300
  • OC200
  • Omada Software Controller

• Zero-Touch Provisioning :Yes. Requiring the use of Omada Cloud-Based Controller (Supported by TL-SG2210MP v1, v3 and above, while is not supported by TL-SG2210MP v2)
• Management Features :• Web-based GUI
  • Command Line Interface (CLI) through telnet
  • SNMPv1/v2c/v3
  • SNMP Trap/Inform
  • RMON (1,2,3,9 groups)
  • SDM Template
  • DHCP/BOOTP Client
  • Dual Image, Dual Configuration
  • CPU Monitoring
  • Cable Diagnostics
  • EEE
  • SNTP
  • System Log

OTHERS

• Certification :CE, FCC, RoHS
• Package Contents :• TL-SG2210MP
  • Power Cord
  • Installation Guide
  • Rackmount Kit
  • Rubber Feet

• System Requirements :Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
• Environment :• Operating Temperature: 0-50 ? (32-122 ?);
  • Storage Temperature: -40-70 ? (-40-158 ?)
  • Operating Humidity: 10-90% RH non-condensing
  • Storage Humidity: 5-90% RH non-condensing
