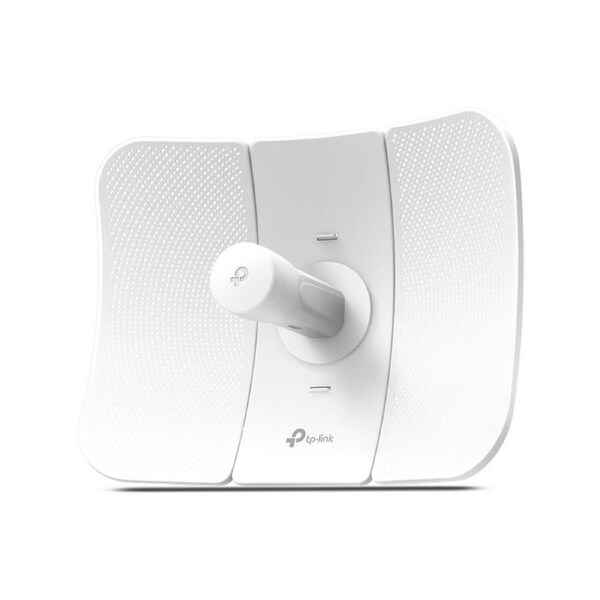

TP-Link CPE710 5GHz AC 867Mbps 23dBi High-gain Directional Outdoor CPE IP65
TP-Link CPE710 5GHz AC 867Mbps 23dBi Outdoor CPE
HARDWARE FEATURES
- Processor :Qualcomm 750MHz CPU, MIPS 74Kc
- Memory :128 MB DDR2 RAM, 16 MB Flash
- Interface :1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)
1 Reset Button - Power Supply :Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
Voltage range: 16-27V DC - Dimensions ( W x D x H ) :366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)
- Antenna Gain :23 dBi
- Antenna Beamwidth :9° (Azimuth)/7° (Elevation)
- Protection :15 KV ESD Protection
6 KV Lightning Protection - Enclosure :Material: Outdoor PC stabilized plastic
Weatherproof: IP65 water and dust proof design
WIRELESS FEATURES
- Wireless Standards :IEEE 802.11a/n/ac
- Wireless Speeds :Up to 867 Mbps (80 MHz, Dynamic)
Up to 400 Mbps (40 MHz, Dynamic)
Up to 173.4 Mbps (20 MHz, Dynamic) - Frequency :5.15-5.85 GHz
- Transmit Power :Max. 27 dBm (Adjustable power by 1dBm)
SOFTWARE FEATURES
- Network Configuration :WAN: Static/ Dynamic/ PPPoE
LAN: Static/ Dynamic/ DHCP
Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger
Security: SPI Firewall/ Ping Forbidden/ DoS Protection
Access Control
Static Routing
Bandwidth Control
IP & MAC Binding - Wireless Configurations :Selectable Channel Width: 20/40/80MHz
Auto Channel Selection
Transmit Power Control
Dynamic Frequency Selection(DFS)
WDS Enable/ Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
SSID Broadcast Enable/ Disable
Multi-SSID with VLAN Tagging(AP Mode only)
Distance/ ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
Beacon Interval/ RTS Threshold/ Fragmentation Threshold/ DTIM Interval/ AP Isolation/ Short GI/ Wi-Fi Multimedia
Long Range PtP - Management :Discovery and Remote Management via Pharos Control application
HTTP/ HTTPS Web-based management
System log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server - System Tools :Indicators:Signal Strength/ Noise/ Transmit CCQ/ CPU/ Memory
Monitors: Throughput/ Stations/ Interfaces/ ARP/ Routes/ WAN/ DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
Antenna Alignment - System-level Optimizations :Optimized IGMP Snooping / Proxy for multicast applications
POE ADAPTER FEATURES
- Dimensions(W x D x H) :85.8x43.9x29.7 mm
- Interfaces :1 AC Jack with Earth Ground
1x 10/100/1000 Mbps Shielded Ethernet Port (Power + Data)
1x 10/100/1000 Mbps Shielded Ethernet Port (Data) - Button :Remote Reset Button
- Power Status LEDs :Green
- Input :100-240VAC, 50/60Hz
- Output :24VDC, 0.6A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) - Efficiency :>84.29%
- Certifications :CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
OTHERS
- Certification :CE, FCC, RoHS, IP65, IC
- Package Contents :Outdoor Wireless CPE
24V 0.5A Passive PoE Adapter
Pole Mounting Kits
AC Power Cord
Installation Guide - System Requirements :Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended. - Environment :Operating Temperature: -40?~70? (-40?~158?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
