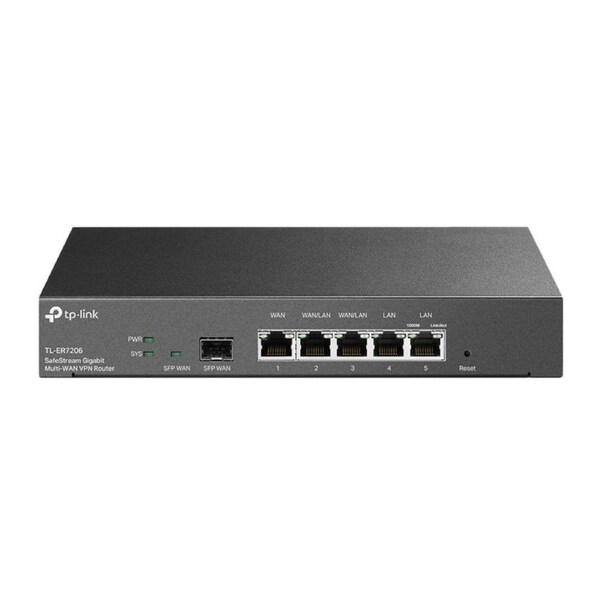

TP-Link ER7206 SafeStream Gigabit Multi-WAN VPN Router, Up to 4 WAN Ports 1x SFP

TP-Link TL-ER7206 SafeStream Gigabit Multi-WAN VPN Router

• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
• Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
• Gigabit Ports: 1 gigabit SFP and 5-gigabit RJ45 ports provide high-speed wired connectivity.
• Up to 4 WAN Ports: 1 gigabit SFP WAN port, 1 gigabit RJ45 WAN port, 2 gigabit WAN/LAN ports optimize bandwidth usage.
• Highly Secure VPN: Supports up to 100x LAN-to-LAN IPsec, 50x OpenVPN*, 50x L2TP, and 50x PPTP VPN connections.
• Abundant Security Features: Advanced firewall policies, DoS defence, IP/MAC/URL filtering, and more security functions protect your network and data.

HARDWARE FEATURES

• Standards and Protocols :• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q
  • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP

• Interface :• 1 Fixed Gigabit SFP WAN Port
  • 1 Fixed Gigabit RJ45 WAN Port
  • 2 Fixed Gigabit RJ45 LAN Ports
  • 2 Changeable Gigabit RJ45 WAN/LAN Ports
• Network Media :• 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
  EIA/TIA-568 100? STP (Max 100m)
  • 100BASE-TX: UTP category 5, 5e cable (Max 100m)
  EIA/TIA-568 100? STP (Max 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
• Button :Reset Button
• Power Supply :100-240 V~50/60 Hz
• Flash :SPI 4MB + NAND 128MB
• DRAM :512MB
• LED :PWR, SYS, SFP WAN, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
• Dimensions ( W x D x H ) :8.9 x 5.2 x 1.4 in (226 x 131 x 35 mm)


PERFORMANCE

• Concurrent Session :150,000
• New Sessions /Second :5,500
• NAT (Static IP) :940.3 Mbps / 940.2 Mbps
• NAT(DHCP) :940.3 Mbps / 940.4 Mbps
• NAT(PPPoE) :939.7 Mbps / 937.9 Mbps
• NAT (L2TP) :918.0 Mbps / 917.9 Mbps
• NAT (PPTP) :918.9 Mbps / 914.7 Mbps
• IPsec VPN Throughput (AES256) :291.6 Mbps
• IPsec VPN Throughput :291.6 Mbps
• L2TP VPN Throughput :Unencrypted: 1360.3 Mbps
  Encrypted: 202.3 Mbps
• PPTP VPN Throughput :Unencrypted: 1379.3 Mbps
  Encrypted: 115.6 Mbps
• 1,518 Byte Packet forwarding rate :81,274 pps / 81,274 pps

BASIC FUNCTIONS

• WAN Connection Type :• Static/Dynamic IP
  • PPPoE
  • PPTP
  • L2TP
• MAC Clone :Modify WAN/LAN MAC Address†
• DHCP :• DHCP Server
  • DHCP Address Reservation
  • Multi-IP Interfaces*
  • Multi-Net DHCP*
• IPv6 :Developing†
• VLAN :802.1Q VLAN
• IPTV :IGMP v2/v3 Proxy

ADVANCED FUNCTIONS

• ACL :IP/Port/Protocol/Domain Name Filtering
• Advanced Routing :• Static Routing
  • Policy Routing
• Bandwidth Control :• IP/Port-based Bandwidth Control
  • Guarantee & Limited Bandwidth
• Load Balance :• Intelligent Load Balance
  • Application Optimized Routing
  • Link Backup (Timing§, Failover)
  • Online Detection
• NAT :• One-to-One NAT§
  • Multi-Net NAT
  • Virtual Server
  • Port Triggering§
  • NAT-DMZ
  • FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
• Security :• SPI Firewall
  • VPN Passthrough
  • FTP/H.323/PPTP/SIP/IPsec ALG
  • DoS Defence, Ping of Death
  • Local Management
• Session Limit :IP-based Session Limit

VPN

• IPsec VPN :• 100 IPSec VPN Tunnels
  • LAN-to-LAN, Client-to-LAN
  • Main, Aggressive Negotiation Mode
  • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
  • IKEv1/v2*
  • MD5, SHA1 Authentication Algorithm
  • NAT Traversal (NAT-T)
  • Dead Peer Detection (DPD)
  • Perfect Forward Secrecy (PFS)
• PPTP VPN :• PPTP VPN Server
  • 10 PPTP VPN Clients
  • 50 Tunnels
  • PPTP with MPPE Encryption
• L2TP VPN :• L2TP VPN Server
  • 10 L2TP VPN Clients
  • 50 Tunnels
  • L2TP over IPSec
• OpenVPN :• OpenVPN Server*
  • 10 OpenVPN Clients*
  • 50 OpenVPN Tunnels*

SECURITY

• Filtering :WEB Group Filtering§
  URL Filtering
  Web Security§
• ARP Inspection :• Sending GARP Packets§
  • ARP Scanning§
  • IP-MAC Binding§
• Attack Defense :• TCP/UDP/ICMP Flood Defense
  • Block TCP Scan (Stealth FIN/Xmas/Null)
  • Block Ping from WAN
• Access Control :Source/Destination IP Based Access Control

AUTHENTICATION

• Web Authentication :• No Authentication
  • Simple Password*
  • Hotspot?Local User / Voucher* / SMS* / Radius*?
  • External Radius Sever
  • External Portal Sever*
  • Facebook*

MANAGEMENT

• Omada App :Yes
• Centralized Management :• Omada Cloud-Based Controller
  • Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
• Cloud Access :Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
• Service :Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
• Maintenance :• Web Management Interface
  • Remote Management
  • Export & Import Configuration
  • SNMP v1/v2c/v3*
  • Diagnostics (Ping & Traceroute)§
  • NTP Synchronize§
  • Syslog Support
• Management Features :• Automatic Device Discovery
  • Intelligent Network Monitoring
  • Abnormal Event Warnings
  • Unified Configuration
  • Reboot Schedule
  • Captive Portal Configuration
  • ZTP (Zero-Touch Provisioning)**

OTHERS

• Certification :CE, FCC, RoHS
• Package Contents :• TL-ER7206
  • Power Cord
  • Quick Installation Guide
• System Requirements :Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
• Environment :• Operating Temperature: 0-40 ? (32-104 ?);
  • Storage Temperature: -40-70 ? (-40-158 ?)
  • Operating Humidity: 10-90% RH non-condensing
  • Storage Humidity: 5-90% RH non-condensing
