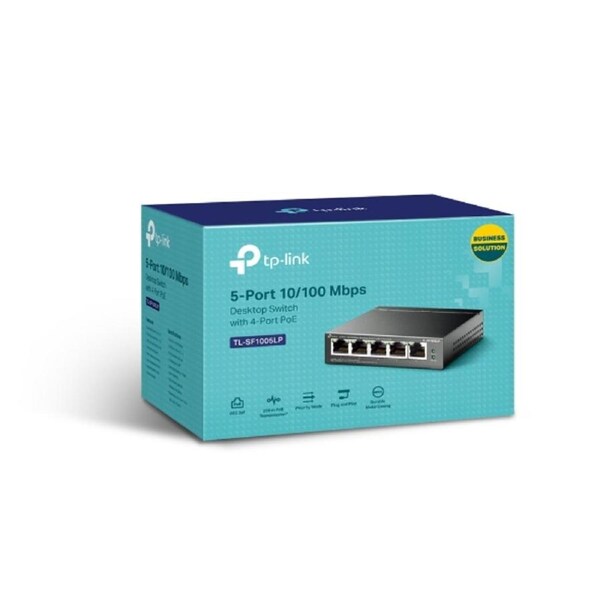

TP-Link TL-SF1005LP 5-Port 10/100Mbps Desktop Switch with 4-Port PoE •5× 10/100 Mbps RJ45 ports •4× PoE ports transfer data and power on individual cables •Works with IEEE 802.3af compliant PDs •Up to 250 m data and power transmitting range under Extend Mode** •Priority Mode ensures high priority of ports 1-2 to guarantee the quality of sensitive application •Supports PoE Power up to 41 W for all PoE ports* •Plug and play with no configuration required HARDWARE FEATURES Interface• 5× 10/100 Mbps RJ45 Ports (Ports 1-4 support 802.3af PoE) • AUTO Negotiation • AUTO MDI/MDIX Network Media• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) Fan QuantityFanless Physical Security LockYes External Power SupplyExternal Power Adapter (Output: 53.5 V DC / 0.81 A) Packet Forwarding Rate0.744 Mpps PoE Ports (RJ45)• Standard: 802.3 af compliant • PoE Ports: Ports 1-4 • Power Supply: 41 W Mac Address Table2K Jumbo Frame2 KB Switching Capacity1 Gbps Dimensions ( W x D x H )3.9×3.9×1.0 in (100×98×25 mm) Max Power Consumption• 1.9 W (220 V / 50 Hz, no PD connected) • 47 W (220 V / 50 Hz, with 41 W PD connected) Max Heat Dissipation• 6.48 BTU/h(no PD connected) • 160.27 BTU/h(with 41 W PD connected) SOFTWARE FEATURES Transmission MethodStore-And-Forward Advanced Functions• Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1-4) • Priority Mode Button (Ports 1-2) • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode OTHERS CertificationFCC, CE, RoHS Package Contents• TL-SF1005LP • Power Adapter • Installation Guide Environment• Operating Temperature: 0-40 ℃ (32-104 ℉) • Storage Temperature: -40-70 ℃ (-40-158 ℉) • Operating Humidity: 10-90% RH non-condensing • Storage Humidity: 5-90% RH
- Please allow 4 - 7 business days for delivery
- We ship across Australia, including major cities like: Sydney, Melbourne, Perth, Brisbane, Adelaide, Canberra, Newcastle and the Gold Coast
Warranty Policy
All our products come with a 12 month standard warranty. The warranty cover does not include for damage caused by accidents, misuse, neglect and lack of maintenance, usual wear and tear, natural disaster or any other external causes.
Returns Policy
If you are unsatisfied with your purchase or you have changed your mind, you can return the products to us in its original packaging and saleable conditions within 30 days from the date of order. Please note that the product must be unused and in brand new condition, otherwise the return will not be accepted. You will be responsible for covering the return costs and the initial shipping is non-refundable. 20% re-stocking fees applies on all orders where product is not faulty and/or damaged.
