Features

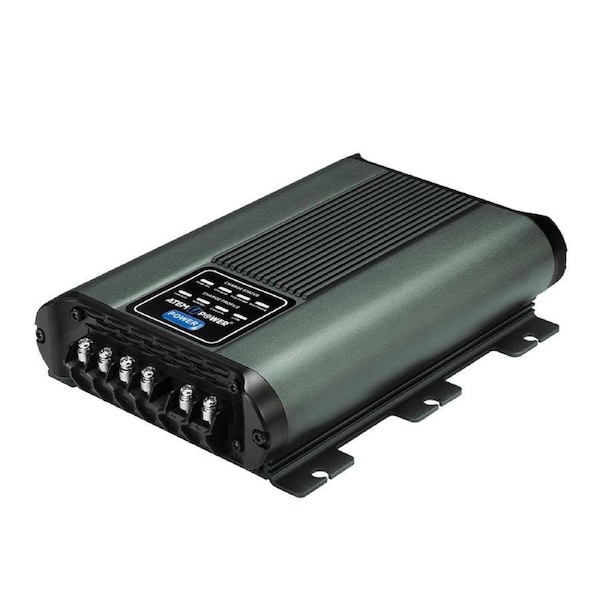

- Dual Input: This Charger is designed to effectively pull power from solar panel (up to 20A) or vehicle's alternator to charge your auxiliary battery.
- Multi-Stage Charging: This charger integrates standby, pre-charge, constant current charging, constant voltage charging, full charge and re-charge.
- Multi Battery Selection: This DC to DC charger by ATEM POWER is compatible with Lead Acid, AGM, Gel, calcium, Li-ion batteries.
- Built-In MPPT Regulator: The regulator is designed to harvest up more energy from the solar panel to reduce the load on your engine.
- Multiple Protection: It integrates over-charge, short circuit, over-temperature, thermal load, solar input overload, input/output reverse polarity protection.
- Internal Temperature Monitoring: This mechanism can effectively protect the circuit board to prolong the lifespan of the charger.
- Sturdy Construction: Sturdy aluminum housing is built to resist harsh conditions and quality wires are built for durability.
- Upgraded Charging Algorithm: This algorithm is designed to select the optimum charge mode and revive your discharged battery.
- Smart Alternator Compatible: The ACC wire can be wired to the ignition to adjust voltage cut off, which is suitable for modern vehicle,trailers and caravans.
- User Friendly Design: The LED indicator shows real-time stage of charging and memory function is integrated to make your charging more convenient.
Specifications
- Type: Multi Stage
- Warranty: 1 year
- Input: DC Battery: 12.5~16.0Volts
- Solar Input: 16.0-25.0 Volts
- Output/Charging Voltage: 14.4~15.4 Volts(Stops charging when alternator output or vehicle battery below 12.5 volts)
- Output Current: DC Output: 20A
- Solar Output: 20A
- Minimum Start Voltage: 2.5 Volts-For battery being charged
- Soft Start: Yes
- Soft Charge Current: DCDS20@20A
- Bulk Charge Voltage: 14.7V(AGM/Gel)14.4V(Lead Acid)15.4V(Calcium)14.4V(Li-ion)
- Absorption: Constant voltage with automatic amperage control
- Equalisation: Automatic
- Float Charge Voltage: 13.5V(AGM/Gel)13.5V(Lead Acid)13.5V(Calcium)
- Float Charge Current: 100mA
- Battery Range: 60 to 600Ah
- 0-1 Metres: 12AWG
- 1-5 Metres: 8 AWG
- 5 Metres+: 6 AWG
- Package contents: 1x ATEM POWER 20A DC-DC Charger, 1x Manual
Please note
- Please allow some leeway in size dimensions due to hand measurements.
