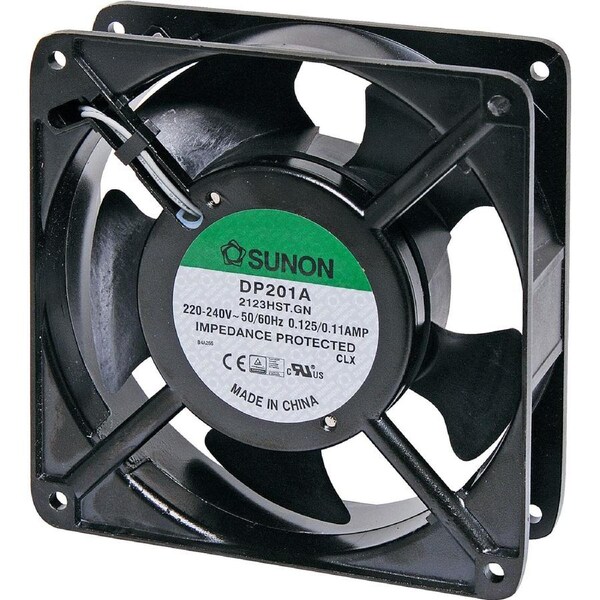

Sunon 120mm 240VAC Sleeve Bearing Cooling Fan with Diecast Aluminium Frame
Sunon DP201A-2123HST.GN 240V AC 120mm Sleeve Bearing Cooling Fan with diecast aluminium frame. Designed for long-life and minimal noise operation. Sunon® fans are manufactured to a very high standard and hold CSA and UL listings. Altronics has been a Sunon distributor for many years and have found them to be of excellent overall quality and reliability.
Mechanical Characteristics
- Motor Design: Shaded pole motor construction
- Motor Protection: Impedance protected
- Bearing System: Lubricated sleeve bearing system
- Frame Material:Die-cast aluminium
- Blade Material: Thermoplastic PBT of UL94V-0
- Direction of Rotation: Counter clockwise viewed from the front of the fan blade
- Connection: Spade terminals (2.8mm)
- Mounting Holes: 8x 4.3mm holes
- Weight: 550g
- Dimensions: 120 x 120 x 38mm
Electrical Characteristics
- Rated Voltage: 220-240V AC at 50/60Hz
- Rated Current: 0.125/0.11A
- Rated Power: 20/19W
- Operating Voltage Range: 185-245V AC
- Starting Voltage: 185V AC (25°C Power On/Off
- Operating Temperature: -10°C ~ +70°C
- Storage Temperature: -40°C ~ +70°C
Performance Characteristics
- Rated Speed: 2550/2900 RPM ±10%
- Air Flow: 85/105 CFM
- Static Pressure: 0.25/0.30 Inch-H2O
- Noise Level: 43/48dB (A)
- Insulation Resistance: 500MΩ (min) at 500V DC
- Dielectric Strength: 1800V AC for one second
*Specifications are subject to change without notice.
Note: Other models are available for your specific OEM requirements, please contact us for details.
