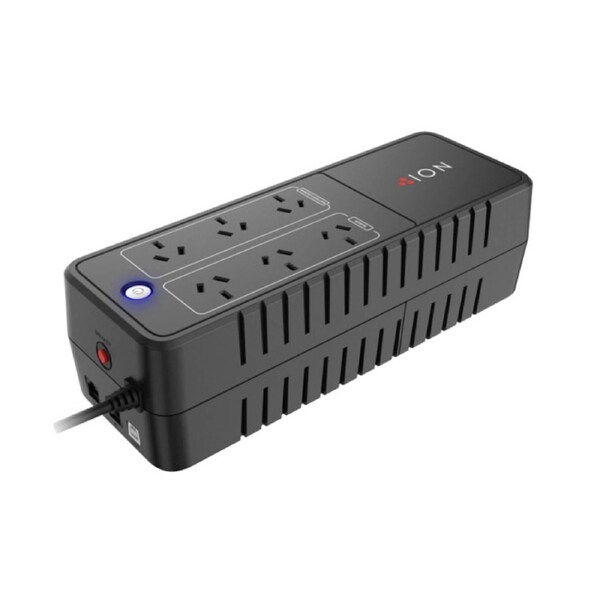

ION F10 850VA Surge & Power Board UPS 6 x Outlet 3 Surge + 3 Power

• Output
• Output Power Capacity - 490W/850VA
• Max Configurable Power - 490W/850VA
• Nominal Voltage (Batt.mode) - 220-240Vac
• Frequency (Batt.mode) - 50/60±1% Hz
• Waveform (Batt.mode) - Simulated Sinewave
• THDv - ≤ 3% at linear load, ≤5% at non-linear load
• Transfer Time - 4ms typical
• Overload Protection - Circuit breaker or inner firmware protection


• Input
• Nominal Input Voltage - 220-240Vac
• Voltage Range - 180-270Vac
• Frequency - 50/60Hz (Auto sensing)


• Indicators
• Display - LED
• Alarm - Batt. Mode, low battery, overload, fault, etc.


• Battery
• Battery Voltage - 12V
• Battery Type - 5.6AH
• Total Battery Quantity - 1
• Recharge Time (to 90%) - 8H
• Charger Current - 0.7A


• UPS Physical
• Maximum Height - 90mm
• Maximum Width - 110mm
• Maximum Depth - 309mm
• Net Weight - 3kg


• Communication
• USB - Yes
• RJ 11/45 - Yes


• Management
• Auto Recharge - Yes
• Auto Restart - Yes
• Power Management Software - Yes


• Environment
• Operation Temperature - 0-40°C
• Operation Humidity - 0-90% non-condensing


• Conformance
• Approvals - CE
• Standard Warranty - 2 Year Advanced Replacement
