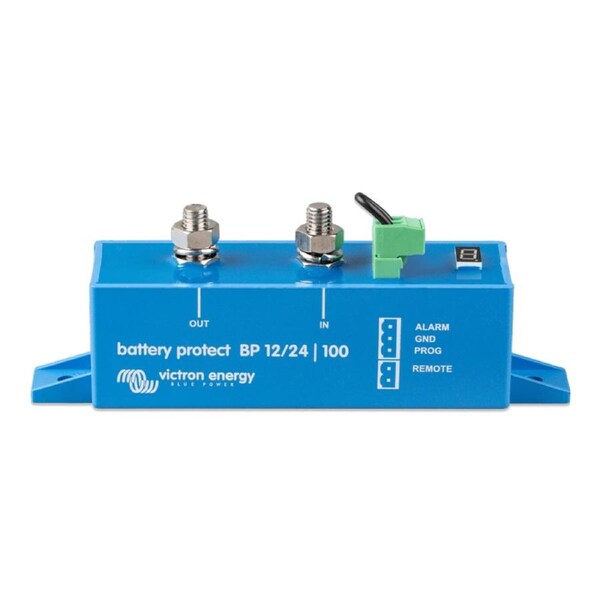

Victron Battery Protect 12/24V-100A Low Voltage Disconnect

Note: "Victron Battery Protect" units are NOT Bluetooth. See "Victron Smart Battery Protect" units if Bluetooth is required.

The Victron Battery Protect is an essential device for safeguarding your vehicle's battery from complete discharge, thereby extending its lifespan. It efficiently disconnects the battery from non-essential loads, like lights or a refrigerator, before they fully drain the battery or when the power is too low for engine cranking.

Uniquely designed as a uni-directional device, the BatteryProtect handles current in one direction - either to a load or from a charger, but not both simultaneously. This function is ideal for ensuring the safe flow of current and protecting sensitive onboard equipment from over-voltage.

This device intelligently auto-detects system voltage, whether 12V or 24V, for seamless integration into various setups. The user-friendly programming allows you to set engagement and disengagement at different voltages, indicated by a clear display.

Incorporating a specific setting for Li-ion batteries, the BatteryProtect can be controlled by the VE.Bus BMS. It's also ideal as a charge interrupter between a battery charger and a Li-ion battery, as detailed in the connection diagram in the manual.

With its low current consumption, the BatteryProtect is crucial for Li-ion batteries, especially after a low voltage shutdown, to minimize energy loss and enhance battery protection.

Equipped with over-voltage protection, the BatteryProtect disconnects loads when the DC voltage exceeds safe levels. MOSFET switches ensure ignition-proof operation, removing the risk of sparks.

The BatteryProtect can also function as a remote switch, allowing you to turn on and off various devices remotely. This flexibility is particularly useful in situations where manual control of devices like external lighting or electronic gadgets is needed.

Featuring a delayed alarm output, the BatteryProtect ensures that starting the engine won't trigger a false alarm. It also offers intelligent load disconnect and reconnect, managing power effectively to maintain continuity.

Choose the Victron Battery Protect for efficient and reliable battery management, enhancing the performance and lifespan of your battery system in a variety of scenarios.

Orders will be sent via Australia Post in most instances. If the order cannot be sent via Australia Post (due to size, weight, etc) then a courier service will used. Delivery times vary by location. Orders will be dispatched from our Melbourne Warehouse within 1 business day.

Returns/Exchanges are accepted on all products for 30 days after purchase. Warranty time frames vary from product to product and will be honoured in line with the manufacturers warranty statements.

If an item arrives and is not as described or not in working order, please contact us through the messaging system and will arrange a refund or re-delivery (customer chooses). Incorrect/Faulty item must be returned to Solar 4 RVs. Postage costs will be covered by Solar 4 RVs.

Change of Mind returns will be accepted if the item is returned to Solar 4 RVs in ‘as new’ (including un-opened packaging) condition. Customer to cover postage costs to return the item. Customer can choose from refund (100% less postage) or exchange.

Warranty claims must come through Solar 4 RVs, not the manufacturer. If we require the item to be returned to us, postage will be at the buyers expense. If the warranty claim is approved, a replacement item will be dispatched free of charge.

Before initiating any returns, please contact Solar 4 RVs through the messaging system.

Victron Energy Limited Warranty Policy

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.

During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:
• Reverse of battery polarity.
• Inadequate connection.
• Mechanical shock or deformation.
• Contact with liquid or oxidation by condensation.
• Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...).
• Breakage or damage due to lightning.
• Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening.
• For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.

Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.

Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.

Life Support Policy
As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.

Warranty on Repairs
The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.

Transport
It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability
If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.

For Australia only
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
