Built-in with super HD DVR up to 720*576px resolution.
Diversity RaceBand 40ch Auto-Searching.
Two system (Display/recor d duo core separated chipsets ) ensure no delay in displaying and no frame lost in recording(please use C10 super speed card to ensure the full frame recording).
Work friendly with player-OSD, no blockage on the important flying OSD information.
Focal length adjustable design. Room for eye glasses. HD high brightness 3 inch LCD specially tuned for FPV racing.
Diversity function, Built-in super sensitive 5.8GHz 40ch receiver module, with Race band.
Advanced auto-searching function and the working frequency shows on screen.
Built-in 3.8V 2000mAh battery, each full charge offers 2.2 hours working time.
Wide range re-charge voltage 5-180V.
Accept 2S or 3S batteries as back-up power source.
Nice ergonomic design and fit different faces.
Super-wide visible angle up to 82 degree.
92% transparent lens adopted, no distortion and no blur on the edge of screen.
Light weight 320g with 2.2 hr 2000mAh battery, RTF for any scale racing game.
3 Inch 900*600px HD high brightness LCD.
Description :
Brand Name : EACHINE

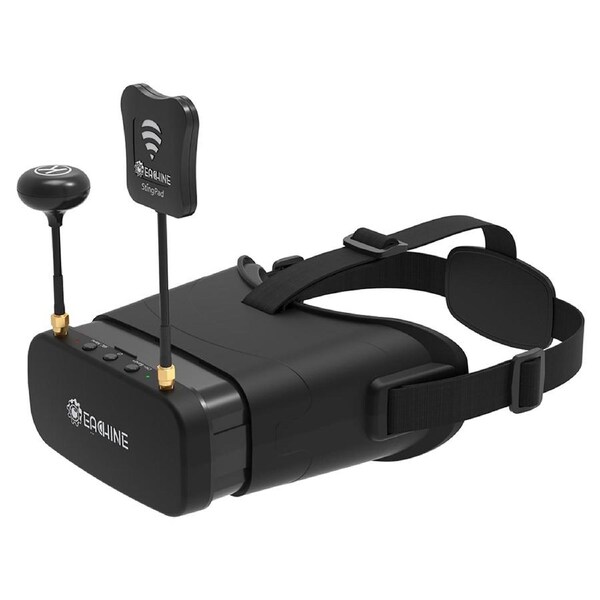

Item Name : EV800DM
| Appearance |
Dimension: 150*170*80mm Weight: 320g without antenna Belt : three-way adjustable belt |
| Specification |
Build in DVR Records up to 720*576px full frame rate video, no frame lost (C10 card required) Re play in MENU Require C10 card to record full frame rate |
| Diversity |
-90dB Super sensitiveness in 2pcs RX5808 PRO modules Great performance when two types (Linear and Omni) antennas are used |
| Display |
Screen size: 3.0 inch Screen resolution: 900*600(No blur after enlarge by the lens) Screen brightness: 600cd/m2 with special high brightness back light LED for outdoor FPV Ratio : 4:3 View Angle: 140/120 degree(Horizontal/Vertical) |
| Lens |
3x boost of the video to acquire intense feel-in-there video; 92% transparent rate distort if light; |
| Varifocal |
20mm focal length adjustable; Multi stop points design for vertical individual user adjust; For more users with different eyesight |
| Glasses Fit |
Fit for wear with glasses; Glasses Fit Size; 140mm*40mm; Focal length need to be reset when wear glasses |
| Battery |
Built-in 3.8V/2000mAh battery; Each battery circle offer around 2.2hr working time; 5-18V wide range recharging voltage range, typical recharging with 5V/2A Charger : 5V, 2A, DC 2.5mm 2S (7.4 V) /3S(11.1V) battery as back-up power t to have long working time. |
Frequencies (5.8GHz, with RaceBand)
| CH | CH 1 | CH 2 | CH 3 | CH 4 | CH 5 | CH 6 | CH 7 | CH 8 |
| GROUP | ||||||||
| A or FR1 | 5865 MHZ | 5845 MHZ | 5825 MHZ | 5805 MHZ | 5785 MHZ | 5765 MHZ | 5745 MHZ | 5725 MHZ |
| B or FR2 | 5733 MHZ | 5752 MHZ | 5771 MHZ | 5790 MHZ | 5809 MHZ | 5828 MHZ | 5847 MHZ | 5866 MHZ |
| C or FR3 | 5705 MHZ | 5685 MHZ | 5665 MHZ | 5645 MHZ | 5885 MHZ | 5905 MHZ | 5925 MHZ | 5945 MHZ |
| D or FR4 | 5740 MHZ | 5760 MHZ | 5780 MHZ | 5800 MHZ | 5820 MHZ | 5840 MHZ | 5860 MHZ | 5880 MHZ |
| R or FR5 | 5658 MHZ | 5695 MHZ | 5732 MHZ | 5769 MHZ | 5806 MHZ | 5843 MHZ | 5880 MHZ | 5917 MHZ |
Package Includes :
1 x EV800DM 40CH 5.8G Varifocal FPV Diversity Goggles with DVR
1 x Clover Antenna
1 x Panel Antenna
1 x Battery Charger
1 x USB Power Charging Cable
1 x AV In/Out cable
1 x User Manual
