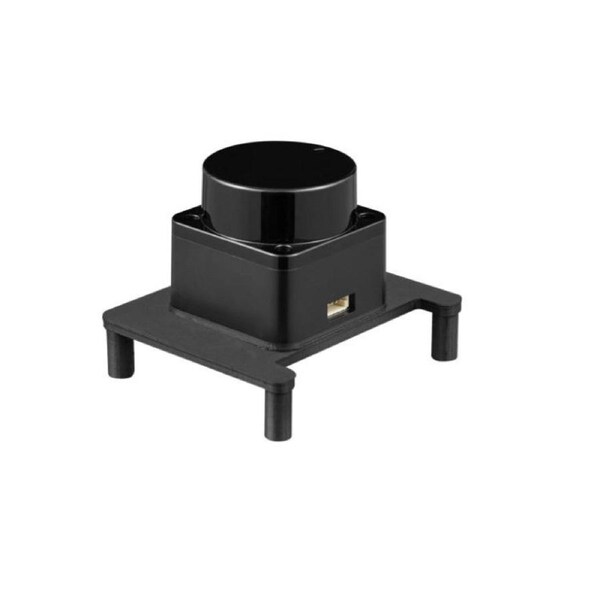

Okdo Lidar Module with Bracket Development Kit for LiDAR_LD06 Raspberry Pi / Rock Pi SBC

The LiDAR LD06 has adopted TOF (time of flight) ranging technology and can measure distance according to the laser pulse time of flight within a detection distance of 12 metres.
The LD06 uses first class algorithm logic to achieve 360 degrees environmental detection, autonomous map building and obstacle detection.
With high-speed wireless data transmission and brushless motors, the LD06 can last for up to 10000 hours.
The LD06 can achieve high-frequency and high-precision distance measurement and accurate map building indoors and outdoors.
The LD06 is fully compatible with Raspberry Pi3 A+/B+, Raspberry Pi3 B and Raspberry Pi 4B

Specifications:
Distance measuring range: 0.02mm - 12m
Scanning Frequency: 5-13 Hz
Ranging accuracy: 30mm
Ranging frequency: 4500Hz
Scanning Angle: 360 degrees
Size: 38 x 38 x 33 mm

Specifications

Datasheet
